Item No.:
TMAX-4CCertificate:
CE CertifiedWarranty:

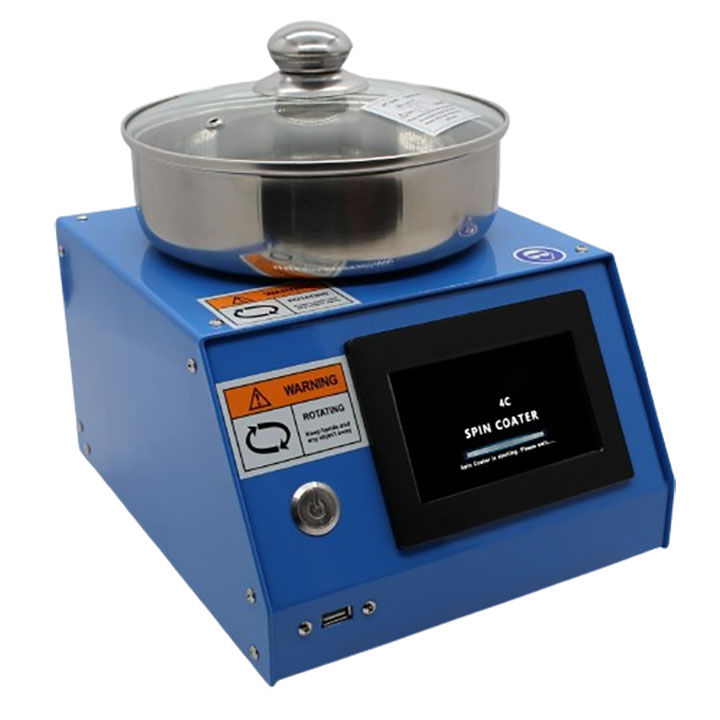

1 Year limited warranty with lifetime supportLab 4.3Inch Touch Screen Vacuum Spin Coating Machine with Vacuum Chunk Used in Glove Box
Key Features:
1. Anti-flying protection and alarm
2. Anti-glue protection and alarm
3. Real-time monitoring of adsorption force, alarm if adsorption force is insufficient, prohibit starting if adsorption force is insufficient, stop immediately if adsorption force is insufficient
4. The motor can rotate forward and reversely
5. Formula with power-offprotection function
6. Adjustable acceleration (acceleration:10-10000RPM/S, speed range: 50-10000RPM)
7. With communication interface: USB, external mouse and keyboard, transfer recipes through U disk.
Spin Coater Specifications
Substrate size |
5mm to 150mm( 6 inches) |
Speed range |
50- 10000RPM |
Acceleration range |
10- 10000RPM/S, Adjustable |
Motor speed stability |
±1RPM |
Spin coating uniformity |
±1% |
Human machine interface |
4.3 inch touch screen |
Communication interface |
can be connected to the wireless mouse and keyboard: the machine can be placed in the glove |
Turn around |
Can rotate forward and reverse |
Stylus |
Stylus BAMBOO resistance pen (standard) |
Vacuum Pump |
SC-550V |
Set data |
Unlimited group data, each group of 10 speeds (standard) |
Seconds per period |
0- 10000s |
Storage data |
Unlimited data |
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
Pumping speed |
≥60L/MIN |
Max vacuum |
-85KPA |
Sound Level |
≤55db |
Spin coater power |
200W |
Pump power |
350W |
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
Weight(Spin Coater) |
10KG |
Weight(Pump) |
9KG |
Relative humidity |
< 85% |
Ambient temperature |
0-40℃ |
Warranty |
1 year |
