High Speed Laser Etching Machine for Solar Cell Fabrication Line

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

Item No.:
TMAX-KT-PZ500
Certificate:
CE Certified
Warranty:
1 Year limited warranty with lifetime support

Product Details

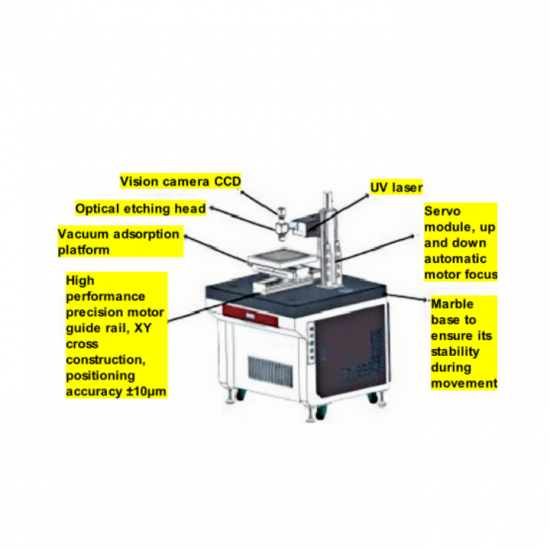

High Speed Laser Etching Machine for Solar Cell Fabrication Line

Alias: Laser etching machine, marking machine

Model: KT-PZ150/300 series

Features: Fast etching speed, high precision, high precision CCD, Mark positioning, no consumables, low energy consumption, wide applicability, stable beam quality.

Application: Perovskite batteries, germanium gallium arsenide and other materials laser etching marking

Processing size: Max150*150mm or Max300*300mm

Positioning and capturing method: The servo module moves the Mark position to the field of view of the CCD camera, locates and captures the Mark, and then corrects and locates the corresponding graph through the software algorithm.

Technical parameter

	Laser power
Wave length	1064nm
Life span	100,000 hours
Software support	Dedicated software, Autocad, Coreldraw, Photoshop and other software formats are compatible.
Frequency range	20-80KHz
Maximum etching size	100mm~150mm
Minimum line width	< 0.02mm
Overall size	300460700mm
Carton size	600270600mm
Other configuration	Touch screen computer, invisible keyboard and mouse, free warranty for one year.
Gift	One suitcase, several conductive glasses
