Perovskite Solar Cell Research Equipment Line

Lab 400C Small Heating Table with Aluminum Alloy Plated Ceramic Panel

Lab 400C Small Heating Table with Aluminum Alloy Plated Ceramic Panel

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

  • Item No.:

    TMAX-JW-400DG
  • Certificate:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
Product Details

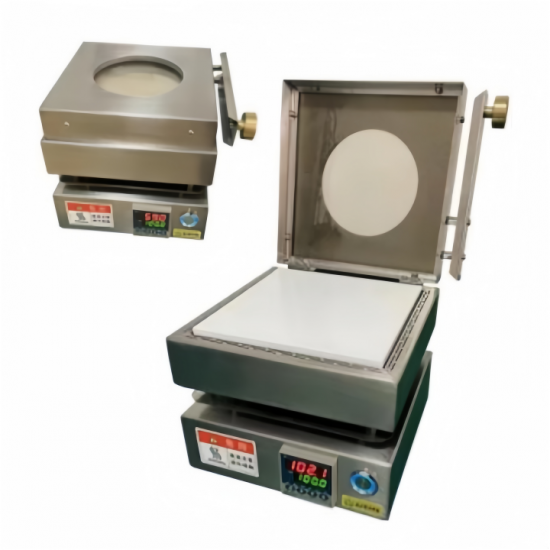

Lab 400C Small Heating Table with Aluminum Alloy Plated Ceramic Panel




Product characteristics

a. Small enough to fit in the glove box

b. The heating is rapid, stable and reliable, and the separation design of the heat recovery part and the control part ensures safety

c. Operating temperature is room temperature -400C, program temperature control, linear gradient or platform temperature control can be built in the program.

d. The heating panel has good uniformity, high temperature control precision, easy deformation, corrosion resistance, and has the advantages of rapid heating and accurate temperature control.

e. Hot table cover with heat preservation and dust prevention, and transparent glass window for easy observation (diameter 110mm)



Technical parameter

Heating table material

Aluminum alloy plated ceramic panel

Temperature control range

Room temperature -400C

Product size

195X195X182(mm)

Heating zone

160X160(mm)

Height of space inside cover

27mm

Temperature control accuracy

±1%℃

Panel temperature uniformity

±1% ℃

Time setting

1 min to 999.9 min

Temperature control mode

30 segments linear or platform temperature control

Power input

220V 500W

Temperature resolution

0.1 ℃
