Item No.:
TMAX-PMF-PPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
One year limited warranty with lifetime technical support
151-200mm Lab Splicing Square Rectangular Punch Hydraulic Press Die Alloy Tool Steel Mold
Parameter
|
Model |
TMAX-PMF-P |
|
Compressed sample shape |
|
|
Mold material |
Alloy tool steel: Cr12MoV |
|
Indenter hardness |
HRC60-HRC62 |
|
Sample size |
Long side 151-200mm(M) |
|
Cavity depth |
60mm(N) |
|
Dimensions |
220*160mm (L*H) |
|
Mold weight |
45kg-80kg |
|
Dimension diagram |
|

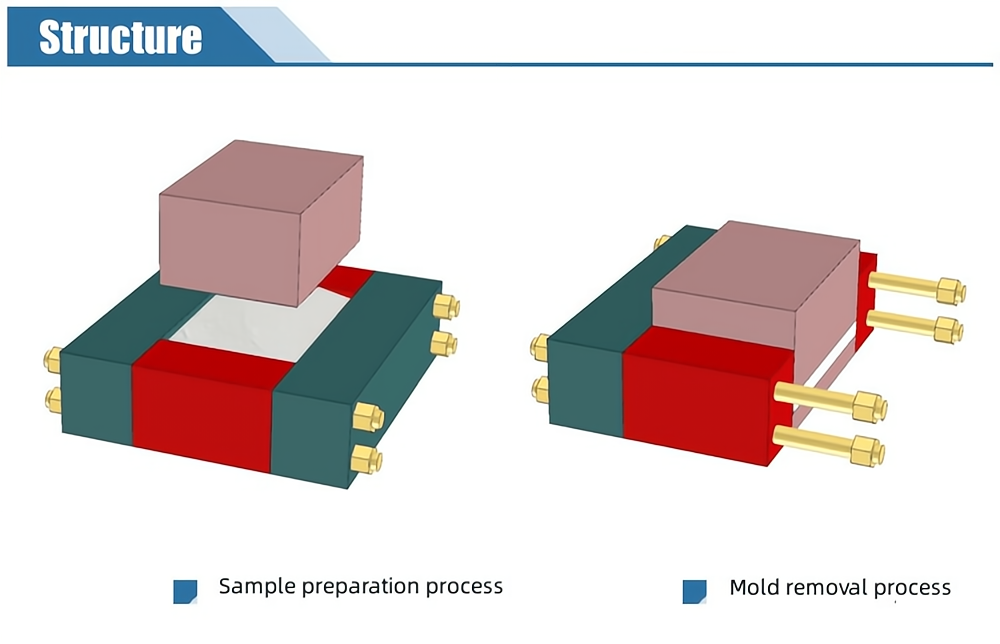

Schematic Diagram of Mold Operation

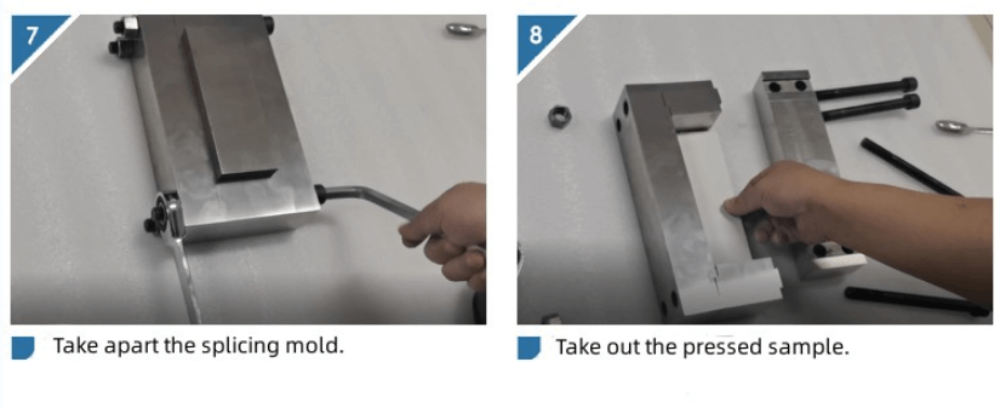

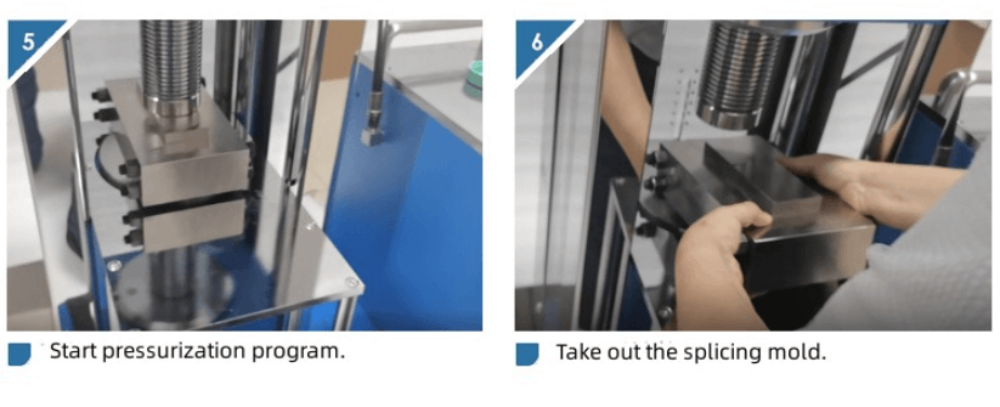

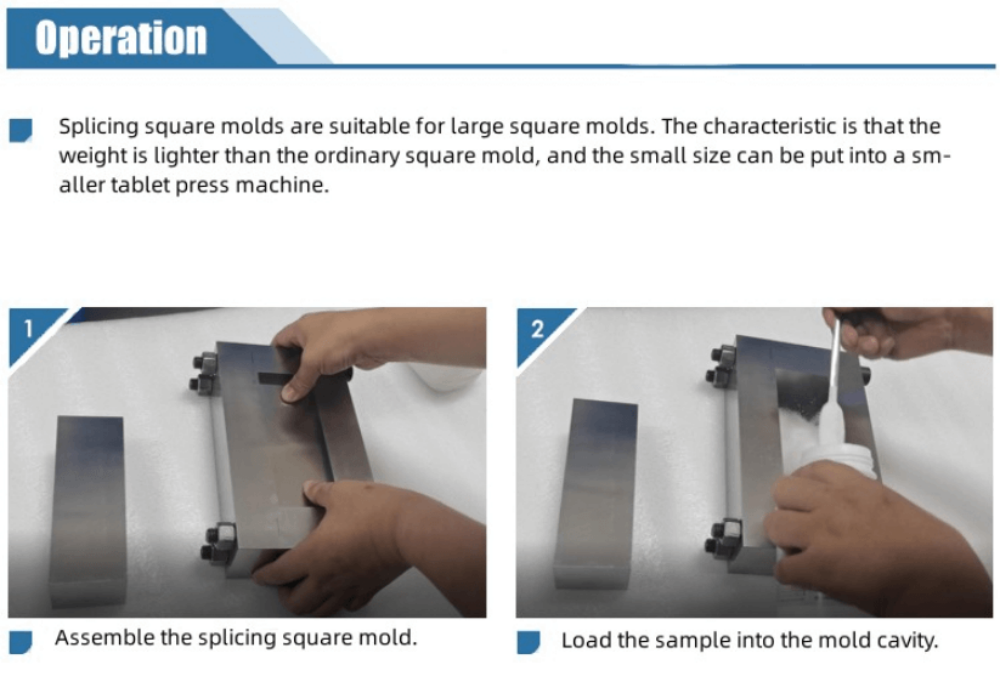

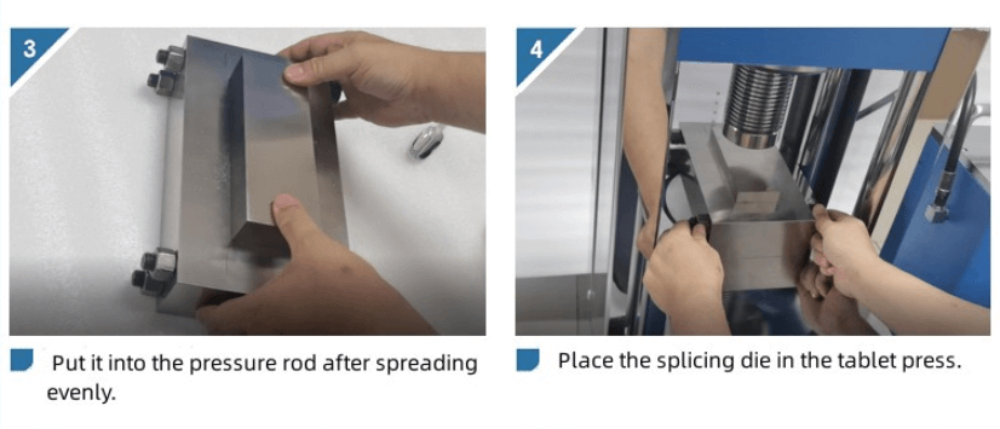

Mold sample preparation operation steps

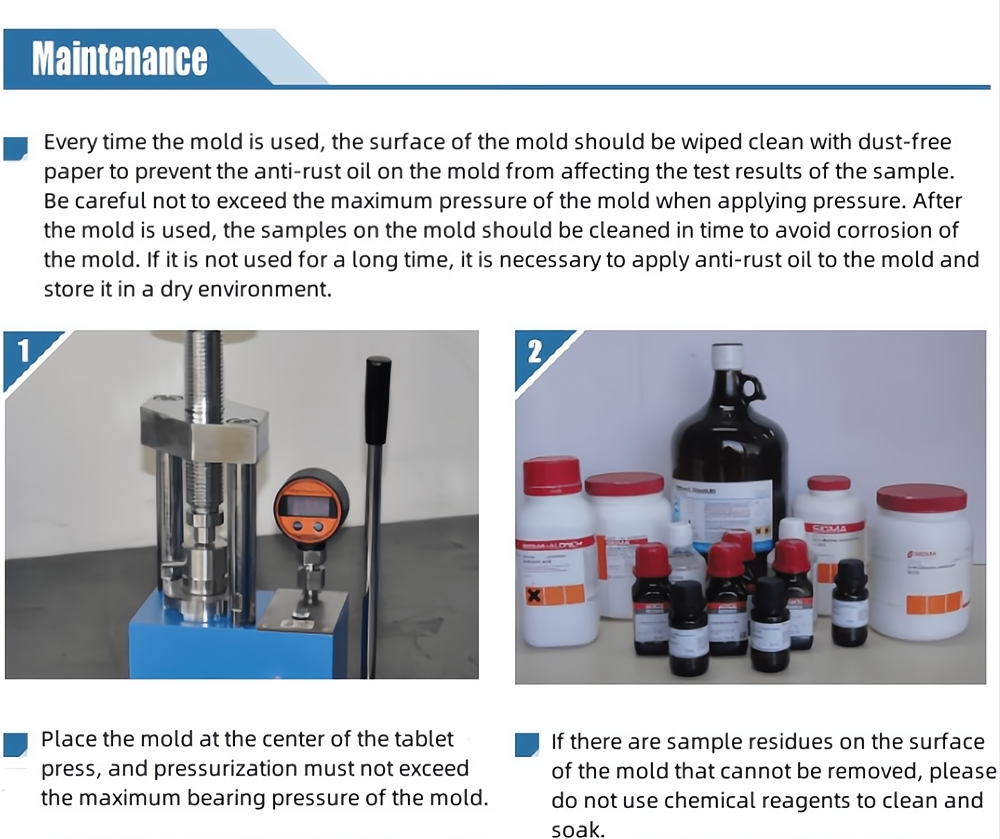

Mold use and maintenance
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
