3T 5T 12T 15T Lab Small Manual Hydraulic Press

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-SYP
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

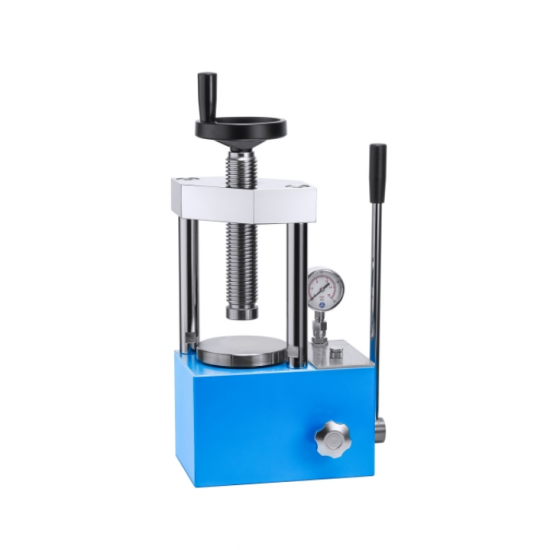

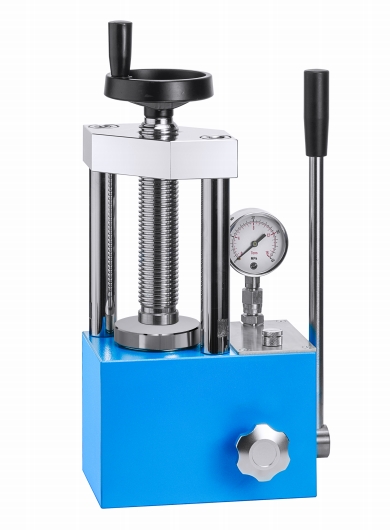

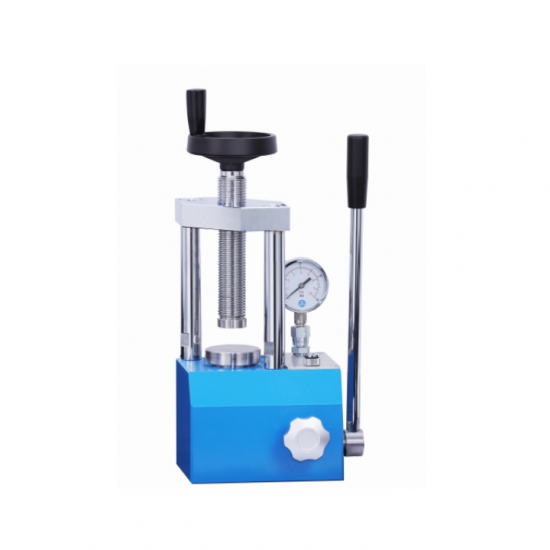

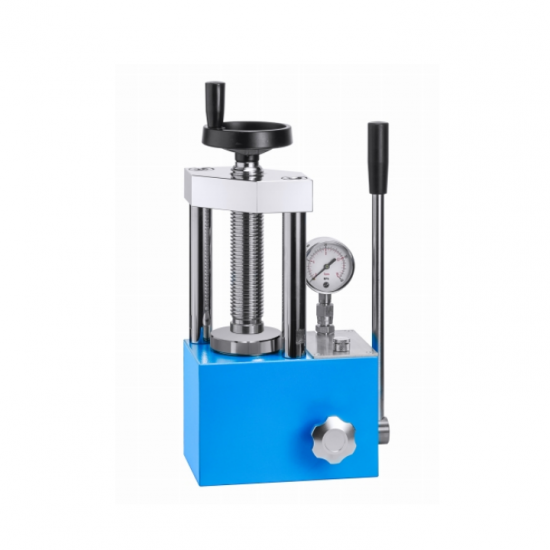

3T 5T 12T 15T Lab Small Manual Hydraulic Press

Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.

It can also be used with Ca-Fe analyzer, infrared spectroscopy (IR) analyzer and X-ray fluorescence (XRF) analyzer to analyze the pressed samples.

1.Small size, light weight,No oil linkage, easy to carry.

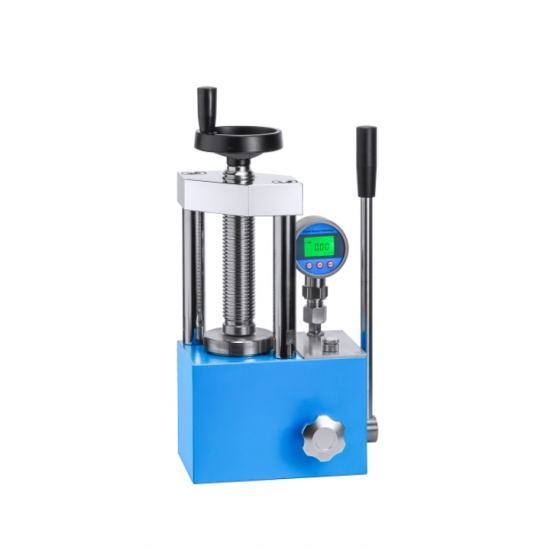

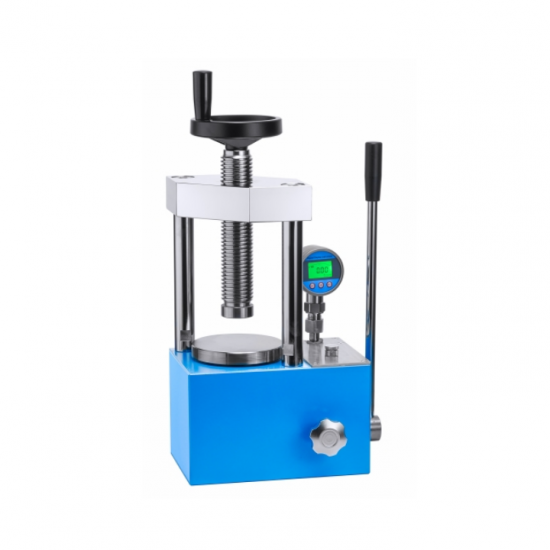

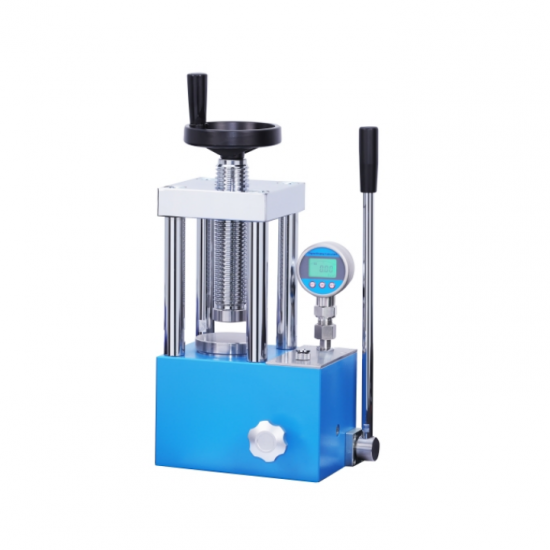

2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.

3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.

Specification

Model	SYP-3T	SYP-5T	SYP-12T	SYP-15TB	SYP-15TA
Pressure range	0-3T (0-28.8MPa)	0-5T (0-31.4MPa)	0-12T(0-30MPa)	0-15T(0-30MPa)
Piston diameter	φ35mm	φ45mm	φ70mm	φ80mm
Analog pressure gauge	Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton
Digital pressure gauge (optional)	Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with "s" type)
Maximum piston stroke	30mm
Pressurization mode	Manual pressurization / manual slow pressurization
Pressure stability	≤1MPa/10min
Overall structure	Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point
Diameter of worktable	φ80mm			φ90mm
Number of columns	2 columns			2columns	4 columns
Working space (W×H)	96×130mm		96×130mm)	140×150mm	80×130mm
Machine dimensions (L×W×H)	225×155×380mm		225×155×380mm	245×175×390mm	245×175×390mm
Machine weight	28kg		28kg	38kg	40kg

Model	SYP-24T	SYP-30T	SYP-40T	SYP-60T
Pressure range	0-24T(0-34MPa)	0-30T(0-31.5MPa)	0-40T(0-30MPa)	0-60T(0-34MPa)
Piston diameter	φ95mm	φ110mm	φ130mm	φ150mm
Analog pressure gauge	Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton
Digital pressure gauge (optional)	Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with "s" type)
Maximum piston stroke	30mm	40mm	50mm	50mm
Pressurization mode	Manual pressurization / manual slow pressurization
Pressure stability	≤1MPa/10min
Overall structure	Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point
Diameter of worktable	φ105mm	φ120mm	φ140	φ160mm
Number of columns	4 columns
Working space (W×H)	80×150mm	92×160mm	115×185mm	185×250mm
Machine dimensions (L×W×H)	245×175×415mm	275×195×420mm	295×215×500mm	405×240×565mm
Machine weight	42kg	56kg	75kg	120kg
