20T 30T 40T Lab Electric Hydraulic Press for Powder Pressing

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-DYP
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

20T 30T 40T Lab Electric Hydraulic Press for Powder Pressing

Electric powder press is widely used in new materials, superconductivity, powder ceramics, new power supply, batteries, building materials, metallurgy powder and other fields. It can be used with ferrocalcium analysis, infrared spectroscopy (IR), X-ray fluorescence (XRF) analysis instruments. The machine is compact in structure, light in weight, fast in pressure rise, simple in operation, safe and convenient. Potassium bromide (KBr), sodium chloride (Na CL), cement and other powder materials are pressed into a variety of test pieces, columns, special shapes or combinations for analysis and research; at the same time, the machine is also suitable for other work occasions requiring corresponding pressure, as a press, to test the compressive strength of various objects.

Specification

Model	DYP-20T	DYP-30T	DYP-40T
Pressure range	0-20T(0-28MPa)	0-30T(0-31.5MPa)	0-40T(0-30MPa)
Piston diameter (Chrome plated cylinder)	φ95mm	φ110mm	φ130mm
Maximum piston stroke	30mm	40mm	50mm
Pressure gauge	Digital display, range 0.0-40.0mpa, accuracy 0.1MPa
Pressure stability	≤1MPa/10min
Pressurization mode	Electric / manual pressurization
Pressure compensation mode	Automatic pressure supplement / manual pressure supplement / manual slow pressure increase
Overall structure	Integrated patented technology, equipment without sealing connection, reduce oil leakage point
Protective cover	Optional
Device power supply	220V(50Hz/60Hz)
Diameter of worktable	φ105mm	φ120mm	φ140mm
working space	80×150mm	92×160mm	115×185mm
Outline size	245×415×415mm	275×430×420mm	295×450×500mm
Instrument weight	58kg	72kg	92kg
Remarks	If you need extra mould, please contact the sales manager for further quote The work space can be customized to increase the height

Product Images

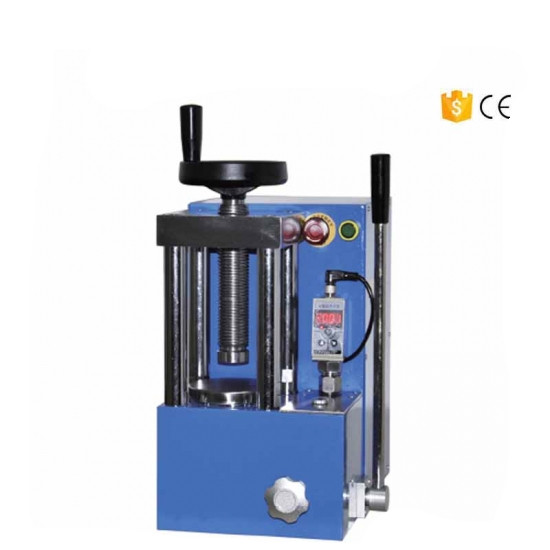

electric press machine

Conversion

Actual pressure	System pressure	Double display pressure gauge
1[Tons]	1.05[MPa]
2[Tons]	3.1[MPa]
5[Tons]	5.2[MPa]
8[Tons]	8.4[MPa]
10[Tons]	10.5[MPa]
15[Tons]	15.7[MPa]
20[Tons]	21[MPa]
25[Tons]	26.3[MPa]
30[Tons]	31.5[MPa]
