Lab Φ101-150mm Ordinary Cylindrical Hydraulic Pressing Die Mold

Lab Φ101-150mm Ordinary Cylindrical Hydraulic Pressing Die Mold

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-PMY-G
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

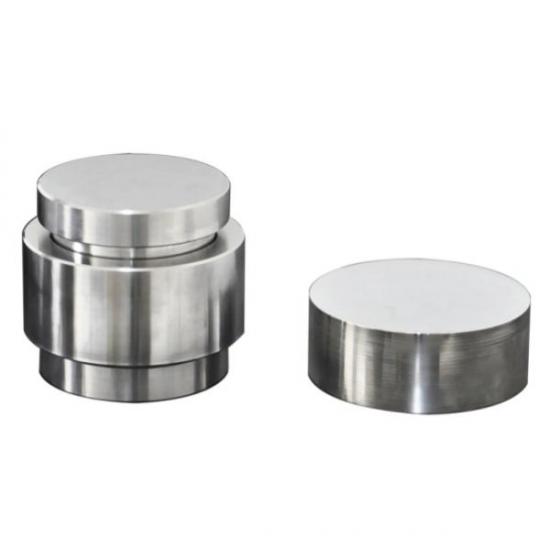

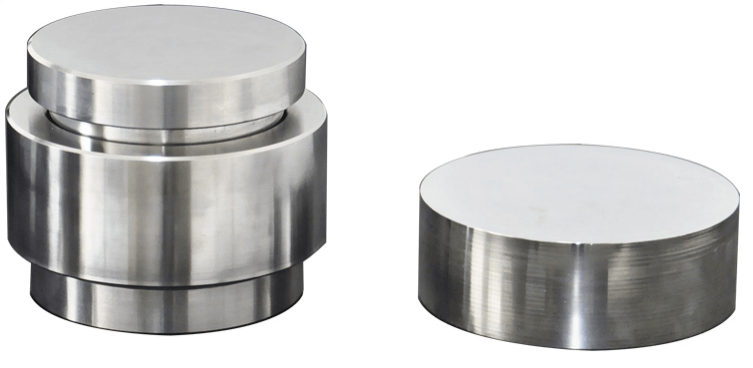

Lab Φ101-150mm Ordinary Cylindrical Hydraulic Pressing Die Mold



Hydraulic Pressing Die


Parameter

Model

TMAX-PMY-G



Compressed sample shape

Hydraulic Pressing Die

Mold material

Alloy tool steel:Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ120Φ150mm(M)

Cavity depth

65mm(N)

Dimensions

Φ168*180、Φ218*180mm(L*H)

Mold weight

30kg、40kg






Dimension diagram

Hydraulic Pressing Die

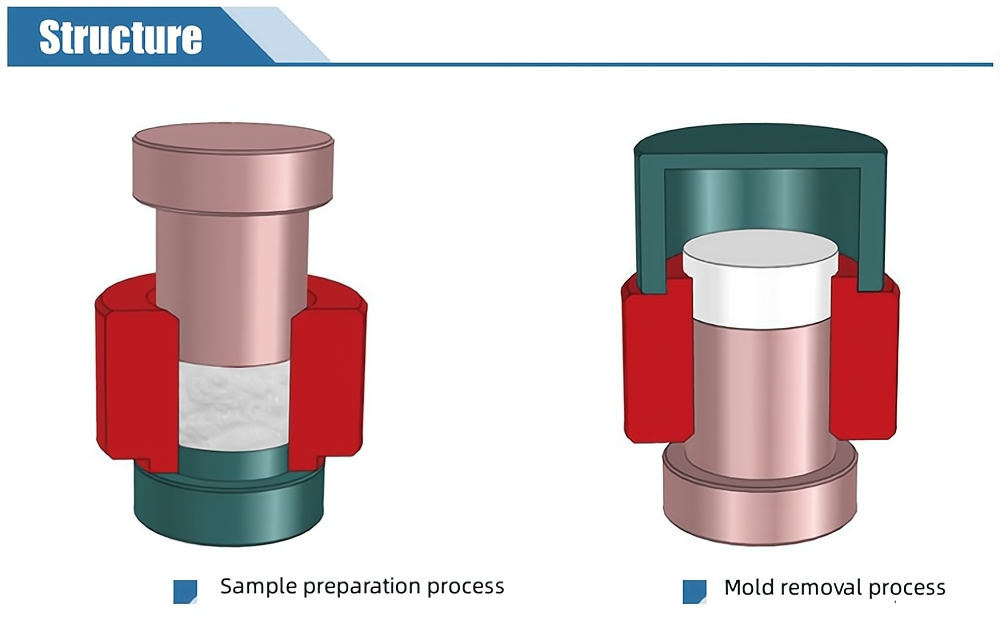

Schematic Diagram of Mold Operation

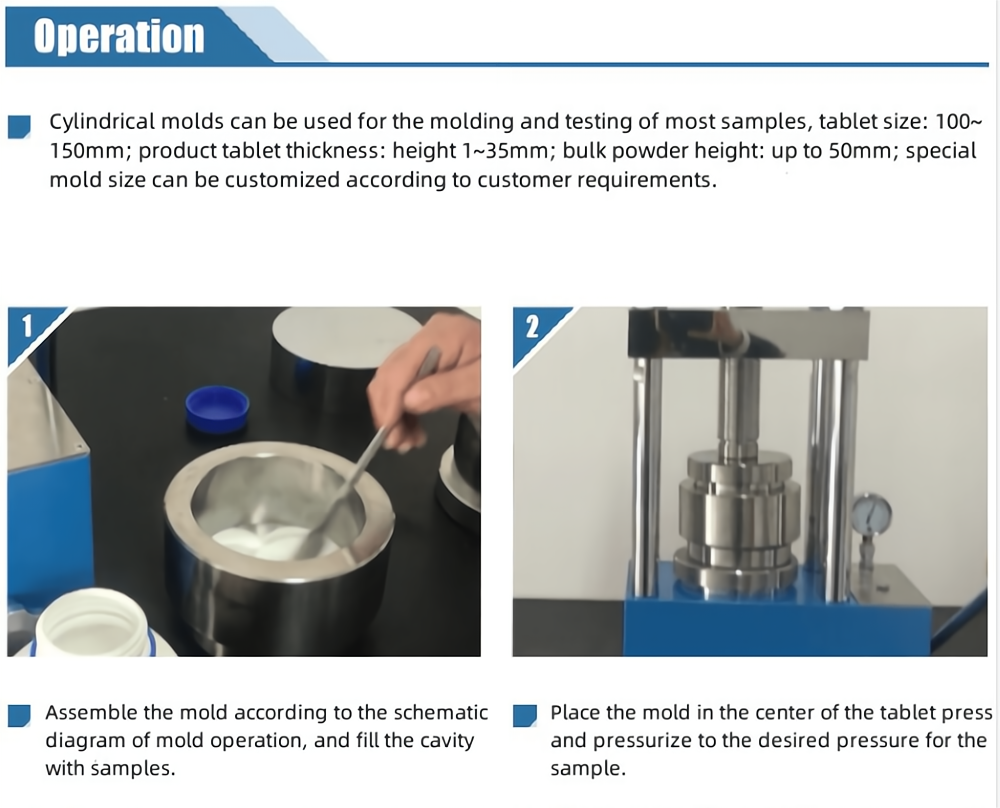

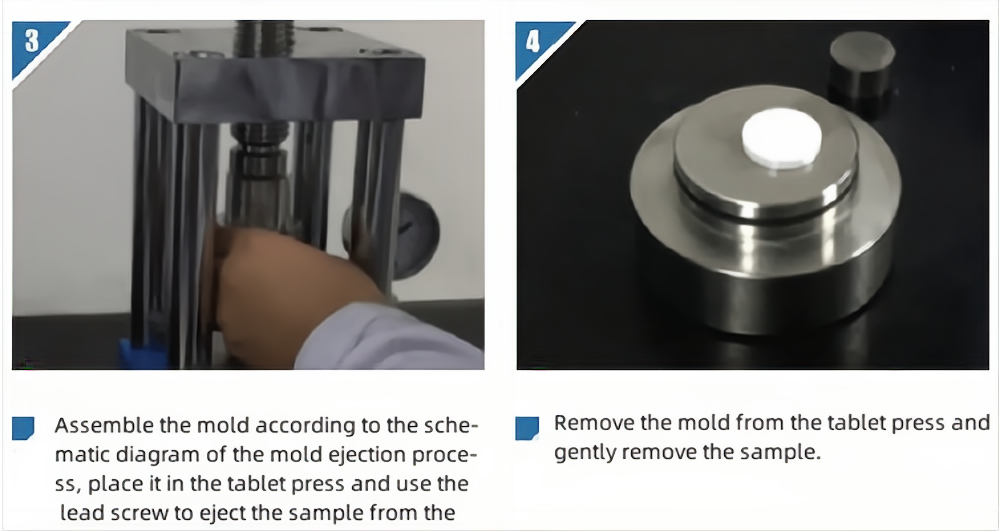

Mold sample preparation operation steps

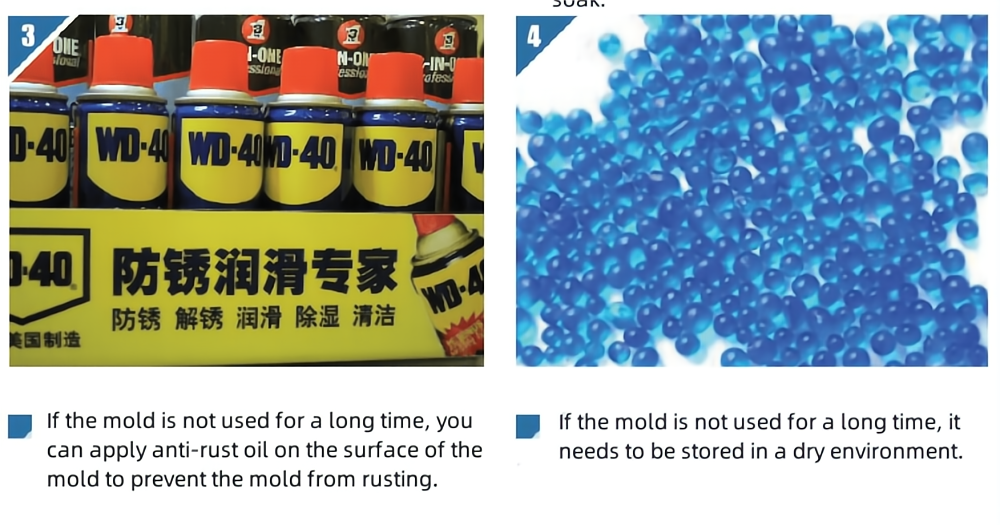

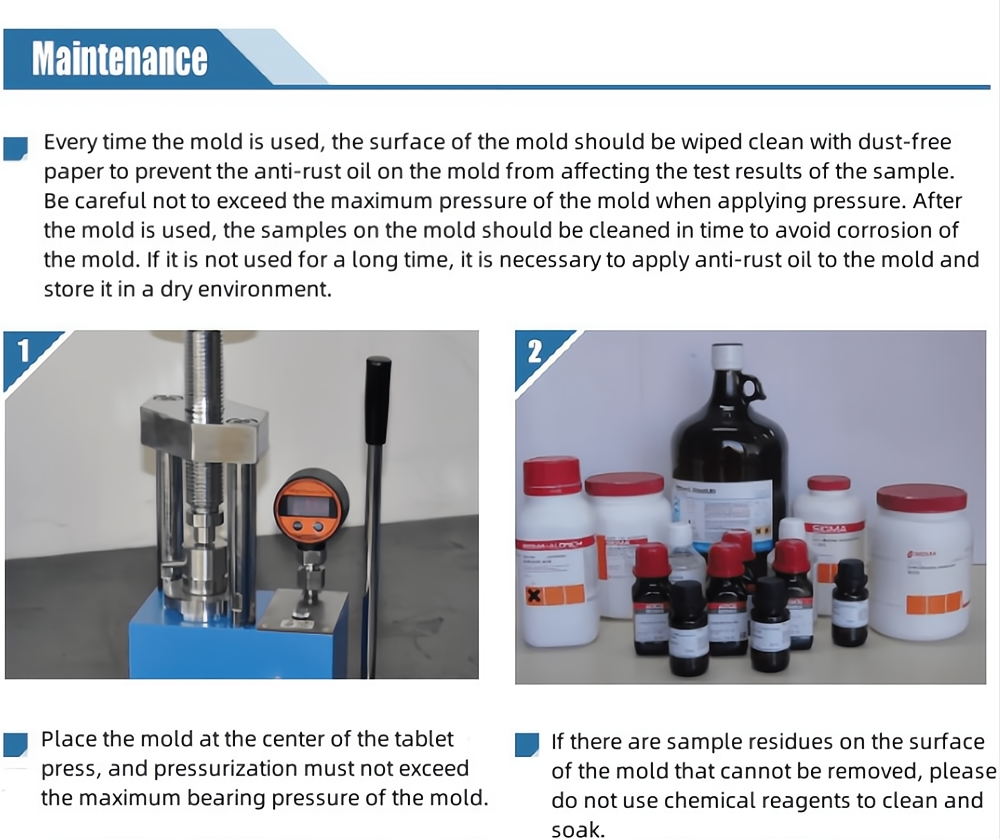

Mold use and maintenance


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
