Lab Carbide Non-receding Infrared Special Punch Press Die

Lab Carbide Non-receding Infrared Special Punch Press Die

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-PMH-A
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

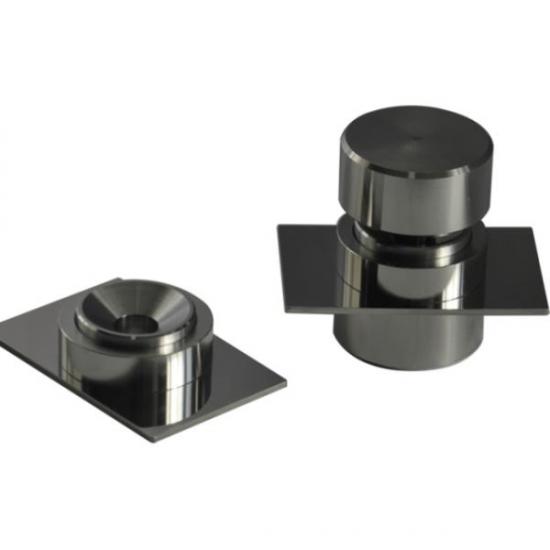

Lab Carbide Non-receding Infrared Special Punch Press Die




Lab Infrared Press Die


Parameter

Model

TMAX-PMH-A

Compressed sample shape



Mold material

Carbide YT15

Indenter hardness

HRC85-HRC90

Sample size

Φ 13 mm (M)

Cavity depth

10mm(N)

Dimensions

76*50*70mm(L*W*H)

Mold weight

0.75 kg







Dimension diagram

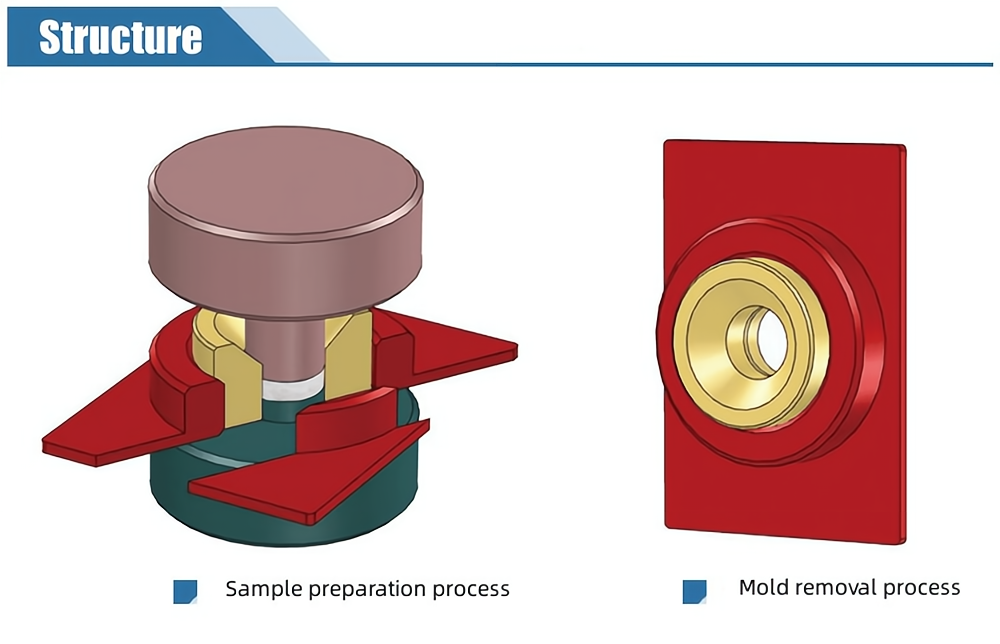

Schematic Diagram of Mold Operation

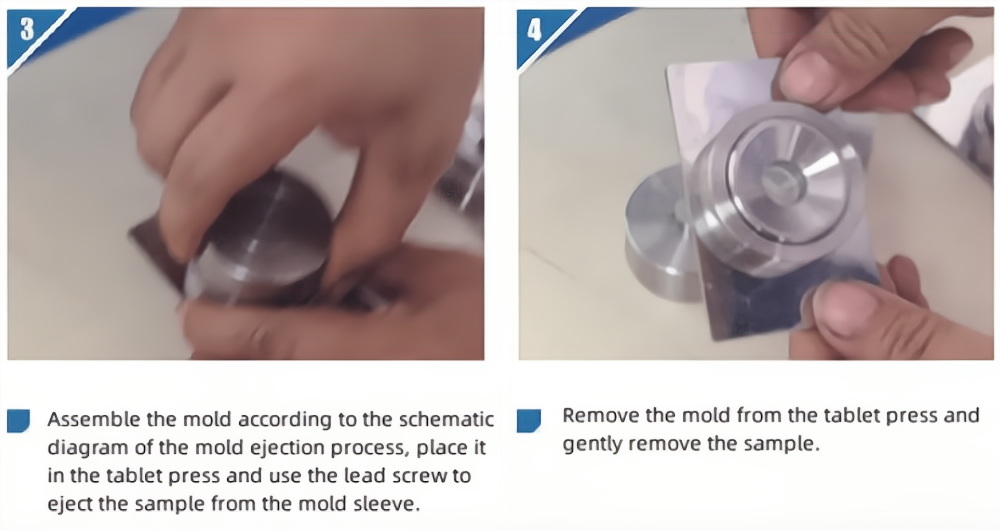

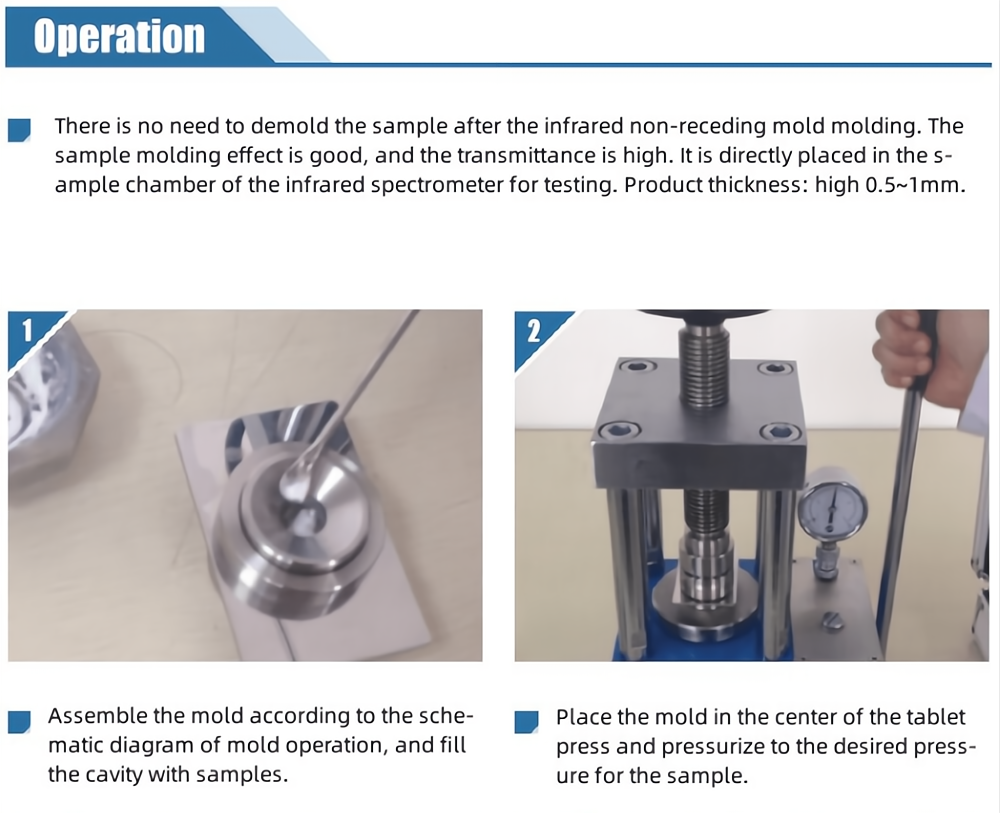

Mold sample preparation operation steps

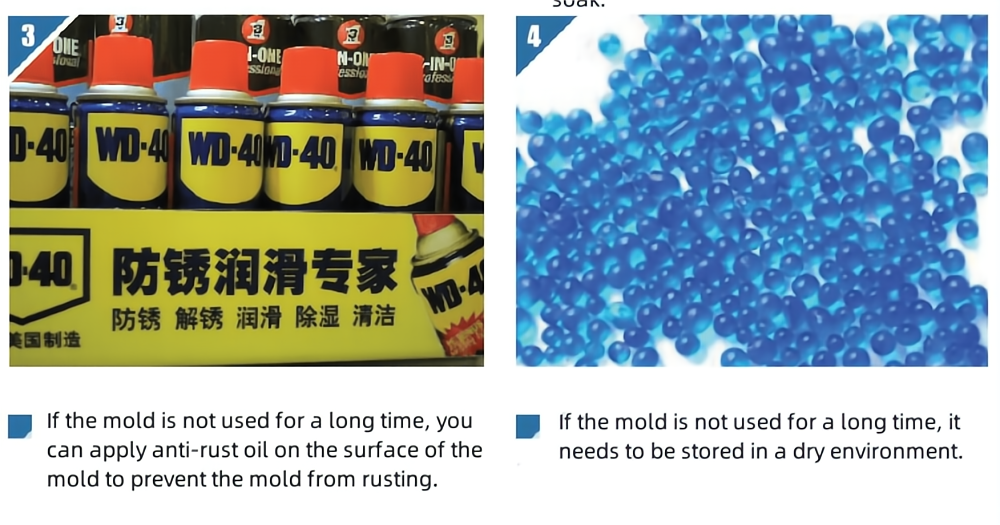

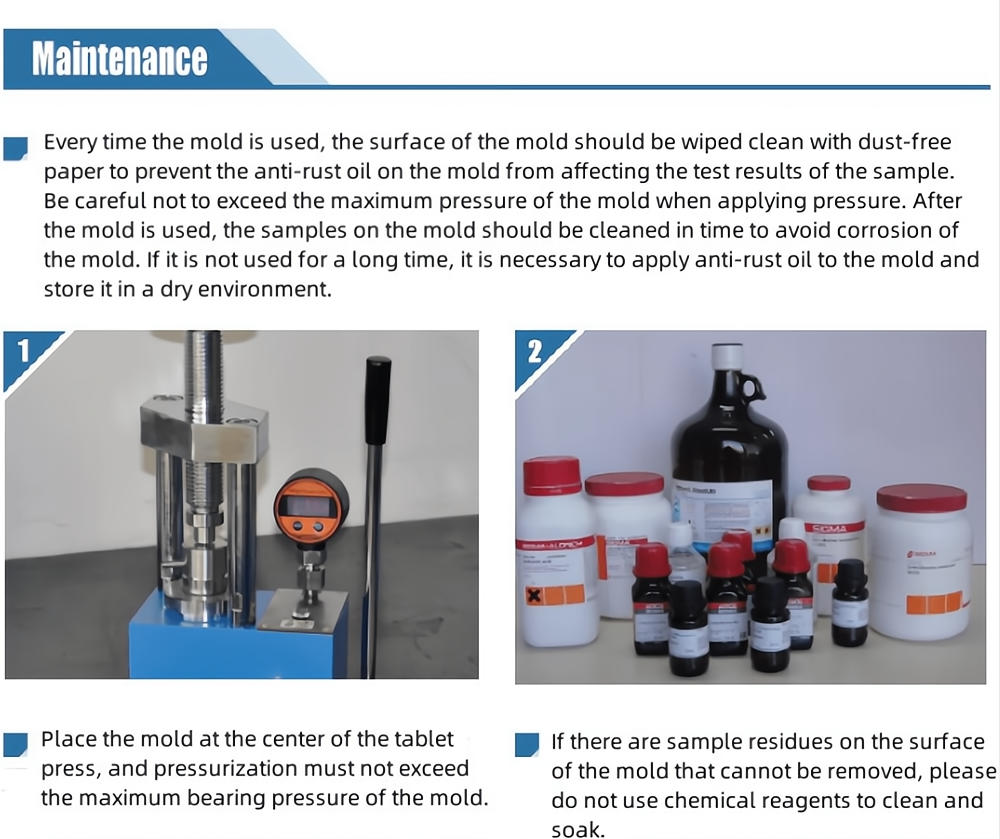

Mold use and maintenance


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
