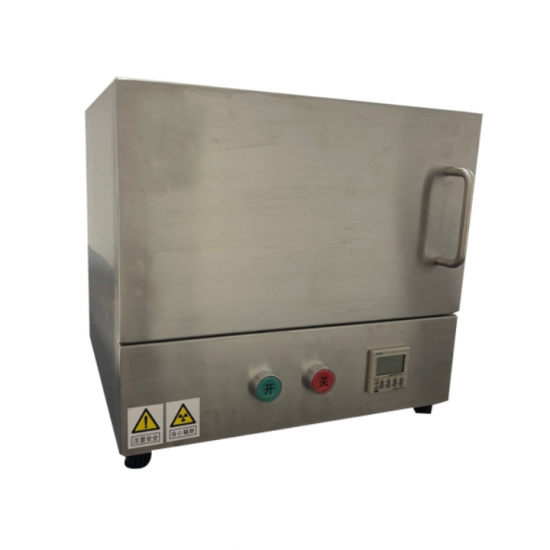

1 Year limited warranty with lifetime supportTable Type Stainless Steel Ultraviolet Ozone Cleaner Machine
Product introduction
a. Structure: Drawer type design, multi-level distance adjustment, to meet different cleaning requirements.
b. Material: Stainless steel material, acid and alkali resistant, corrosion resistant, beautiful and generous.
c. The internal exhaust system can quickly discharge ozone and reduce the harm to the human body.
d. Widely used in perovskite solar cells, OPV,OLED,LCD, substrate, silicon, metal sheet surface organic cleaning and surface modification.
Technical parameter
|
Lamp tube |
German lamp (imported quartz material), life > 8000 hours |
|
Power |
200W |
|
Operating spectrum |
185nm+254nm |
|
Effective area |
200*200mm |
|
Cleaning time control |
0-99min99s, automatic countdown |
|
Irradiation height |
30-100mm, pull and insert |
|
Exhaust function |
Air extraction system quickly eliminates harmful gases |
|
Distance from lamp 3-5mm |
The average light intensity is 25-32MW /cm² |
|
Equipment size |
Length * width * height =380*340*330 |
|
Equipment weight |
About 15Kg |
