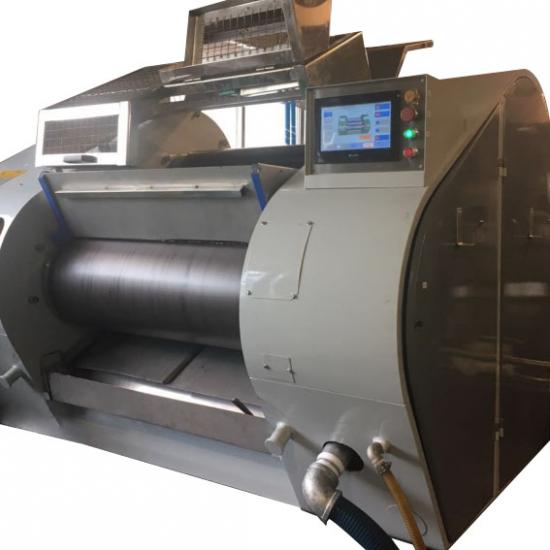

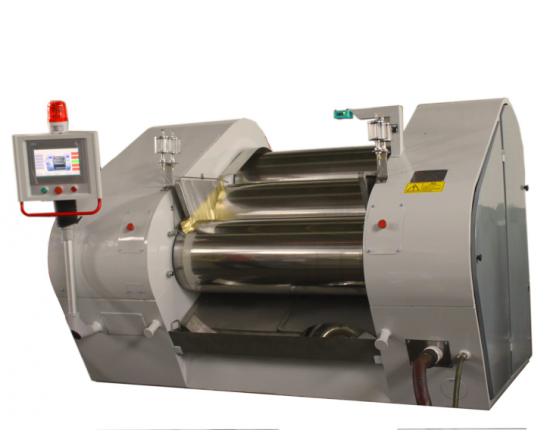

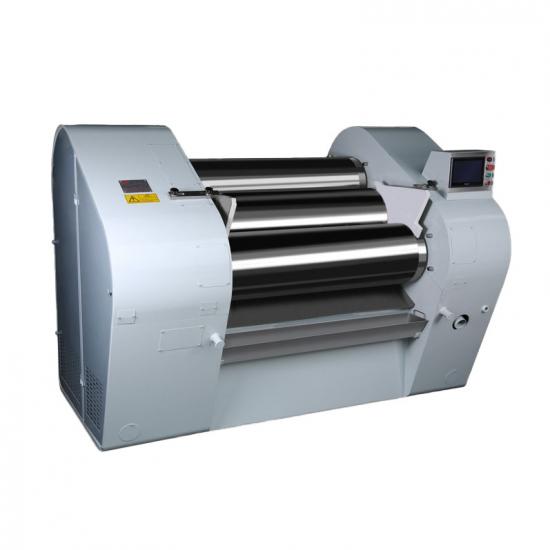

SYS Digital Control Three Roll Mill with PLC control and Cooling System

SYS400- a three roll mill designed with PLC control for universal applications and for meeting the most stringent quality standards. Convenient, easy operation, handy design and easy to clean. Versatile machine for low to high viscosity masses, e.g. all types of printing inks, artists’ colors, industrial and decorative paints, toners, coating masses, etc., applied also to products from the fields of electronics, cosmetics and pharmaceuticals.



Each of the three rolls is equipped with an individually adjustable high-efficiency cooling system. Automatic, precise control ensures constant roll temperatures and thereby uniform, reproducible operating conditions. The cooling water supply is automatically stopped when the machine is not running. This prevents undesirable cooling of the rolls and unnecessary water consumption. The hydro-dynamic roll pressing system guarantees high throughput and permanently stable, reproducible pres-sures in the roll gap. Three roll operating positions can be selected:

1. Pressing: Working position for the grinding and dispersion

2. Mixing: Intake gap is pressed for intermixing the material

3. Disengagement: Rolls are disengaged for cleaning



An adjustment mechanism allows a defined roll gap to be set. This permits the processing of short, dilute and low-viscosity products.

TECHNICAL SPECIFICATION

Model	Roller dia. mm	Roller length mm	Slow roll rpm	Mid roll rpm	Fast roll rpm	Motor kw	Pressure Mpa	Pump kw	Weight kg
SYS400-800	400	800	31	122	400	30	≤6.17	1.5	4500
SYS400-1000	400	1000	31	122	400	37	≤6.17	1.5	5000
SYS400-1300	400	1300	31	122	400	55	≤6.17	1.5	5280
