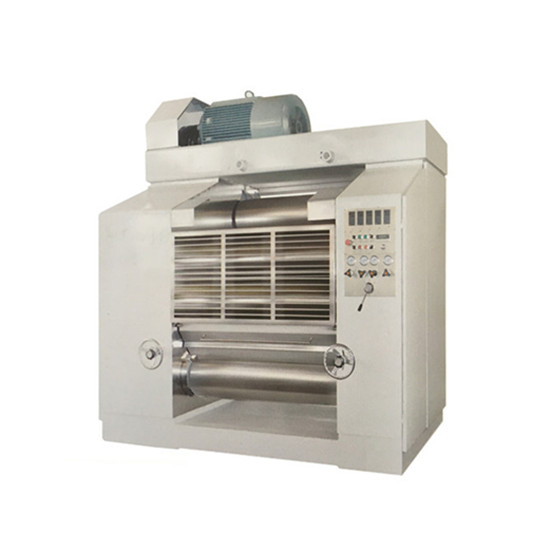

Roller Working Length 1300mm, Hydraulic Superfine Five Roller Mill for Pulp Refining, Dispersion And Grinding

Overview

FYS hydraulic five roller mill is new-designed equipment for pulp refining, dispersion and grinding. Material are fed between the first and second roll and discharged from the fifth roll after passing several rolls. Tilting arrangement of the rolls make the machine have more internal space. Hydraulic system of the rolls adopt “floating roller system”which is a quite mature technology of our company. Customized PLC touch screen promotes the automation level of equipment, and also the data, formula can be stored as parameters.

Features

●Advanced hydraulic system ensures the stability of the system.
●Siemens PLC system makes product control more accurate(optional)
●Super cooling system and automatic temperature control(optional)
●Multiple systems of safety monitoring and protection.

Model	FYS400
Roller diam(mm)	400
Length of roller working face(mm)	1300
Roller speed(r/min)	400
Power(KW)	55~75
Output(kg/h)	500
Total pressure of hydraulic system T(Mpa)	6.3
Hydraulic power(KW)	2.2
Overall weight(kg)	6500
Boundary dimensionL×W×H（mm）	2800*1400*2500

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
