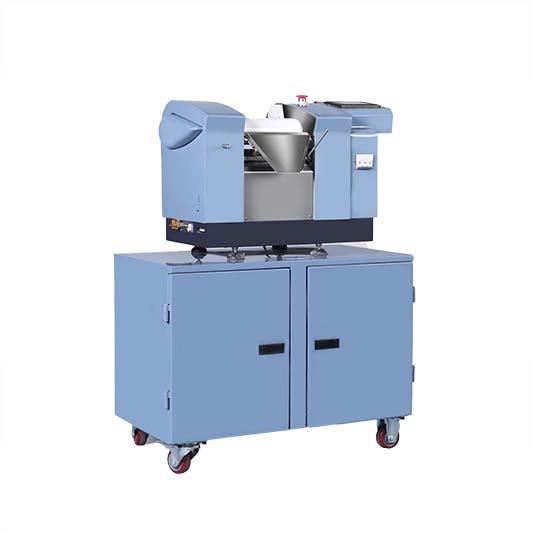

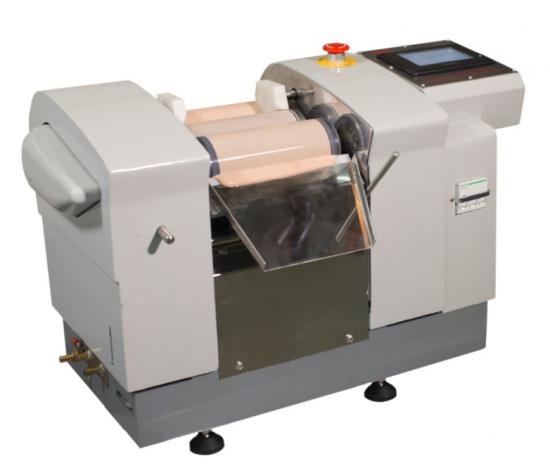

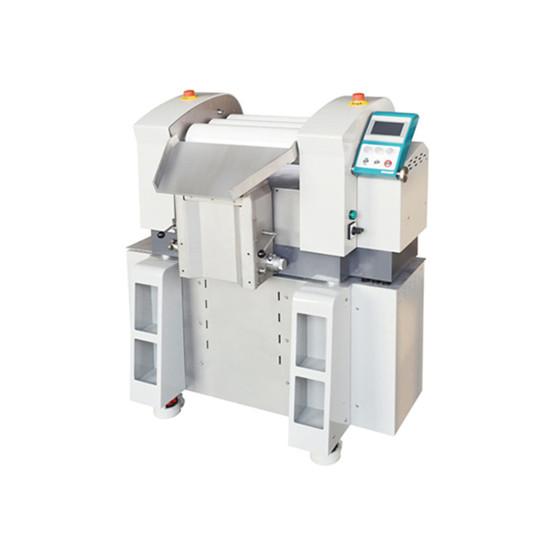

Lab Electronic Three Roll Mill

INTRODUCTION:

The SDS models were specifically designed for manufacturers who need extraordinary precision and control of particle dispersion. These units provide a means of achieving extremely precise particle size reduction/dispersion in a remarkably reproducible format. For example Food, Pharma, Cosmetic, Inks, Pigment, Ointment, Composites, Electronic paste and so on. The SDS models are great for product development, pilot plant projects, and small production runs.

SDS models allow you to control the machine in three working modes: Mix, Grind, Clean

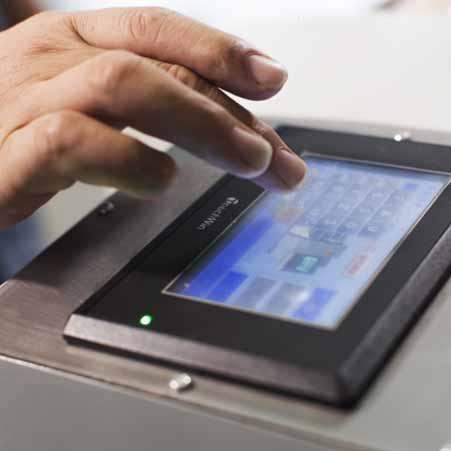

Gaps are adjusted by the control system to maintain the pre-set value.

The operator can change the rollers' gaps during operation.

TECHNICAL SPECIFICATION

Model	Roller dia. mm	Roller length mm	Capacity L/H.	Speed ratio	Speed rpm	Motor power kw	Weight kg
SD50	50	150	0.02-7	4:2:1	580	0.2	20

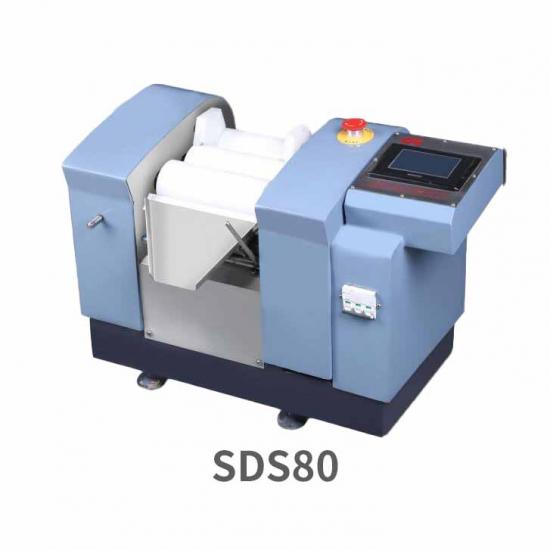

SDS80	80	200	0.02-20	9:3:1	480	1.1	80
SDS120	120	280	0.6-37	9:3:1	480	1.5	250
SDS120L	120	450	1-60	9:3:1	480	2.2	295

ADVANTAGES:

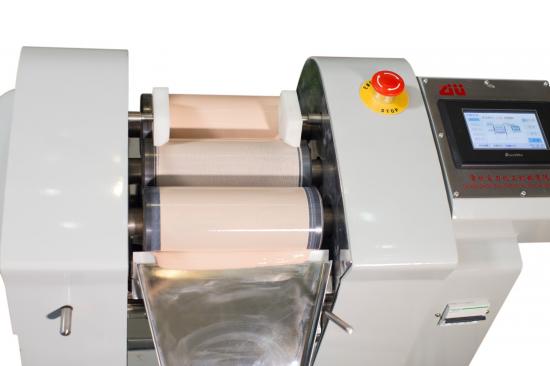

The three horizontal pieces of special alloy rollers will squeeze material by different speeds so as to get a good grinding and dispersion result.

These three roll mill have cooling systems(Except SD50) by which water can be put in to cool down rollers’ temperature. A water temperature indicator can be set in both inlet and outlet to assure stable temperature and good quality production. The cooling water recycling system or roller heating system is available as customer request.

• The variable speed can meet different viscosity materials’ need.

• The Spring tensioning knife holder is more effective for discharge.

• The Knife tightness can be adjusted.

• The final fineness can be reached to 1-20 microns.

• The compact machine design saves some space.

•


MATERIALS OF MACHINE:

The products outlet parts are made of stainless steel. The rollers’material is chilled hard alloy steel or Zirconia, Alumina, Silicon carbide which ensure excellent abrasion resistance, high hardness and no pollution. The outside of machine is coated with anti-dissolvent paint which make the machine shining and prevent possible dissolvent corrosion.

SAFE & DURABLE

• High safety standard due to integrated electrical and mechanical overload protection as well as prominently positioned emergency-off switch

• Easy-to-assemble, self-aligning scraper base with replaceable knives

• Speed control

• Robust metal housing, solid, compact and durable

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
