Roller Working Length 300mm 675mm 810mm and 1000mm,Three Roller Mill for Grinding The Material with High Dispersive Viscosity and Fine Size

Overview

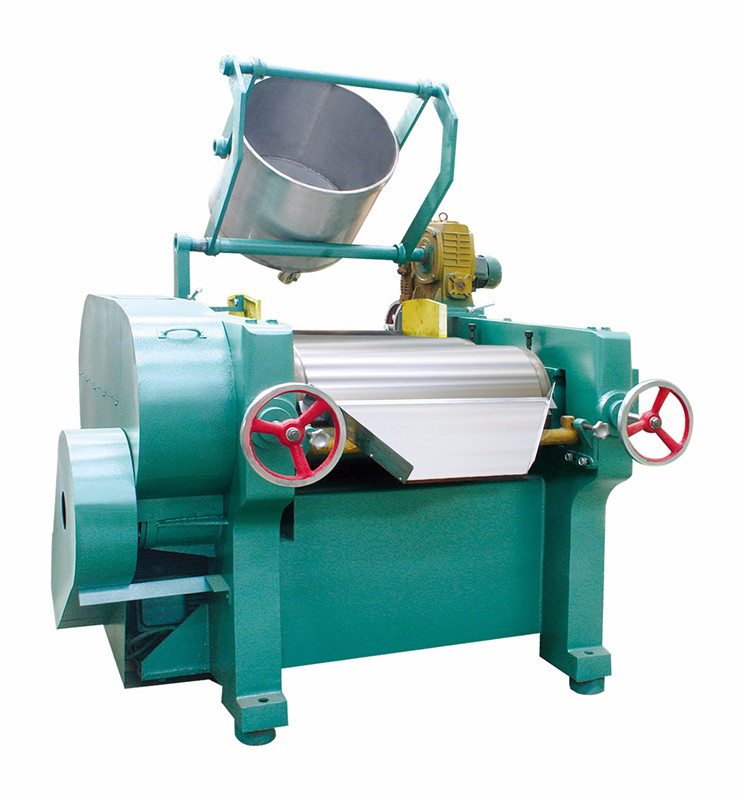

Three roller mill is welded by high quality steel plate. The transmission gear adapts oil-immersed type and the operative hand-wheel is transmitted by gear. It features beautiful appearance, convenient to operate, long life and so on. Particularly it is suitable for grinding the material with high dispersive viscosity and fine size.

Character

SG series is a new generation product on basic of traditional type,

●Chain gears driving, oil tank gear box, fewer noise, longer life time.

●Hydraulic piston driving, pressure guage.

● SUS304 stainless steel discharge hopper.

Parameter

Model		SG6*/S150	SG9*/S260	SG16*/SM450	SG16*L/SM450L
Roller diameter（mm）		150	260	405	405
Length of roller working surface（mm）		300	675	810	1000
Distance from discharge hole to ground （mm）		660	580/530	780/700	780/700
Output（L/h）		25~40	60~80	120~150	130~200
Roll rotating speed（r/min）	Low speed roll	34	23	14	14
	Medium speed roll	78	64	43	43
	High speed roll	181	183	130	130
Main motor power（KW）		2.2~3	7.5	15-18.5	22
Overrall dimension L*W*H（mm）		920*880*1150	1690*1330*1300	2150*1795*1600	2350*1750*1600
Machine weight（kg）		500	2000	5300	5800
Packing dimension L*W*H（mm）		1000*1000*1400	1800*1450*1600	2250*1850*1950	2450*1850*2000

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
