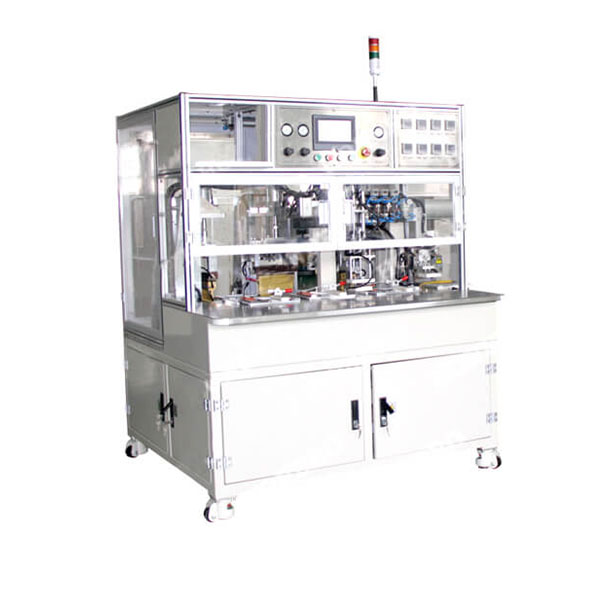

Semi-Automatic Four Station Battery Heat Sealing Machine For Pouch Cell Lithium Batteries Packaging

Functions
● This equipment is suitable for the flexible packaging lithium batteries semi-automatic packaging. Mainly included the top sealing, lateral sealing, Angle sealing, insulation test, fine exactly the side sealing, and other functions.

Features
● Transfer jig, servo drive;
● Under the top sealing, side seal head is fixed, the seal is more stable;
● Insulation test can be adjusted independently;
● Top sealing, lateral sealing head can auto correct;
● Battery secondary positioning, exact edge sealing side;
● Batteries transfer, electric driving.

Technical Parameters(for reference)：

ITEM	DCF150	DCF200
Measure	1300*1650*1580mm(L*W*H)	1350*1850*1580mm(L*W*H)
Weight	About 1T	About 1T
Power	AC220V/50HZ, 3.5KW	AC220V/50HZ, 3.5KW
Air source	≧0.6Mpa,100L/Min	≧0.6Mpa,100L/Min
Applicable range	Top seal65-150mm,     side seal50-145mm	Top seal80-190mm,     side seal60-180mm
Capacity	100-300EA/H	100-300EA/H
Action	≧99%	≧99%

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
