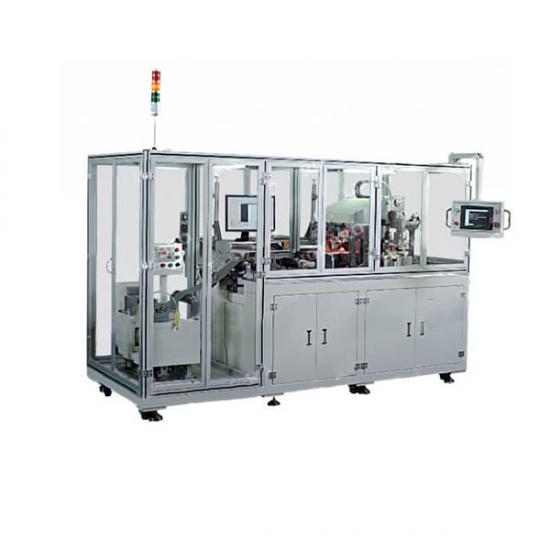

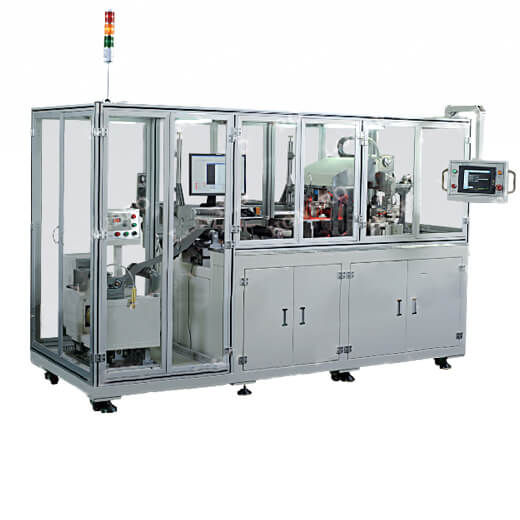

Automatic Battery Electrode Cutting Machine Pouch Cell Die Cutter

Functions
This equipment is suitable for lithium ion battery gap coating, separated rolling she atically stacked in the feed box;

Highlights
● Adopts frequency conversion motor automatically put volume, and with functions of rectification
● Floating roller tension closed-loop control material, and storage of material function
● High precision color optical testing positioning, fixed-length feeding servo for roller, and strip anti-skid functions
● Sheet piece by cutting mold and sheet mold blanking forming at one time
● Dual manipulator auto stacked sheet piece into the slot
● Timely according to the height of laminated manger
● Capacity: 25 to 40 times/min
● Die adopts aviation aluminum alloy, reducing mold weight, decreasing mold impact

● Adopt independent fixed feeding roller compaction, tear open outfit and convenient maintenance

We will still provide preuium slot die coater for you!

Technical Parameters：

ITEM	HBCQJ-200	HBCQJ-350	HBCQJ-450
Measure	1950*1350*1950mm	2200*1700*1950mm	2200*2200*1950mm
weight	About 1.5T	About 2.2T	About 2.8T
rate	3.5KW	3.5KW	4KW
power	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ
Air source	≥0.6Mpa,260L/s	≥0.6Mpa,300L/s	≥0.6Mpa,350L/s
Vacuum source	≤-0.09Mpa,10L/Min	≤-0.09Mpa,10L/Min	≤-0.09Mpa,10L/Min
Applicable range	Length 90-350 width 40-200mm	Length 100-350 width 60-350mm	Length 100-350 width 80-450mm
Equipment capacity	20-40times/Min	20-40times/Min	15-35times/Min
Equipment optimal rate	≥98%	≥98%	≥98%
Burr precision	≤0.019mm	≤0.019mm	≤0.019mm
Mould life	Above 300 million times	Above 300 million times	Above 300 million times



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
