3-in-1 Semi-Automatic Edge Trimming Folding And Ironing Machine For Pouch Cell Cases Process

Introduction

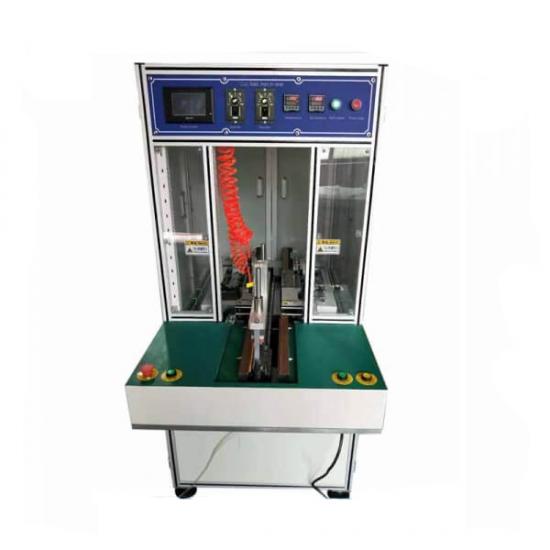

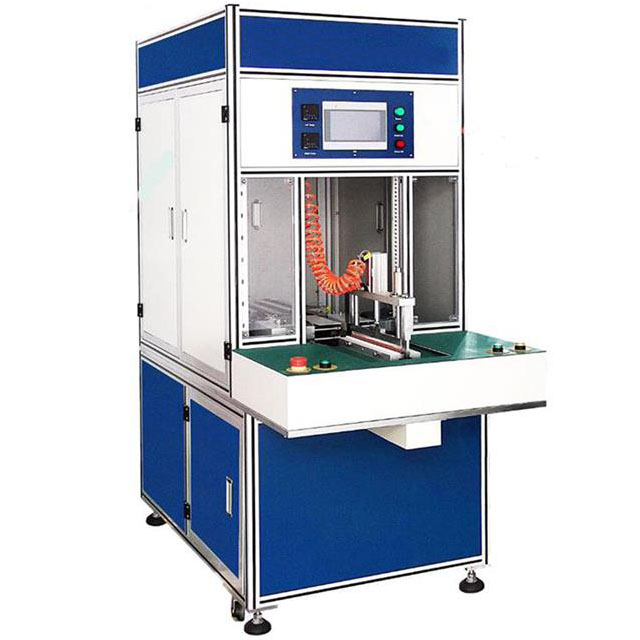

TMAX300HH is a three-in-one machine provides the continuous workflow for edge trimming, folding and ironing of extra large pouch cell cases without dedicated labor. This process is widely used in the final steps of pouch cell battery pilot-scale production line to ensure a smooth, neat and tidy casing edge.

Specification

roning Module
Trimming Module
Folding Module
Max. Power Consumption	2.5KW
Working Voltage	208-240 VAC, single phase
Compress Air Pressure	·         0.7 - 0.8 MPa (Each stroke will consume 0.09L air )  ·         Note:Air Compressor is not included.
Size Info (Edge Ironing, Trimming & Folding Width/Length)	·         Cell length: 10~580mm ·         Cell width: 10~240mm ·         Cell thickness: 2~12mm
Temperature Info	Ironing Temperature: 0-250℃ adjustable
Dwell Time	0-99 seconds adjustable
Productivity	160~220 pcs / hr (Expected lifespan of Trimming blade ~ 1 million times)
Trimming accuracy	+/-0.1mm
Working Modes	· Continuous workflow for edge trimming, folding and ironing of extra large pouch cell cases (manual cases loading is needed) · Linear sliding rail for easy manipulation of trimming, folding and ironing modules.
How to use	When the pouch cell is fabricated, an uneven edging excess is expected. In order to make a neat and tidy cell with smooth edge just like the commercial pouch batteries, please follow the steps in below: Step 1. The trimming module will cut off the excess area of the casing edge, only leave the size appropriate for the edge folding and ironing Step 2. The ironing module will smooth the edge prior to the folding  Step 3. The folding module will partially fold the edge Step 4. The ironing module will smooth the folded section again and then iron the longer section against the sides of the case. Now a neat and tidy cell is finished.
Product Dimensions	2000X 850 X 1800 mm
Net Weight	360Kg
Warranty	Two Years limited warranty with lifetime support.
