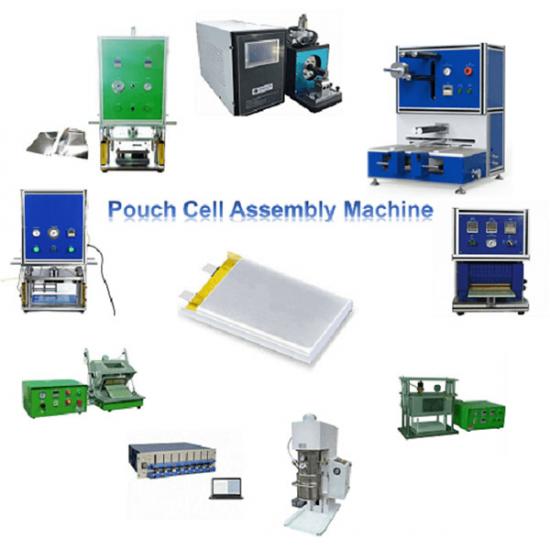

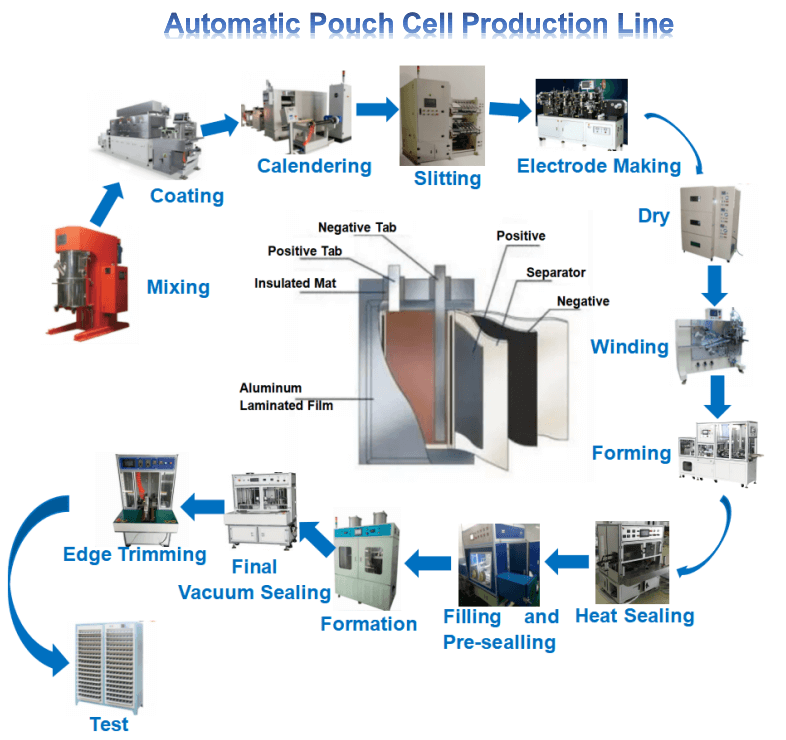

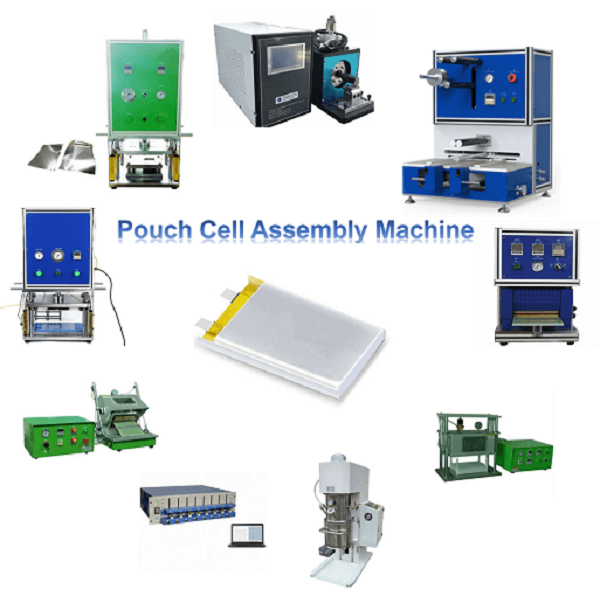

Process

Item

Product Name

Description

Powder processing

Furnace

Muffle Furnace/Tube Furnace/Atmosphere Muffle Furnace...

Slurry vacuum mixing

Mixer

Compact Vacuum Mixer With Vibration Stage & Two Containers (150 & 500ml)

With 150ml and 500ml container, Rotary Speed:320rpm

Compact Dual-Shaft Planetary Vacuum Mixer Machine With A 500 ML Container

Dual-Shaft, 500ml container, Rotary Speed:600rpm

Electrode coating

Coater

Laboratory Electric Heat Film Coating Machine For Electrode Coater With Dryer

Effective coating area:100*250mm

200*300mm

250*550mm

250*800mm

Micrometer Adjustable Film Applicator With Digital Display-100mm Width

With digital gauge,coating width:100mm

Lab Compact Film Vacuum Coating Machine with 300mm Width Doctor Blade

Bar coating, coating width:100mm

Electrode pressing

Press Machine

Electric Roller Press Machine With Variable Speed

100*100(dia*width,mm),electric,with heating function

100*200

100*300

100*400

Lab Small Pressing Calendar Rolling Machine

100*100(dia*width,mm),maual,without heating function

100*200

100*300

Electrode cutting

Die cutter

Lab Electrode Die Cutter For Pouch Cell Electrodes Cutting

Suitable for small size electrode cutting
Max. customized size:140mm L x 80mm W
Including one customized cutting die
190USD per extra cutting die

Lab Electrode Die Cutter For Pouch Cell Electrode Sheet With Two Size Range Optional

Suitable for various size range electrode cutting
Max. customized size:200mm(L) * 300mm(W)
Including one customized cutting die
190USD per extra cutting die

Electrode stacking

Stacker

Laboratory Electrode Stacking Machine For Pouch Cell Production Line

Suitable for various electrode size stacking, manual

Semi-Automatic Stacking Machine For Pouch Cell Electrodes

Max suitable electrode size:200mm*200mm

Tab Welding

Ultrasonic spot welder

Al Tab Ni Tag Ultrasonic Welding Machine

2000W, 40kHz, max.40 Layers

3000W,  40kHz, max.60 Layers

Case forming

Forming machine

Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films

Including one customized forming die
1010USD per extra forming die Max customized size：80mm*80mm

Including one customized forming die
1120USD per extra forming die Max customized size：120mm*120mm

Top&side welding

Hot sealing machine

Compact Heating Sealer For Sealing Laminated Aluminum Case Of Pouch Cells

With rubber sealing blade, suitable for sealing with tab, sealing length:200mm

Sealing length:300mm

Electrolyte injection

Electrolyte filing machine

Bottletop Electrolyte Digital Dispenser With 32oz Boston Round Glass Bottle: 1- 10 Ml Adjustable

Manual operation, digital display

Single Head Electric Injection Pump For Lithium Ion Battery Electrolyte Filling

Automatic, PLC controlled

Electrolyte Diffusion & Degassing

Diffusion & Degassing Chamber

Pouch Cell Electrolyte Diffusion/Degassing Chamber

Can be put into glove box；Operation Temperature:-20 to 40 ℃

Vacuum sealing

Vacuum sealer

Laboratory Vacuum Sealing Machine

Can be put into glove box, sealing length:200mm

Sealing length:300mm

Sealing length:400mm

Battery performance testing

Battery tester

5V6A 8 Channel Lithium Ion Battery Tester Equipment For Experiment

Testing range from 12.0 mA to 6000 mA, up to 5V.

10V10A 8 Channel Lithium Ion Battery Tester Equipment For Experiment

Testing range from 12.0 mA to 10000 mA, up to 10V.
