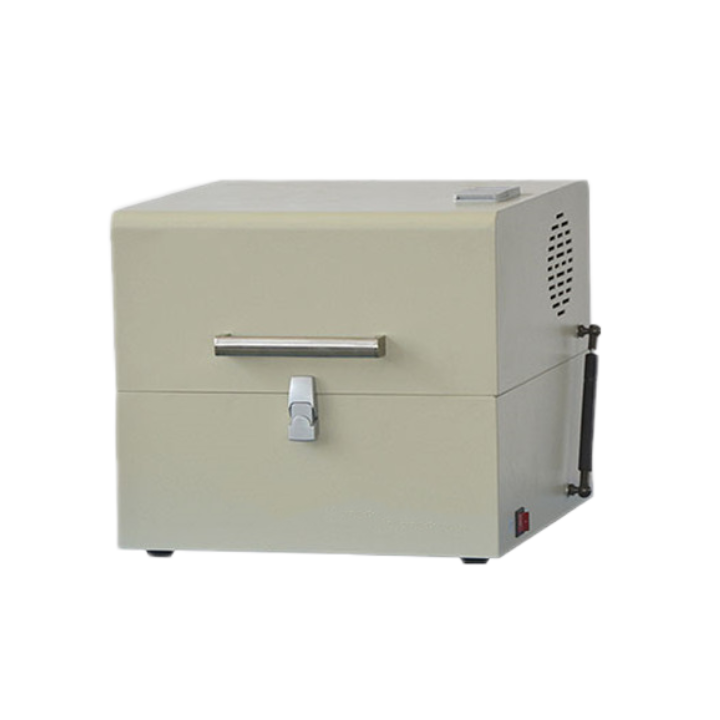

Laboratory High Speed Vibratory Ball Mill Grinding Mixing Machine

Overview	The VBM-80 High Speed Vibratory Ball Mill is a high performance, compact instrument for the preparation of laboratory samples (small and micro quantities).
How it works	The instrument has a rotating oscillating and vibrating three-dimensional motion during grinding, with a higher collision energy than other types of balls.
Advantages	The instrument is small, light, efficient and inexpensive
Scope of application	High speed vibratory ball mills are capable of ball milling or mixing various solids, suspensions and pastes with different particle sizes and materials by both dry and wet methods, and can be used for grinding, mixing and mechanical alloying of materials



High speed vibratory ball mill diagram:



Technical parameters:

Model	VBM-80
Specification	50ml,80ml
Technical specifications	Maximum charge per jar: one third of the volume of the ball mill jar
Feed size	<1mm
Discharge size	Down to 0.1μm
Oscillation frequency	1200 cycles/min
Timing range	0~9999 sec and normally open gear
Motor specification	Single phase 220V 180W
Motor frequency	50Hz
Dimension	405x365x260 (mm)
Features	The high speed vibrating ball mill has an eccentric pendulum shaft, which produces an eccentric swing of the tank during the high speed operation of the motor; driving the whole support point frame to vibrate up and down, making the grinding process complete in a three-dimensional space of high speed swing and vibration. This greatly increases the speed and efficiency of grinding.



Standard configuration:

Ball Mill Tank Material Type	Pictures
80mL Stainless steel (1Cr18Ni9Ti)
50mL Agate jar
50mL Ceramic jar
50mL Nylon jar



Optional models:

50mL Polytetrafluoroethylene jar
50mL Zirconia jar
80mL Stainless steel vacuum jar
Stainless steel plain jacket
Vacuum stainless steel jar
Each jar comes standard with a grinding ball of	20 for Φ10mm ，4 for Φ20mm



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
