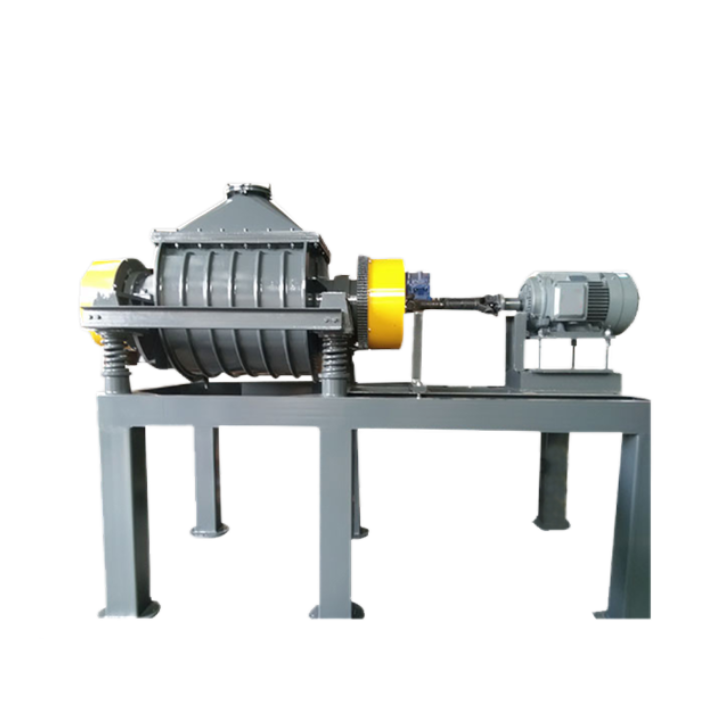

Lab Production Crushing Grinding Vibratory Ball Mill Machine

I. Principle of operation

The electric motor drives a shaft with an eccentric block through a winding coupling, which generates vibrations that are transmitted to the support. The stand is equipped with a ball mill cylinder, which vibrates with the powder. The stand is equipped with springs on both sides and at the bottom, which are connected to the machine base. When viewed from the end face of the ball mill cylinder, the movement of any powder on it is a flat and curved path. The powder bounces at a height equal to 2 times the amplitude and the movement is mainly vibration, but there is also a small amount of rotation due to inertia.



II. Application areas

The vibratory ball mill is a widely used crushing equipment in mineral processing and powder metallurgy, and is widely used in ceramics, non-metallic ores, pigments, electronics, chemicals, metallurgy, building materials, new materials, food and pharmaceuticals. It is used for fine crushing and its efficiency is 2 times higher than the general ball mill, with the advantages of simple structure and low cost.



III. Equipment parameters

Project	ZM-100	ZM-200		ZM-400	ZM-600	ZM-800		ZM-1000	ZM-1200
Grinding method	Dry, wet, open circuit, closed circuit
Feed size mm	≤15		≤20				≤25
Discharge size mm	0.3-0.074
Cylinder volume L	100	200		400	600	800		1000	1200
Production capacity T/H	0.1-1.5	0.2-3		0.3-5	0.3-7	0.3-10		1-13	1.2-16
Amplitude of vibration mm	9-14	9-14		8-11	8-11	7-9		7-9	7-9
Motor power KW	17-22	22-37		37-45	37-55	55-75		55-75	75-90
Vibration frequency HZ	16.2	16.3		16.3	16.3	16.5		16.6	16.7
Weight of the whole machine T	≈2.5	≈4.0		≈6.6	≈8.0	≈11.5		≈13.8	≈16.3
