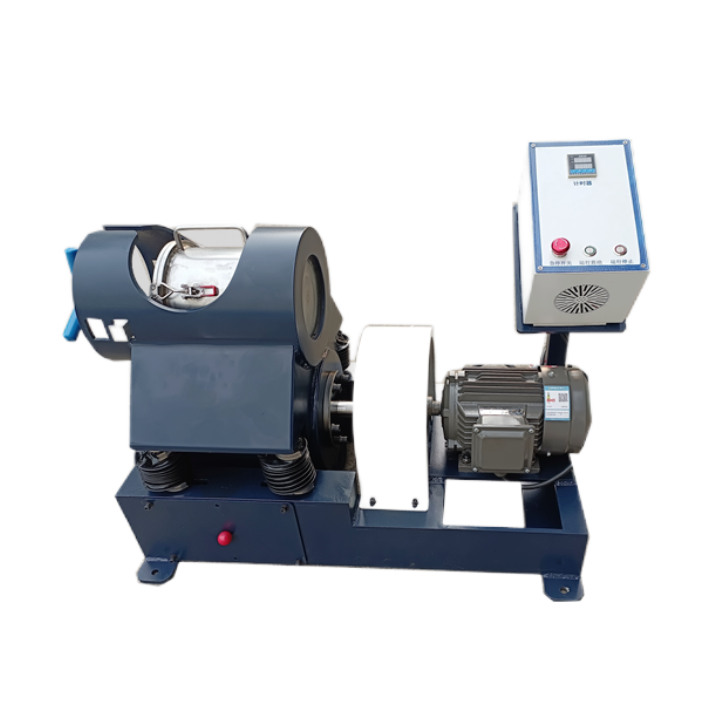

Laboratory Single Double Triple Cylinder Vibratory Ball Mill Machine

I. Introduction

The Laboratory Vibratory Ball Mill, also known as a vibratory mill, is a new type of high-efficiency powder making equipment with three structural types: single cylinder, double cylinder and triple cylinder.

The laboratory vibratory mill is simple and convenient to operate, reliable, easy to clean and adaptable to working conditions, and can be used for dry and wet ball milling.

The laboratory vibratory mill is widely used in electronics, ceramics, chemicals, powdered metals, tungsten, calcium carbide, rubber compounds, magnetic materials and high frequency porcelain materials for the radio industry and pharmaceuticals.

Special options: the tank lining can be lined with stainless steel, ceramic (alumina), zirconia, tile, nylon, PTFE, edible grade rubber or polyurethane.



II. Structure principle

The laboratory vibrating mill is mainly composed of frame, base frame, exciter, grinding cylinder, spring, motor, etc. When the machine is started, the motor drives the exciter, generating an exciting force, which causes the grinding cylinder to vibrate continuously with high frequency and small amplitude. As a result of the rotation and relative movement of the grinding medium, the material is frequently impacted and stripped, thus achieving the purpose of uniformly crushing the material.



III. Features

1. The filling capacity of the medium in the grinding cylinder is higher than that of the same capacity ball mill, up to 80%, so the processing capacity is large.

2. Simple structure, through adjusting the amplitude, frequency, media, ratio can produce different size of products.

3. Vibrating mills with jacketed grinding cylinders can adjust the grinding temperature.

4. Vibrating mills with sieves and collection devices can be used for continuous production.

5. Simple and convenient operation, reliable work, easy to clean and adaptable to working conditions.

6. Dry and wet ball milling can be carried out.

7. Light weight, small volume and high efficiency.

8. Can be specially customized according to requirements

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
