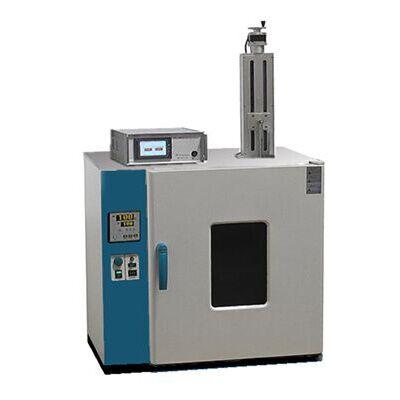

Touch Screen Programmable (1-200 Mm/Min) Dip Coater With Drying Oven Up To 100°C

Specifications：

Structure	· 5 positions programmable rotary stage · stepping motor control pulling system with control resolution as low as 1mm/min · Stainless steel pulling wire · quick sample clip for up to 10" x 3" sample · Stainless steel oven chamber

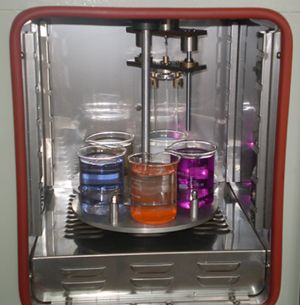

Rotary dipping stage	The rotary dipping stage has five slots to place coating solution containers. It is controlled by the program to send each container sequentially in position for sample coating. According to the program which user can coat their sample with one or multiple layers of coating at one go.

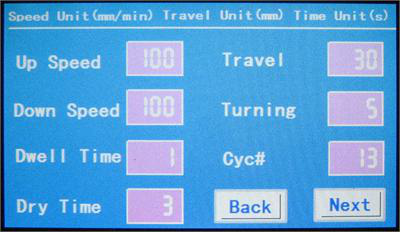

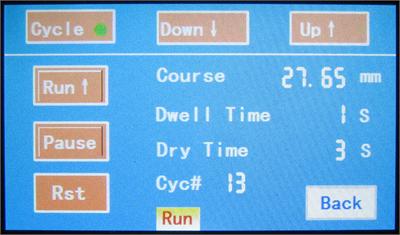

Touch screen controller	6" color touch screen controller
Travelling Distance	300 mm max.
Dipping/Pulling Speed	1-200 mm/min Adjustable
Max. Working Temperature	200°C (+/- 1.5°C accuracy)
Max. Sample Size	10" x 3"
Max. Sample Weight	4 kg
Dipping/Pulling Motor	Stepping Motor
Oven	· Working Voltage: 208-240V AC · Max. Power Consumption: 2300W · Inside dimensions: 600 x 500 x 750mm (L W H)    ( 225L)
Compliance	CE Certified
Warranty	One year limited with lifetime support
Application Notes	· In order to get better film coating, the substrate shall be treated by plasma cleaner · Use ultrasonic processor to disperse nanopowder or homogenize solution to get better coating
Net Weight	100 kg (220lbs)
Shipping Dimensions	40"(L) x 40"(W) x 60"(H)
Shipping Weight	182 kg (400 lbs)



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
