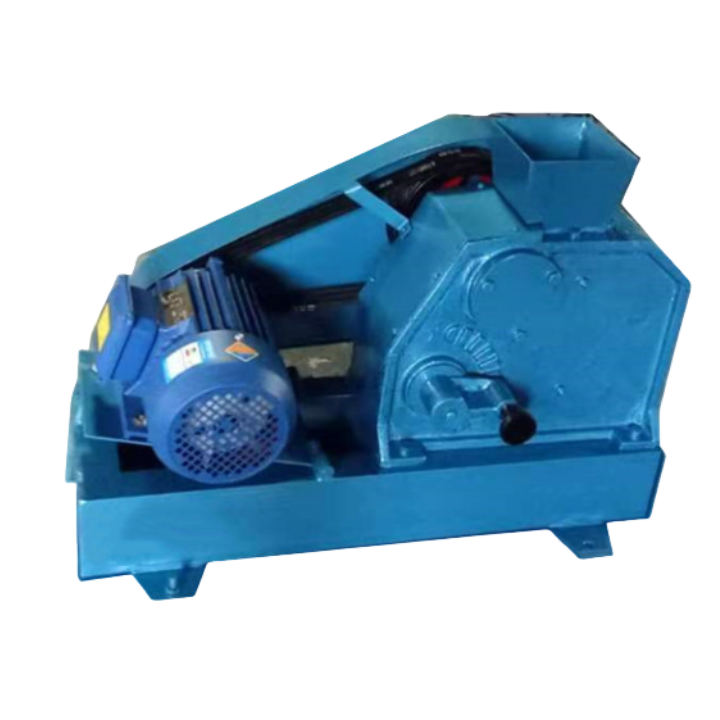

Laboratory Hard Stone Mini Rock Mobile Jaw Crusher for Mineral Ore Sample Preparation

Introduction

Laboratory Jaw Crusher (Jaw Crusher for short) is mainly used for medium size crushing of all kinds of ores and large materials, and can crush materials with compressive strength not greater than 320Mpa, divided into two kinds of coarse crushing and fine crushing.PE Series Jaw Crusher has a complete range of specifications, and its feed size is 125mm～1200mm, which is the first choice of primary crushing equipment.

The main structure of laboratory jaw crusher: frame, eccentric shaft, large pulley, flywheel, side guard plate, elbow plate, elbow plate back seat, clearance screw, reset spring, fixed jaw plate and movable jaw plate, etc., of which the elbow plate also plays the role of insurance. The crushing mode of this series jaw crusher is curved extrusion type. The motor drives the belt and pulley, and the eccentric shaft makes the movable jaw move up and down. When the movable jaw rises, the angle between the elbow plate and the movable jaw becomes larger, which pushes the movable jaw plate to approach to the fixed jaw plate, and at the same time, the materials are crushed by extrusion, rubbing, grinding and other multiple crushing. When the movable jaw goes down, the angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the tie rod and spring, and then the crushed materials are discharged from the bottom of the crushing chamber. With the continuous rotation of the motor, the movable jaw plate crushes and discharges the material periodically, realizing mass production.

Application

Laboratory jaw crusher is mainly used for coarse, medium and fine crushing of various ores such as limestone, calcium carbide, calcium carbide slag, shale, basalt, river pebbles, lapis lazuli, etc. It is used with remarkable effect in cement factories, sand and gravel factories, stone factories, desulfurization of coal-fired power plants, calcium carbide plant, and it is widely used in the industries of mining, metallurgy, chemical industry, building materials, water conservancy, and transportation.

Features

1. High crushing ratio of about 15, uniform particle size.

2. Gasket type discharge opening adjustment device, large adjustment range, reliable operation.

3. High production efficiency, low energy consumption, compared with the ordinary fine jaw breakers, than the same specification processing capacity increased by 20-35%, energy consumption reduced by 15-20%.

4. The crushing cavity is deep and without dead zone, which improves the feeding capacity and output.

5. Adopting hyperbolic jaw plate with small wear, under the same process conditions, the life of jaw plate can be extended by more than 3-4 times, which is more obvious for high abrasive materials.

6. The lubrication system is safe and reliable, the parts are easy to replace, and the maintenance workload is small.

Parameters

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
