Lab Compact Disk Mill Suitable For Sample For Finer Milling After Sintering

Features

MSK-SFM-DS is a compact disk mill with steel grinding jar. It is an ideal tool to quick prepare the sample for finer milling after sintering. It features fast crushing and grinding to prepare the sample for finer milling. An ideal miller for coal, ore, rock or ceramic compounds.

Specifications

Feature	Fast Crushing and Grinding to prepare the sample for finer milling. Interlock protection is included to cut the power if the lid is open during the crushing process. With Four secure fixture, MSK-SFM-DS can be fastened on the platform. An ideal miller for coal, ore, rock or ceramic compounds. Click the video left to see how it work for crushing
Working Voltage	208 - 240V AC 50Hz, 180W AC motor For operation under 110V AC, please order a 300W transformer.
Timer	0  to  5 minutes adjustable

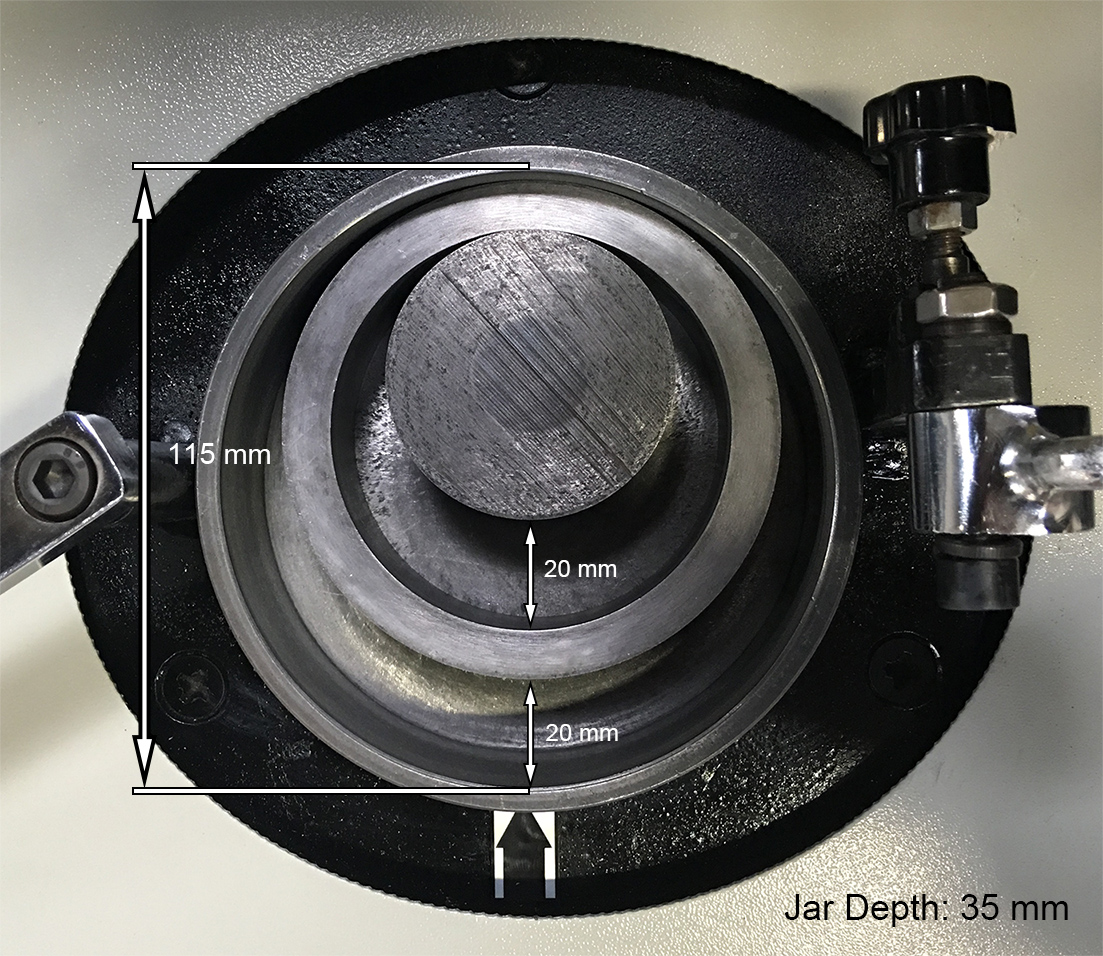

Crushing & Grinding Capability Grinding Jar Dimension	Manganese steel grinding parts 100 mL capacity for about 50g of material Grinding Jar: 115mm I.D. x 35mm Depth (See Fig.4) Material: Material hardness must be lower than Mohs 8 Space between grinding disc and jar can contain materials under 20mm in diameter. and 35mm in height. (See Fig.3) Product optional Product size: 80 - 200 mesh according to operating time. Please use our 3'' Dia. Sieve Set No.200&450 Mesh   or  Compact Ultrasonic Sieving System - MSK-SYU-3 to filter the product (See Fig.1 and 2)
Net Weight	75 lbs
Shipping Weight & Dimensions	110  lbs; 40"x30"x27"
Dimension	Machine: 250×250×330 mm (L x W x H)
Certification	CE Certified NRTL certification are available upon request
Warranty	One-year limited warranty with lifetime technical support
Application Note	Place grinder on a firm platform and isolated room to avoid noise, it is suggested to fasten the grinder on the platform. Please clean the grinding ring before each use. May cause contamination by Mangalloy (manganese steel) grinding disc and jar. Material hardness must be lower than Mohs 8



Product Images



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
