Product Details

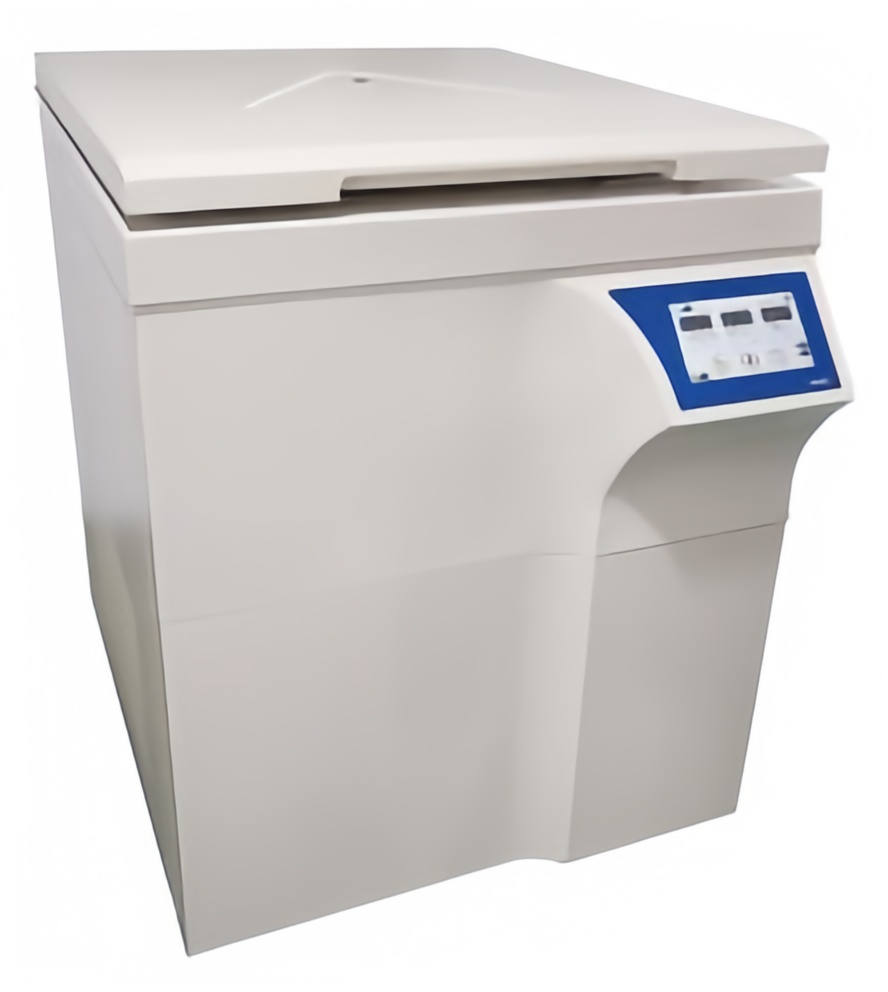

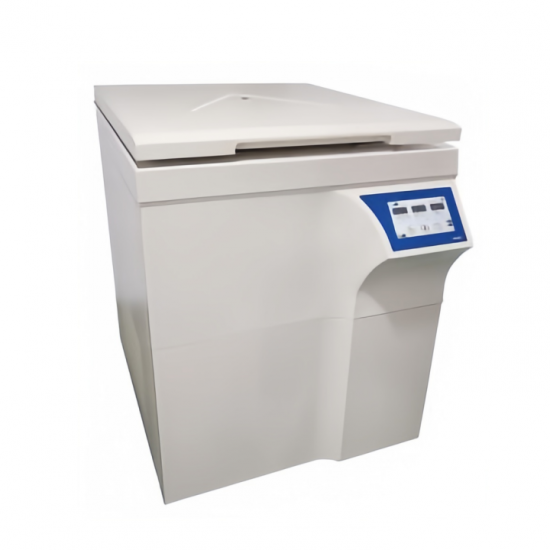

Lab Vertical Type High Speed Large Capacity Refrigerated Centrifuge with High Performance Compressor




This series of centrifuges is an advanced intelligent instrument with large capacity and controllable temperature. Widely used in biology, chemistry, medical health, food safety, agriculture and forestry science, blood banks and blood stations, biopharmaceutical, pharmaceutical products and other fields of scientific research and development.



Product characteristics

1) Drive: AC variable frequency motor drive. It has a soft brake function to prevent sample resuspension.

2) Speed control: It takes 14 seconds to accelerate to the maximum speed, and 15 seconds to drop from the maximum speed to zero.

3) Display: Intelligent control, touch panel, operating parameters can be automatically memorized, RCF can be set directly.

4) Refrigeration: Using imported fluorine-free compressor units and control valves, small vibration, fast refrigeration, low noise, to meet the requirements of environmental protection.

5) Rotor: Rotor standby cooling function. The rotor can be autoclaved (121℃·20 min).

6) Fuselage: Fuselage adopts high quality steel structure; Stainless steel centrifugal chamber.

7) Security protection: Rotor number identification function, electronic security door lock, with door cover, overspeed, imbalance and other multiple protection functions.

8) Control: 10 kinds of lifting rate, can store more than 30 kinds of custom working mode, point function, short centrifugation, easy to diversify centrifugation.



Performance parameter

Model number

DD6KR

Maximum speed

6000r/min

Maximum relative centrifugal force

6680×g

Maximum capacity

6×1000ml

No.38 angle rotor

6×500ml(6000r/min)RFC:6680×g

No.70 horizontal rotor

6×1000ml(4200r/min)RFC:5030×g (round cup)

No.70 horizontal rotor

6×1000ml(4200r/min)RFC:5030×g (square cup)

Speed accuracy

±20r/min

Timing range

0~99h59min59s

Temperature control range

-20℃~40℃

Temperature control accuracy

±1℃

Compressor

Imported high performance compressor unit, fluorine free refrigerant

Machine noise

≤58dB

Electric machine

Variable frequency motor, microcomputer control

Power source

AC 220V 50Hz 35A

Overall dimension

830×720×1250mm

Weight

268kg


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
