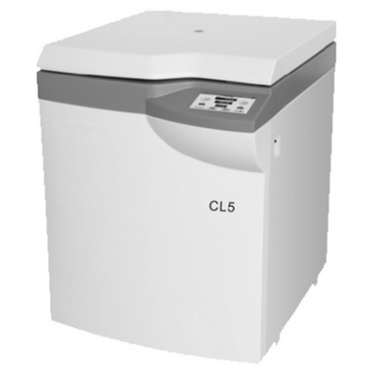

Blood Bank Refrigerated Centrifuge with Large Capacity

This is a new generation of intelligent centrifuge, 6×500ml, 4×1000ml horizontal rotors can be quickly separated, and the size of the model is small; the imported compressor unit is used, and the cooling effect is good; the new UI interface design, beautiful arc, in line with modern ergonomics study principles.

1. One machine has multiple functions to meet the needs of blood component separation and life science research

Separation of blood components: It can separate 4 450ml standard triple blood bags or 8 200ml standard triple blood bags at a time. It has a rapid centrifugation procedure and is small in size. It is an ideal equipment for emergency centrifugation in blood stations.

Clinical test: Equipped with a variety of adapters (1.5ml-1000ml), almost covering the test tubes used in hospitals, 6 × 500ml horizontal rotor, 168 vacuum blood collection tubes can be separated at one time, to meet the needs of large-scale centrifugation in hospitals. Life science research: It can process samples in large volume and test samples in multiple test tubes.

2. Safe and reliable

CL5R consists of three layers of protection structure: inner sleeve, protective sleeve and frame. It has various protection functions such as non-contact unbalanced operation protection, overspeed protection, overtemperature protection, motor overheat protection, door cover protection, etc. personnel safety.

3. Sensitive touch screen and control system

3.1 High-definition, high-brightness touch screen, rotating speed, time, temperature setting parameters and actual parameters are displayed on the same screen, easy operation and intuitive display.

3.2 Curve operation mode, the speed, temperature, etc. can be visually displayed through the curve, and the stability of the operation can be known in time.

3.3 The reproducibility of the user's experiment can be achieved through the program, and the entire set of experiments can be reproduced only by calling the program number.

3.4 5-stage stepped centrifugation can be set to meet diverse experimental needs, enabling users to achieve one-key operation of experimental programs.

3.5 Rights management, assign different rights for different users and roles, with password protection function, and enhance the rights management of operable personnel.

3.6 Super powerful system management tools, with different operation options for different applications,

Data retrospective management, operation history records, and operation failure records can be viewed on the screen or exported and saved to related storage devices using a USB device.

3.7 There are 9 kinds of acceleration curves and 10 kinds of deceleration curves, which can effectively prevent secondary suspension and make the centrifugal effect good. The sample number can be scanned and input manually or automatically, and the centrifugation record of each sample can be inquired. Time modes such as infinite timing and appointment start can be selected.

Technical Parameters

CL5 ROTOR

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
