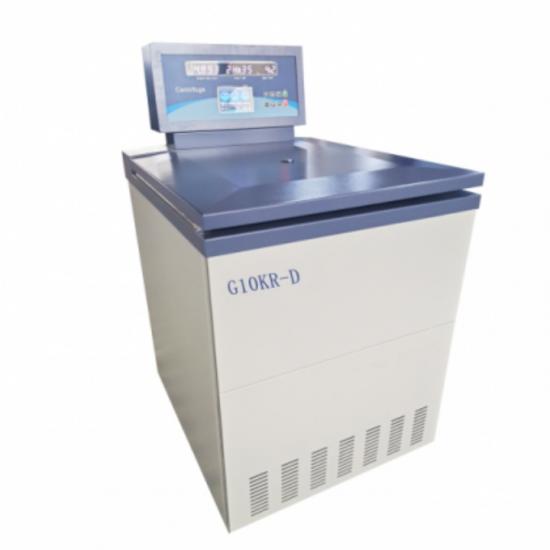

Lab Controllable Temperature 6L Refrigerated Centrifuge Equipped with Angle Rotor And Horizontal Rotor
This series of centrifuges is an advanced intelligent instrument with large capacity and controllable temperature. Widely used in biochemistry, medical health, food safety agriculture and forestry science, blood bank blood stations, biopharmaceutical, pharmaceutical products and other fields of scientific research and development.
Product characteristics
● Drive: AC variable frequency motor drive. with soft brake function to prevent sample resuspension
● Speed control: It takes 14 seconds to accelerate to the maximum speed, and 15 seconds to drop from the maximum speed to zero
● Display: intelligent control, touch panel, LCD, LED dual display, operating parameters can be automatically memorized, RCF can be set directly.
● Refrigeration: using imported fluorine-free compressor units and control valves, small vibration, fast refrigeration, low noise, to meet the requirements of environmental protection.
● Rotor: rotor standby cooling function. Autoclave rotor (121℃·20 min)
● Fuselage: fuselage adopts high quality steel structure; Stainless steel centrifugal chamber
● Security: rotor number identification function, electronic security door lock, with door cover, overspeed, imbalance and other multiple protection functions.
● Control: 10 kinds of lifting rate, can store 40 kinds of custom working mode, point function, short centrifugation, easy to diversify centrifugation.
Performance parameters:
Model number |
G10KR-D |
Maximum speed |
10000r/min |
Maximum relative centrifugal force |
18300xg |
Maximum capacity |
6x1000ml |
No.34 angle rotor |
6x500ml(8000r/min)RFC:11680xg |
No.38 angle rotor |
6x300ml(10000r/min)RFC:18300xg |
No.41 angle rotor |
6x1000ml(7200r/min)RFC:12166xg |
No.70 horizontal rotor |
6x1000ml(4200r/min)RFC:5100xg(round cup) |
No.70 horizontal rotor |
6x1000ml(4200r/min)RFC:5100xg(square cup) |
No.80 horizontal rotor |
4x1000ml(4200r/min)RFC:4430xg |
Speed accuracy |
±20r/min |
Timing range |
0~99h59min59s |
Temperature control range |
- 20 ℃~40 ℃ |
Temperature control accuracy |
±1℃ |
Compressor |
Imported high performance compressor, fluorine free refrigerant |
Machine noise |
≤58dB |
Electric machine |
Ac variable frequency motor, microcomputer control |
Power source |
AC 220V 50Hz 35A |
Overall dimension |
830x720x1250mm |
Weight |
280kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
