Floor Model Low Speed Refrigerated Centrifuge with Multiple Routine Programs

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-L535R-1
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

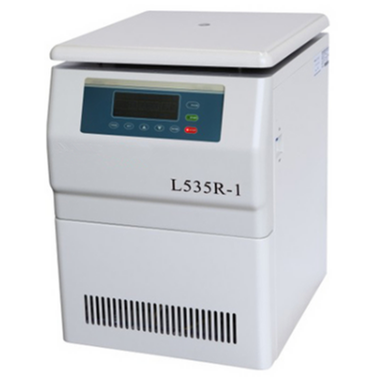

Floor Model Low Speed Refrigerated Centrifuge with Multiple Routine Programs

This is a versatile large capacity refrigerated centrifuge. It has a variety of rotors, and can be equipped with a variety of hanging cups and adapters. Suitable for molecular biology, cell culture and other industries. Imported environmentally friendly compressors are used. It can be kept below -4°C at the highest speed, and the cooling effect is good.

1. Imported environmentally friendly compressor units are used, with good cooling effect and no environmental pollution.

2. Microcomputer control, AC variable frequency motor drive, large torque, no toner pollution, maintenance-free.

3. Automatically calculate and set the centrifugal force RCF value.

4. Equipped with a variety of pipe racks, pipe racks and adapters, one machine can be used for multiple purposes.

5. Programmable operation, can store multiple routine programs.

6. 9 kinds of acceleration and deceleration curves, 10 kinds of deceleration curves, two-stage damping and shock absorption, preventing secondary turbidity of the sample, and good centrifugal effect.

7. There are various protection measures such as over-temperature, over-speed, door cover protection, etc. to ensure personal and machine safety.

Technical Dada

Model	TMAX- L535R-1
Order No.	0204151000
Max. Speed	5350rpm
Max. RCF	5030xg
Max. Capacity	4x750ml
Speed Accuracy	±10rpm
Time Range	1min-99min
Temp.Range	-20℃--40℃
Temp.Control Accuracy	±1℃
Compressor set	Environs-friendly Refrigerant(R404a)
Noise	<65dB(A)
Power Supply	Ac220±22V50Hz 16A
Power Consumption	1.7kw
Dimensions (W x D x H)	560x660x850(mm)
Package Size (W x D x H)	756x856x1320(mm)
Net Weight	120kg

L535R-1 ROTOR

NO.	ITEM	MAX. RPM（r/min）	MAX. RCF(×g)	CAPACITY
No.1	Angle Rotor	5350	5030	6×50ml
No.2	Horizontal transposon	4000	3040	4×500ml
	Enzyme plate hanger rotor	4000	3040	4×2×96孔
	Square hanging basket rotor	4000	3040	Four hanging basket
	Horizontal round cup rotor	4000	3040	4×500ml
	Horizontal round cup rotor （gas tightness）	4000	3040	4×500ml
	Horizontal hanging cup rotor	4000	3040	4×24×5ml （blood collection tube）
	Horizontal hanging cup rotor	4000	3040	4×37×7ml （bleeder tube）
No.3	Enzyme plate rotor	4000	2200	2×2×96孔
No.4	Horizontal transposon	4000	3500	4×750ml
No.4	Horizontal round cup rotor	4000	3500	4×750ml
No.5	Horizontal transposon	4200	3500	6×250ml
	Horizontal round cup rotor	4200	3500	6×250ml
	Horizontal gas seal rotor	4200	3500	6×250ml
	Swing rotor	4200	3500	6×250ml（sharp bottomed）
No.6	Horizontal transposon	4200	3500	4×250ml
	Horizontal round cup rotor	4200	3500	4×250ml
	Horizontal gas seal rotor	4200	3500	4×250ml
	Horizontal square cup rotor	4200	3500	4×250ml
