Lab Vertical 1200C High Temperature Microwave Tube Furnace Suitable for Synthesis, Roasting And Heat Treatment

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-HY-LZG
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

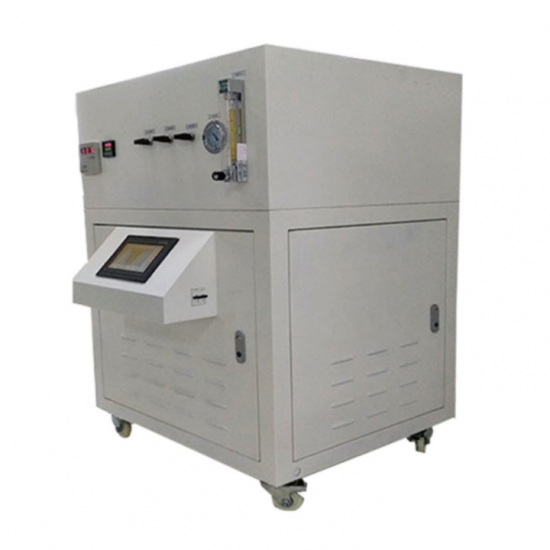

Lab Vertical 1200C High Temperature Microwave Tube Furnace Suitable for Synthesis, Roasting And Heat Treatment

Summarize

1200℃ microwave vertical tube furnace is a standardized multi-functional microwave vertical atmosphere tube furnace, which is suitable for synthesis, roasting, heat treatment and sintering technology research under various atmosphere conditions, especially for various gas-solid phase/gas phase reaction, synthesis reaction and decomposition reaction.

Main feature

1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;

2) The time of gas replacement can be greatly saved by using pre-vacuuming method.

3) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved;

4) Vertical structure, provide a variety of charging forms, more widely used.

Technical parameter

Model Parameter	HY-LZG1512	HY-LZG3012
Voltage	220±10V，50Hz	220±10V，50Hz
Microwave output power	0.01~1.40kW, continuously adjustable (Panasonic)	0.01~2.80kW, continuously adjustable (Panasonic)
Heating space (diameter x length)	φ40x130mm	φ60x140mm
Microwave frequency	2.45GHz
Operating temperature	<1200℃
Temperature measurement method	Thermocouple/infrared
Static limit vacuum	≤100Pa
Atmosphere system	Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc
Control mode	Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)
Control program	Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven
Anti-microwave leakage	Microwave leakage level <1mW/cm2
Safety protection	Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm
Main body (L x W x H)	About 700x550x900mm		About 800x600x1000mm

Consumables and optional accessories

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

Hot Tags :

Microwave Tube Furnace Microwave Furnace High Temperature Tube Furnace 1200C Furnace Vertical Furnace
