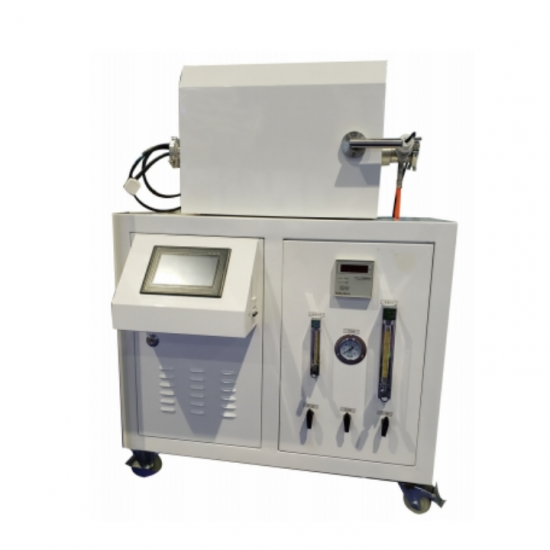

1200C 1600C Multi-heat Source High Temperature Microwave Tube Furnace with Heating Space 40*130mm

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-HY-ZG-E
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

1200C 1600C Multi-heat Source High Temperature Microwave Tube Furnace with Heating Space 40*130mm

Summarize

Double heat source high temperature tube furnace is a standard multi-heat source microwave high temperature tube experimental workstation, can be set resistance, microwave or mixed heating mode, especially suitable for different heating methods of synthesis, roasting, heat treatment and sintering and other comparative process research.

Main feature

1) Industrial brand microwave source, high quality resistance components, various heating methods;

2) Furnace body and vacuum system integrated design, simple structure, safe and reliable;

3) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved;

4) Intelligent switching of heating modes, wider application scenarios.

Technical parameter

Model Parameter	HY-ZG1512E	HY-ZG1516E
Voltage	220±10V，50Hz	220±10V，50Hz
Microwave output power	0.01~1.40kW, continuously adjustable (Panasonic)
Electric power	3KW
Heating space (diameter x length)	φ40x130mm
Microwave frequency	2.45GHz
Operating temperature	<1200℃		<1600℃
Temperature measurement method	Thermocouple/infrared
Static limit vacuum	≤100Pa
Atmosphere system	Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc
Control mode	Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)
Control program	Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven
Anti-microwave leakage	Microwave leakage level <1mW/cm2
Safety protection	Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm
Main body (L x W x H)	About 530x430x380mm

Consumables and optional accessories

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
