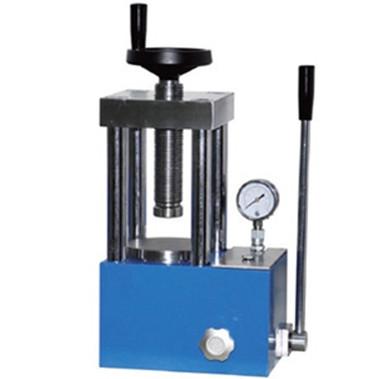

40T Laboratory Hydraulic Pressing Machine with High Precision Pressure Control

Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.

Advantages

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.

3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

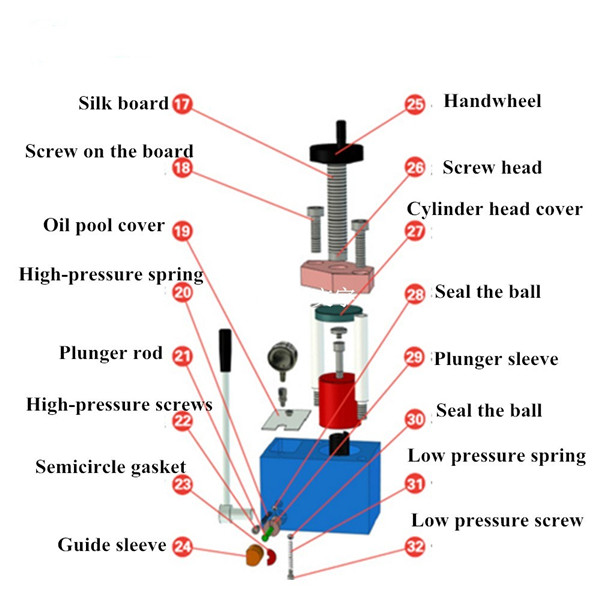

4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

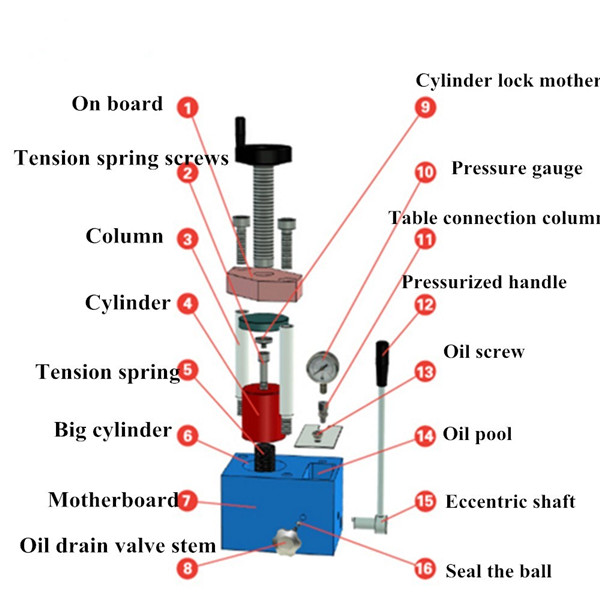

6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.

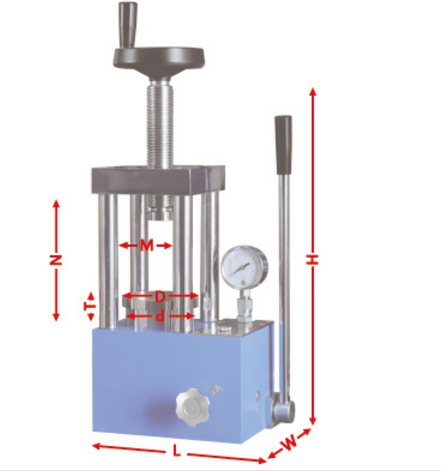

Specification

Product Name	Lab Pressing Machine
Type	CHY-P40
Pressure range	0-40T(0-30MPa)
Piston diameter	Chrome plated cylinder 130 mm
Overall structure	Unsealed connection of equipment to reduce leakage
Pressure gauge	Pressure pressure double scale display
Maximum piston stroke	50mm(T)
Pressure stability	≤1MPA/10Min
Worktable diameter	140mm(D)
Number of columns	4 pillars
Column spacing	150*185mm
over dimension	355215505mm
weight	90kg

Pressure conversion

Actual pressure	System pressure	Double display pressure gauge
1[Tons]	0.75[MPa]
3[Tons]	2.2[MPa]
5[Tons]	3.7[MPa]
10[Tons]	7.5[MPa]
12[Tons]	9[MPa]
15Tons]	11.3[MPa]
20[Tons]	15[MPa]
30[Tons]	22.5[MPa]
40[Tons]	30[MPa]
