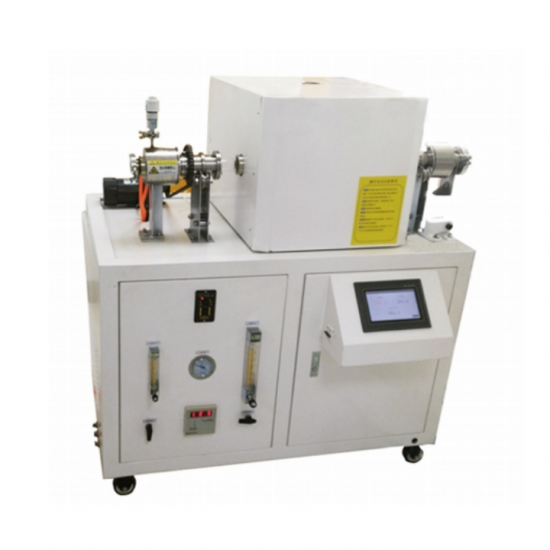

Lab Rotary Vacuum Microwave Tube Furnace Used In Synthesis, Firing And Heat Treatment

Summarize

Microwave rotary tube furnace is a standardized rotary atmosphere tube furnace, which is suitable for synthesis, firing, heat treatment, sintering and other processes under various atmosphere conditions, especially for the roasting of new materials, the reaction reduction and synthesis of particles such as lithium ion battery materials.

Main feature

1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;

2) Furnace body and vacuum system integrated design, simple structure, safe and reliable;

3) The material is dynamically turned in the furnace, and the heat is uniform, and the reaction is fast and sufficient; Special insulation structure, energy saving and high efficiency;

4) The time of gas replacement can be greatly saved by using pre-vacuuming method.

5) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved.

Technical parameter

Model Parameter	HY-XZ1510	HY-XZ3010
Voltage	220±10V，50Hz	220±10V，50Hz
Microwave output power	0.01~1.40kW, continuously adjustable (Panasonic)	0.01~2.80kW, continuously adjustable (Panasonic)
Heating space (diameter x length)	φ40x130mm	Φ80x250mm
Microwave frequency	2.45GHz
Tilt Angle	-5~+35°
Rotational speed	5~30 RPM
Operating temperature	≤1100℃
Temperature measurement method	Thermocouple/infrared
Static limit vacuum	≤100Pa
Atmosphere system	Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc
Control mode	Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)
Control program	Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven
Anti-microwave leakage	Microwave leakage level <1mW/cm2
Safety protection	Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm
Main body (L x W x H)	About 650x700x1200mm		About 850x850x1300mm

Consumables and optional accessories

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
