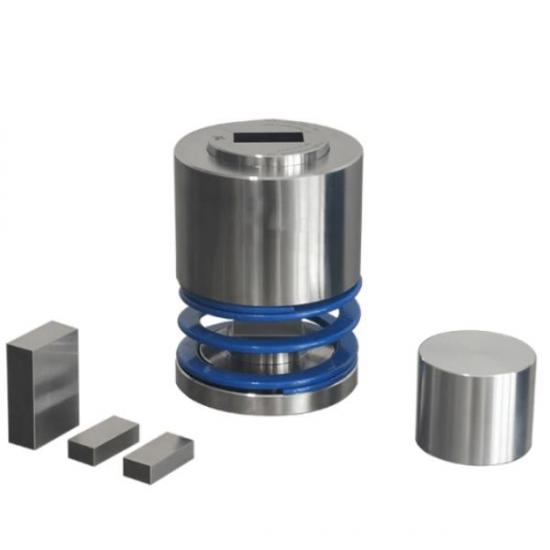

Lab Square Two-way Pressure Open-flap Punch Pressing Die
Parameter
|
Model |
TMAX-PMS |
|
Compressed sample shape |
|
|
Mold material |
Alloy tool steel: Cr12MoV |
|
Indenter hardness |
HRC60-HRC62 |
|
Sample size |
12*12、15*15、18*18、20*20mm(M) |
|
Cavity depth |
40mm(N) |
|
Dimensions |
Φ88*175mm(L*H) |
|
Mold weight |
3.0kg |
|
Dimension diagram |
|
Schematic Diagram of Mold Operation

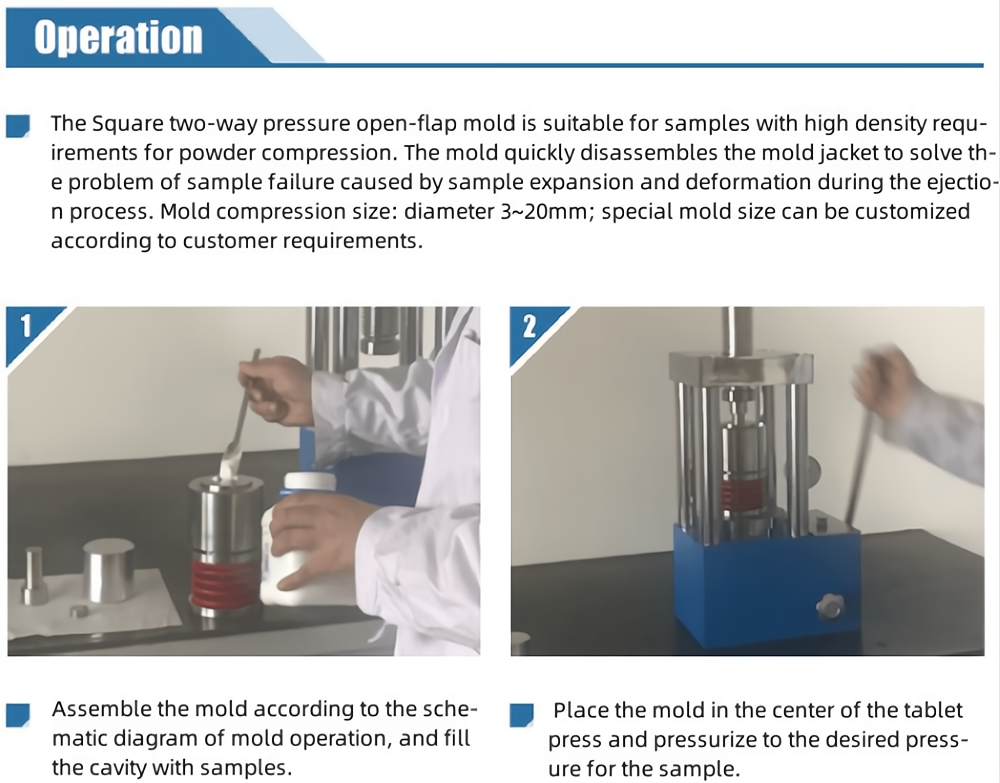

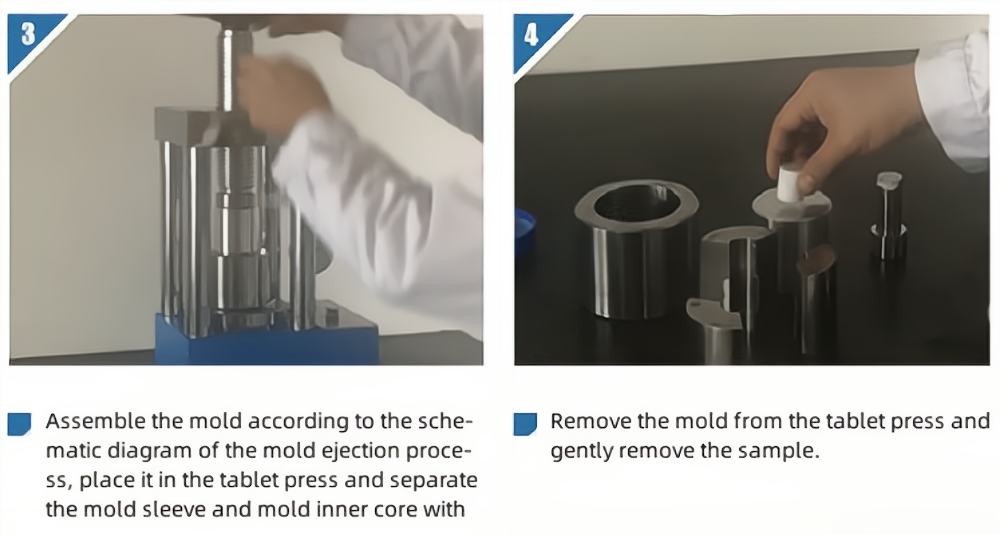

Mold sample preparation operation steps

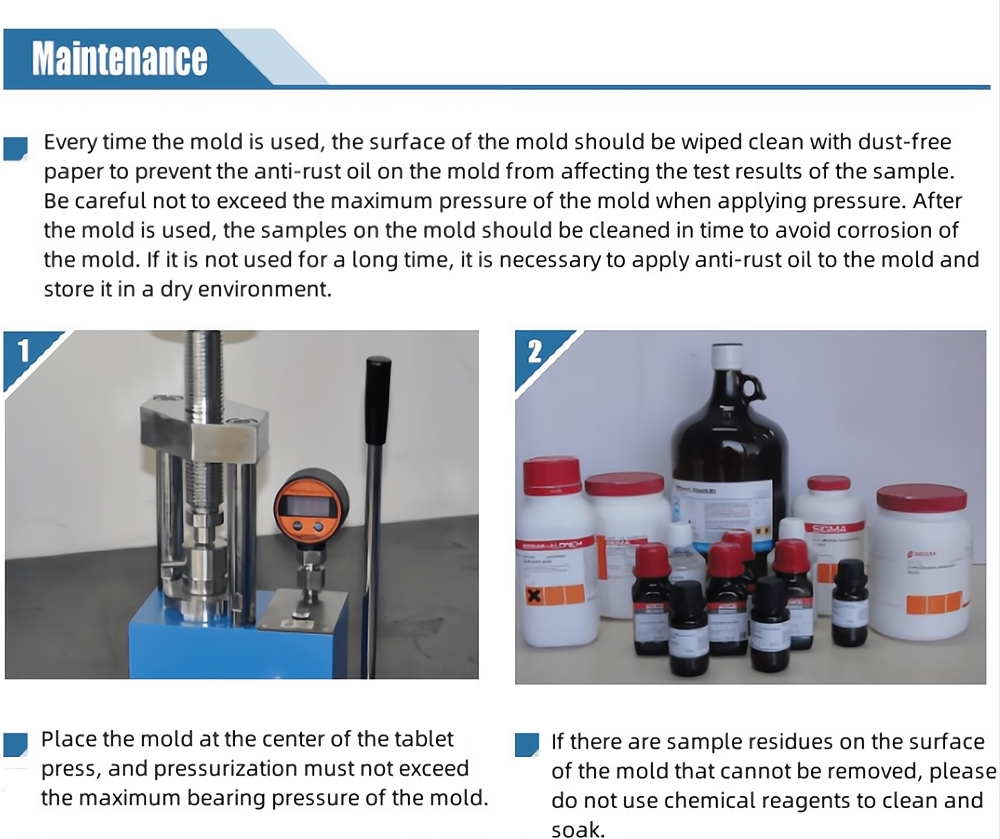

Mold use and maintenance
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
