3-10mm Lab Square Open-flap Punch Press Die Alloy Tool Steel Mold

3-10mm Lab Square Open-flap Punch Press Die Alloy Tool Steel Mold

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-PMK-FA
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

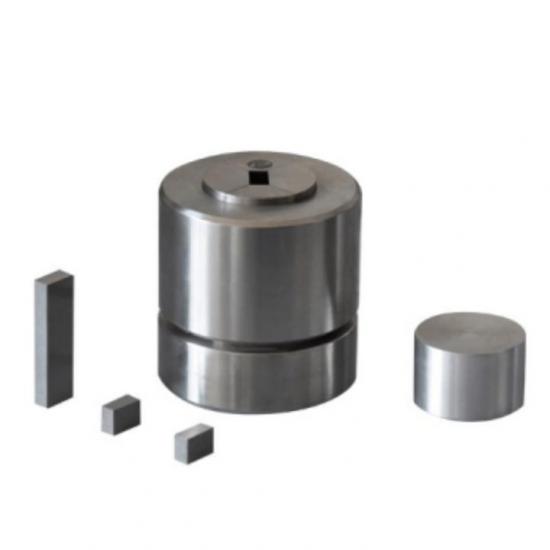

3-10mm Lab Square Open-flap Punch Press Die Alloy Tool Steel Mold





Square Open-flap Punch Press Die


Parameter

Model

TMAX-PMK-FA



Compressed sample shape



Mold material

Alloy tool steelCr12MoV

Indenter hardness

HRC60-HRC62

Sample size

3*34*45*56*68*810*10mm(M)

Cavity depth

30mm(N)

Dimensions

Φ53*120mm(L*H)

Mold weight

1.2kg





Dimension diagram

Square Open-flap Punch Press Die

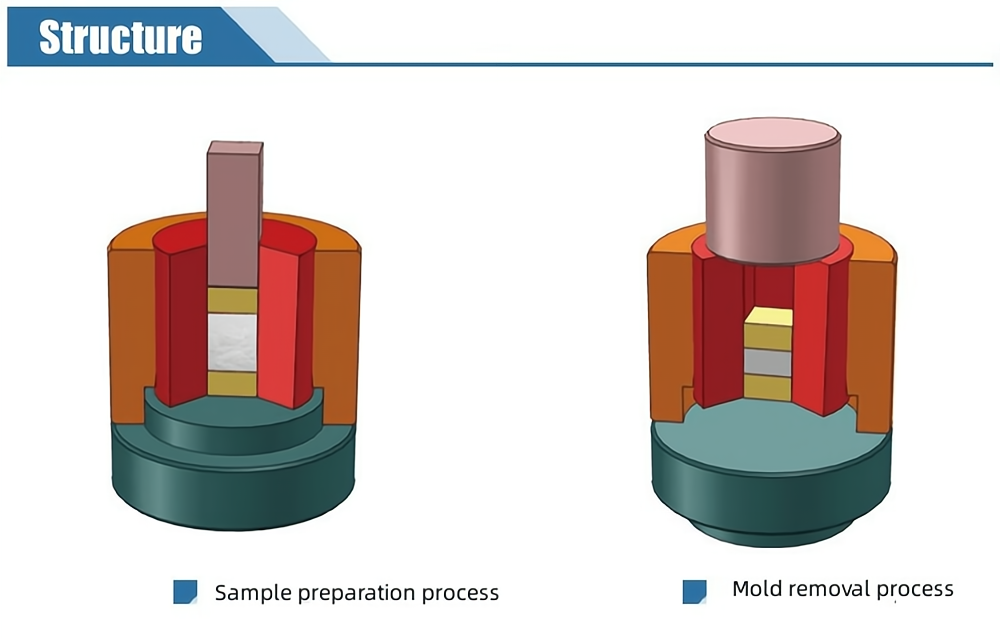

Schematic Diagram of Mold Operation

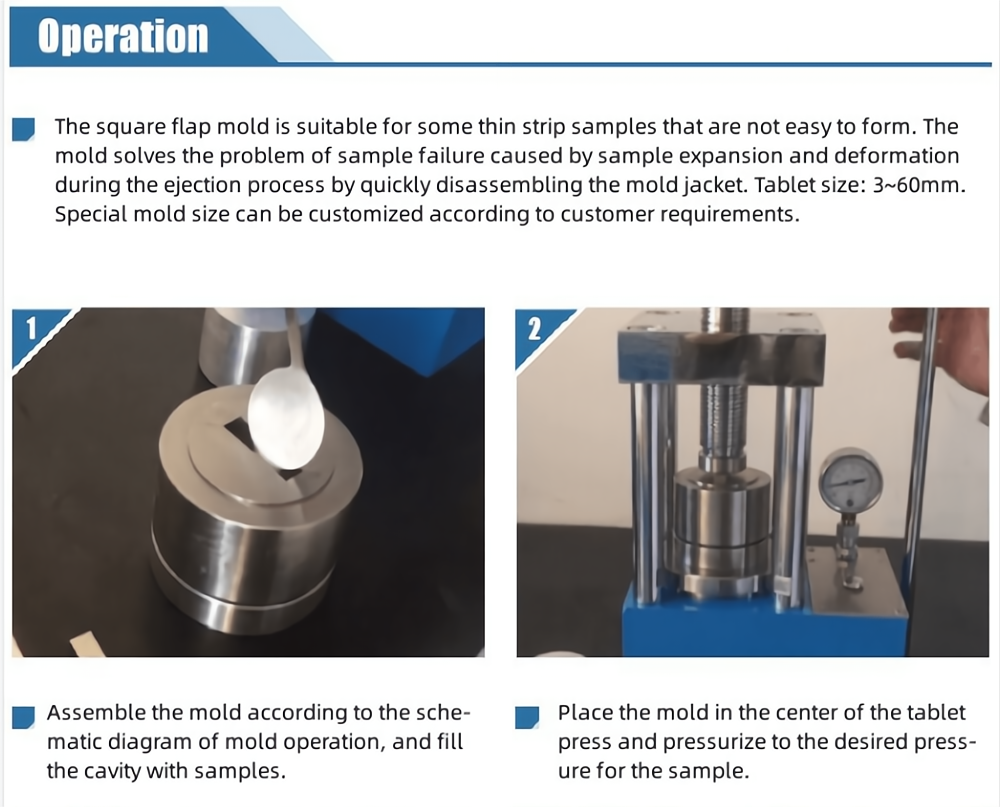

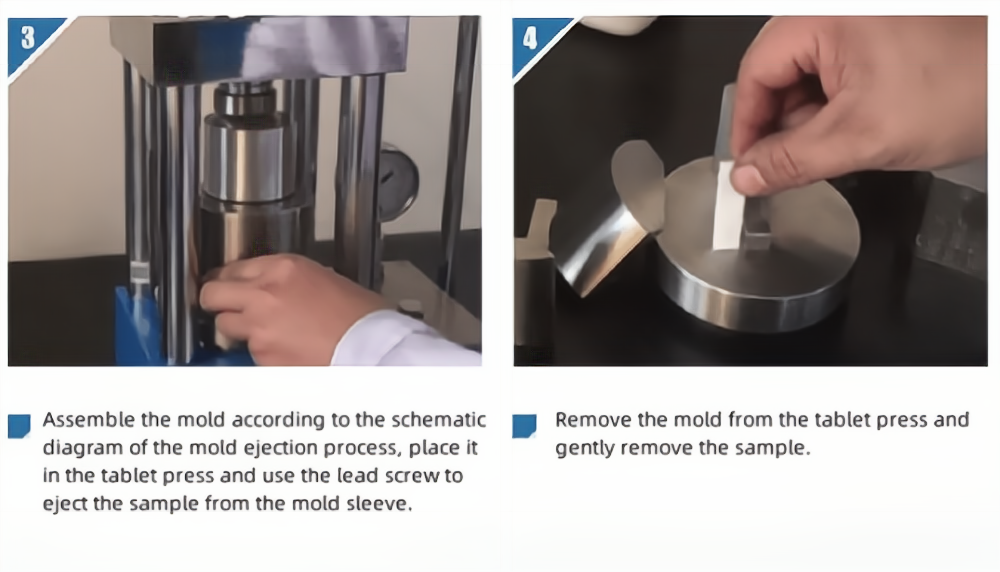

Mold sample preparation operation steps

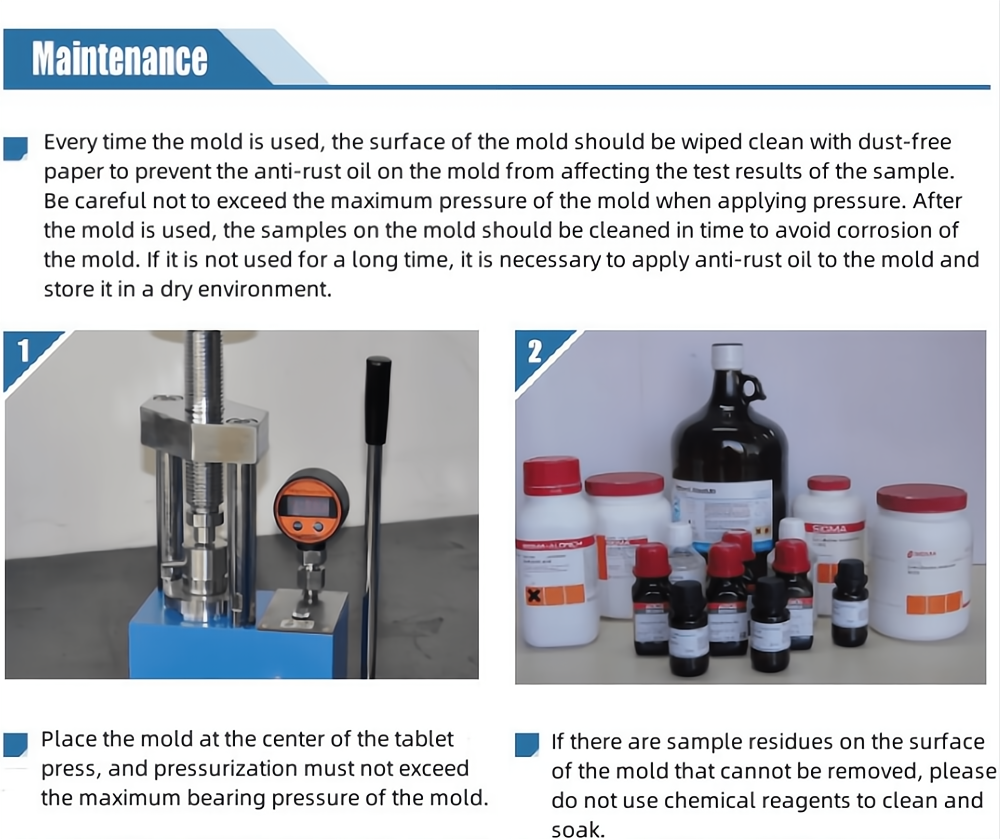

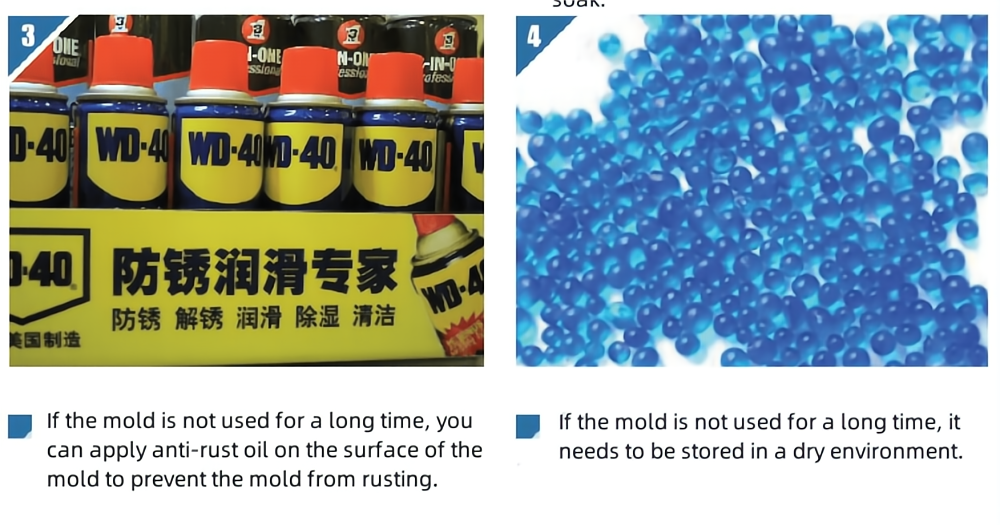

Mold use and maintenance





 Tmax CE TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
