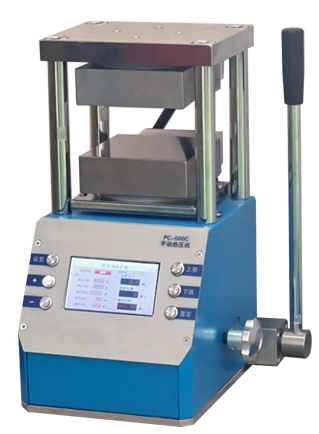

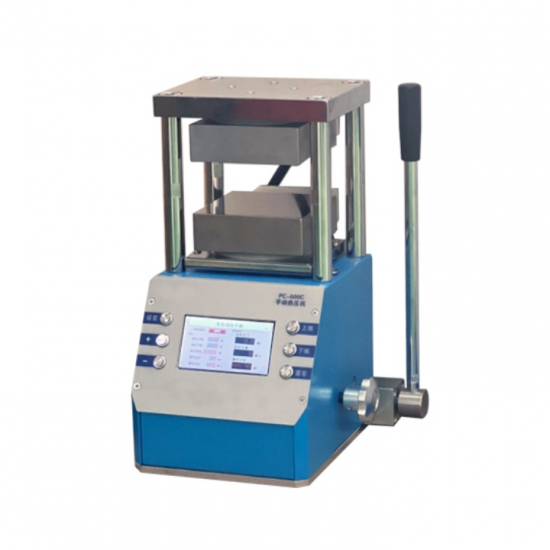

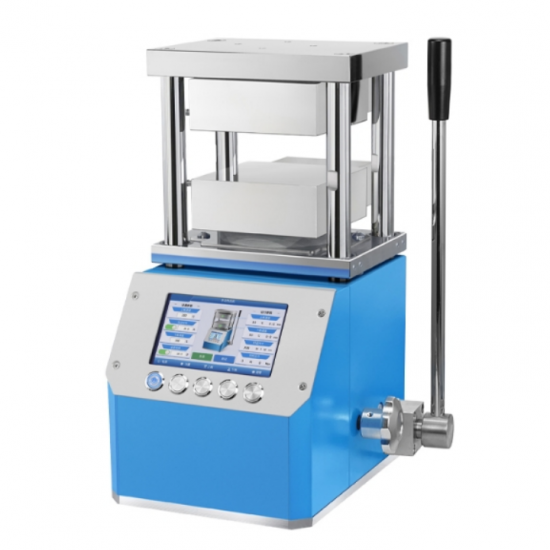

Lab Small Tonnage Integrated Manual Hot Press with 120x120mm Heating Plate

Lab Small Tonnage Integrated Manual Hot Press with 120x120mm Heating Plate

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-PC-600C
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

Lab Small Tonnage Integrated Manual Hot Press with 120x120mm Heating Plate

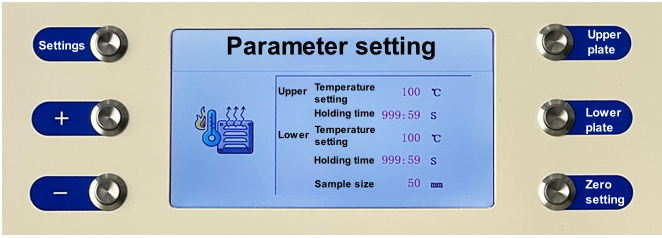

Setting interface



Settings

Under the operation interface, press the setting button to enter the setting interface, press the setting button again, move the setting content, move to the mold diameter, press the setting button again to return to the operation interface. Note: When the time is set to "0", the setting time is infinite.

+

On the operation screen, press the + key to add the number.



-

On the operation screen, press _ to reduce the number of Settings.

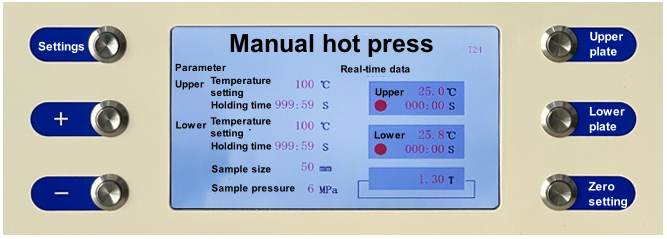

Operating interface



Upper plate

Press the "Upper plate" button in the operation interface, and when the upper heating plate starts to heat to the set temperature, the timer starts to record the time and starts to maintain the constant temperature. When the timer is over, stop the heat. Or press the "Upper plate" button again to stop heating the upper heating plate.  During the heating process, all setting buttons are invalid.



Lower plate

Press the "Lower plate" button in the operation interface, and after the lower heating plate starts to heat to the set temperature, the timer starts to record the time and starts to maintain the constant temperature. When the timer is over, stop the heat. Or press the "Lower plate" button again to stop heating the Lower heating plate.  During the heating process, all setting buttons are invalid.



Zero setting

If the sample is not in contact, but the device has shown pressure, it may be the weight of the heating plate, we can press the "zero" button to clear the pressure. To make our samples more accurate.

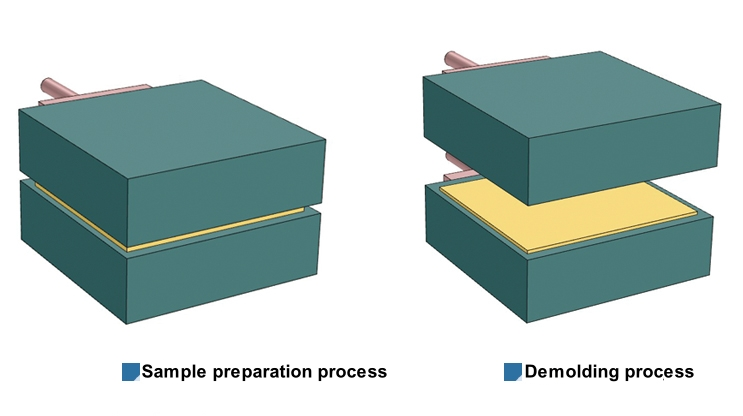

Mold operation diagram

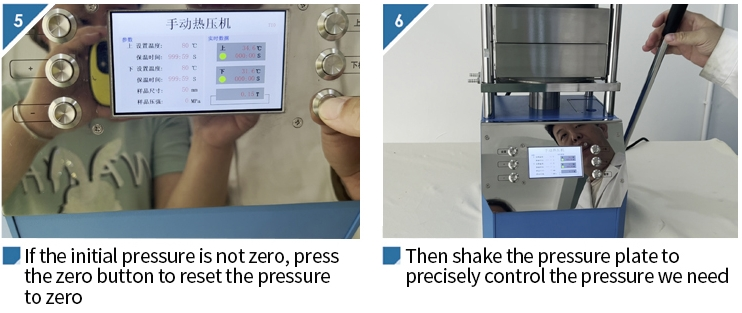

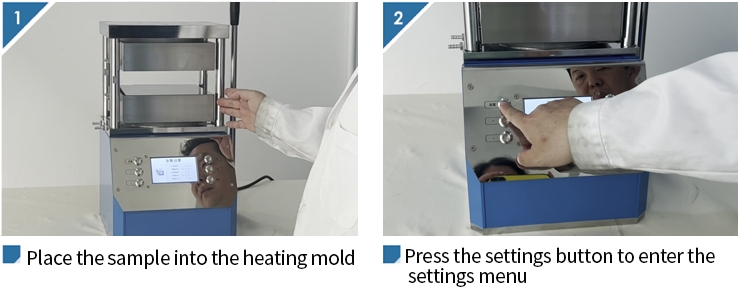

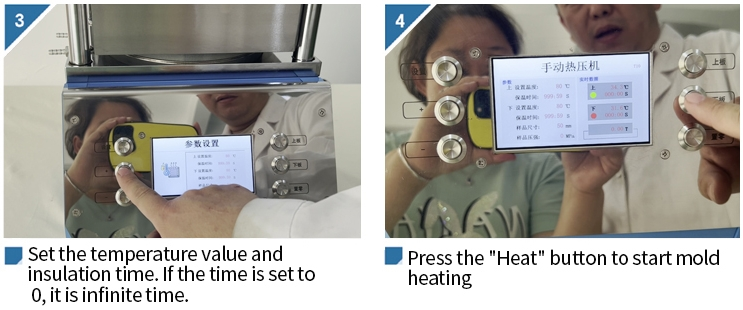

Operation procedure







Technical parameter

Instrument type

PC-600C(300.0℃)/PC-600CG(500.0)

Pressure range

0-5.0 tons

Piston diameter

Chrome plated cylinder Φ50mm(d)

Overall structure of subject

The equipment has no sealed connection to reduce oil leakage points

Mold heating temperature

Room temperature -300.0℃/500.0℃

Constant temperature time

1 s to ∞ s

Temperature control accuracy

0.1 ℃

Heat insulation method

Imported heat shield

Cooling method

Water cooling rapid cooling [optional water cooler]

Mold size

Double plate heating 120x120mm(MXN) with lead screw

Work space

140x140x60 mm

Overall size

250x230x390 mm(LxWXH)

Power source

700 W(220V/110V can be customized)

Main engine weight

55 Kg

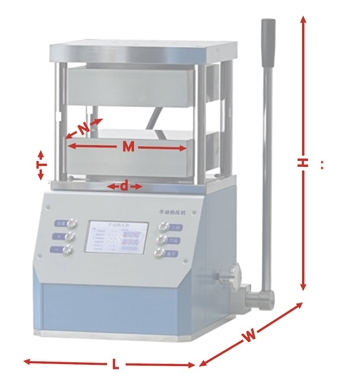

Powder tablet press size diagram


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
