Instrument type

PCD-60S

Pressure range

0-60T(0-33Mpa)

Piston diameter

Chrome plated cylinder Φ150mm(d)

Overall structure of machine

Utility model patent 2013 2 0040218.0

Manometer

Digital display 0.0 to 40.0MPa

Maximum piston stroke

50mm(T)

Pressure stability

≤1MPa/10min

Pressurization mode

Electric pressurization/manual pressurization

Supplementary pressure mode

Automatic pressure replenishment/manual slow pressure

Table diameter

Ф160mm(D)

Number of columns

4 columns

Column spacing

185X250mm(MXN)

Overall dimension

405X470X565mm(LxWXH)

Power source

220V(50Hz/60Hz)

Equipment weight

140Kg

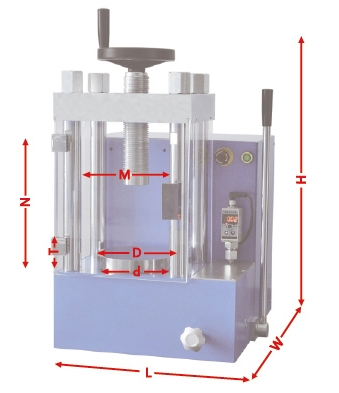

Powder tablet press size diagram

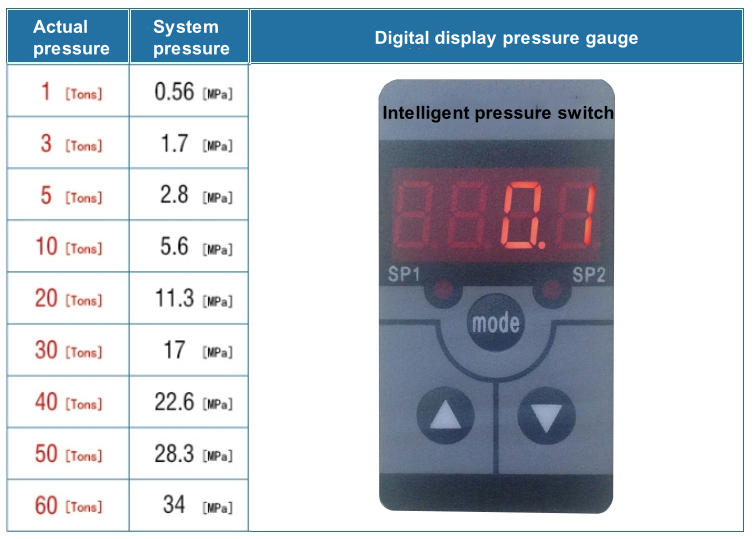

Actual pressure

System pressure

Digital display pressure gauge

1 [Tons]

0.56 [MPa]

3 [Tons]

1.7 [MPa]

5 [Tons]

2.8 [MPa]

10 [Tons]

5.6 [MPa]

20 [Tons]

11.3 [MPa]

30 [Tons]

17 [MPa]

40 [Tons]

22.6 [MPa]

50 [Tons]

28.3 [MPa]

60 [Tons]

34 [MPa]
