Perovskite Solar Cell Research Equipment Line

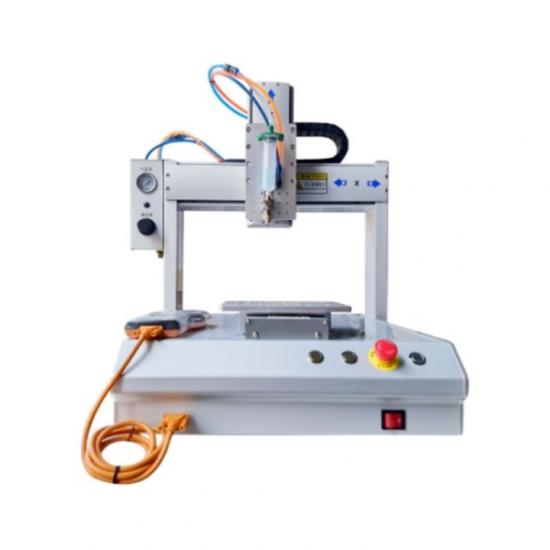

Lab Programmable Automatic Dispensing Machine with Silver Linear Double Guide or Steel Wire Synchronous Transmission Mode

Lab Programmable Automatic Dispensing Machine with Silver Linear Double Guide or Steel Wire Synchronous Transmission Mode

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

  • Item No.:

    TMAX-KT-DJ331
  • Certificate:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
Product Details

Lab Programmable Automatic Dispensing Machine with Silver Linear Double Guide or Steel Wire Synchronous Transmission Mode






Technical parameter

Model name

KT-DJ331 automatic dispensing machine

Motion range X/Y/Z(mm)

300/300/100

Programming mode

Teach programming or graphic import

Movable graphic trajectory

Point, line, arc, circle, curve, multi-segment line, helix, ellipse

Maximum load

Z-axis 3kg/ Y-axis 5KG

Moving speed (mm/sec)

0-300.

Equipment repetition accuracy

±0.02mm

Dispensing type

30ML cartridge type

Control mode

Handheld instructional programming box

Glue repetition accuracy

±0.005% (depending on fluid consistency)

Number of program records

≤999 group

Fixed mode

Z-axis and Y-axis are equipped with multi-function plates

Motor type

Leiser drive/stepper motor

Transmission mode

Silver linear double guide + steel wire synchronous belt three-axis linkage

Input power supply

Full voltage AC110V ~ 220V

External control interface

RS232

Overall dimension

600*620*650

Weight (kg)

About 60KG
