Lab Polygonal Mold

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-PM
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

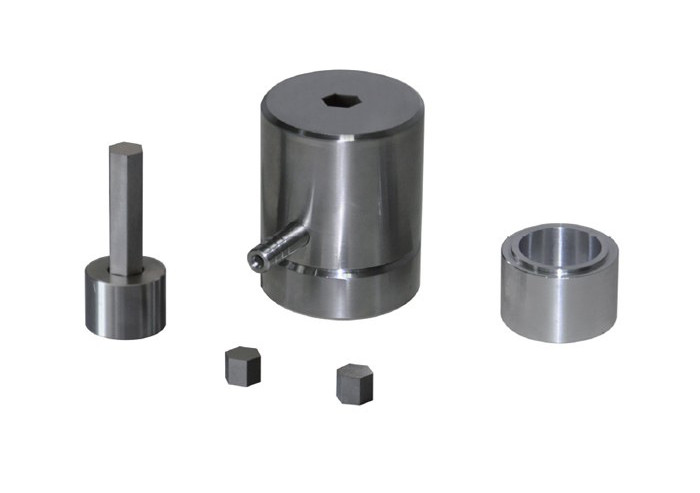

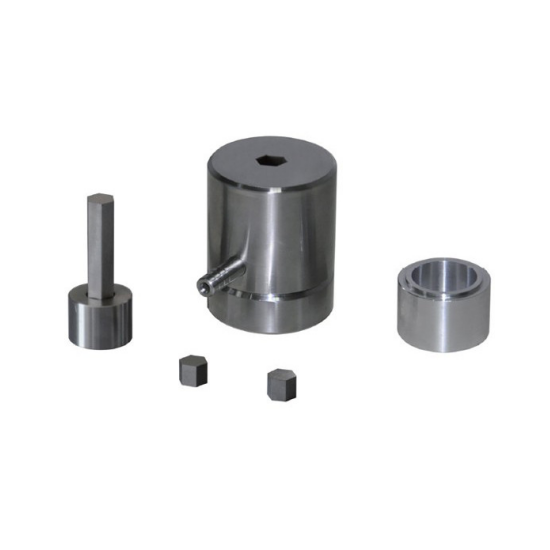

Lab Polygonal Mold

The polygonal mold used in the laboratory is to press the powder sample material into a polygonal sample through this mold, such as triangle, pentagon, hexagon, semicircle, etc. The commonly used tablet size is 3-20mm. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.

Specifications

Name	Polygonal mold
Actual drawing of molding sample
Actual drawing of molding sample
Compressible sample shape	Polygon, semicircle or other shapes
Common mold specifications	Between 3-20m
Mold material	Alloy tool steel: Cr12MoV (can be customized hard alloy steel)
Hardness of die indenter	HRC60-HRC62
Mold cavity depth	40mm
Mould dimensions	Ф53×120mm
Mould weight	1.4kg
Calculation formula of die pressure	Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks	Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
