300℃ Lab Rectangular Electric Heating Mold With Temperature Controller

300℃ Lab Rectangular Electric Heating Mold With Temperature Controller

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-REHM
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

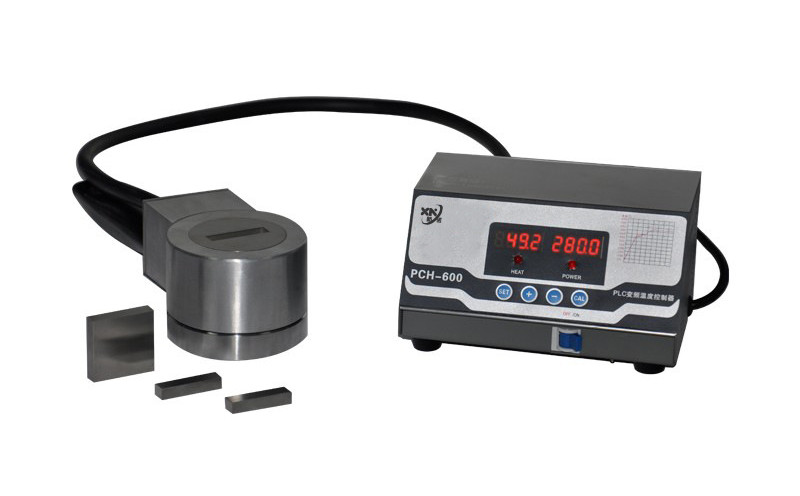

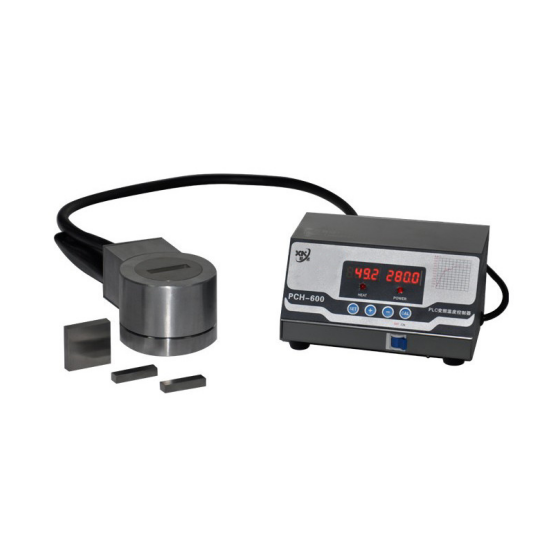

300℃ Lab Rectangular Electric Heating Mold With Temperature Controller


Rectangular electric heating mold is a kind of heating mold developed on the basis of ordinary square mold that can heat and press mold samples through intelligent temperature controller to control temperature. This type of mold can be used to press powder or granular samples into rectangles, strips, squares, triangles and other shapes through a press. The specific mold size and shape can be customized according to customer needs. Suitable for rubber, plastics, leather, chemicals, paints, electronic appliances, textiles, hardware and other major fields. It is a qualitative supporting equipment for the engineering and technical personnel of various universities, colleges and research institutes to carry out spectral detection and analysis.
Standard configuration: usually 1 set of rectangular electric heating mold + 1 set of high temperature insulation board + 1 temperature controller. Tablet press and water cooler are optional. If the mold needs to be cooled quickly after heating, it is recommended to configure a water cooler. If you need to purchase a tablet press separately, it is recommended to directly purchase our RYJ-600 series electric heating tablet press, so that users can operate and experiment more conveniently.


Specifications

Name

Cylindrical electric heating mold

Actual drawing of molding sample



Compressible sample shape

Rectangle, long strip, square, triangle, etc., other shapes are customized

Mold heating temperature

RT-300℃(500℃ high temperature mold can be customized)

Thermostat type

PLC program digital temperature controller, room temperature -600.0℃, accuracy 0.1℃

Power

220V/300W

Common mold specifications

Usually within 3-40mm, length and width are customized

Mold material

Alloy tool steel: Cr12MoV (can be customized hard alloy steel)

Hardness of die indenter

HRC60-HRC62

Mold cavity depth

45mm

Mould dimensions

Ф90×138mm

Mould weight

3.2kg

Standard configuration

1 set of electric heating mold + 1 set of heat insulation board + 1 set of smart thermostat (tablet press and water cooler are optional)

Calculation formula of die pressure

Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!

Mould remarks

Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

Product Images


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
