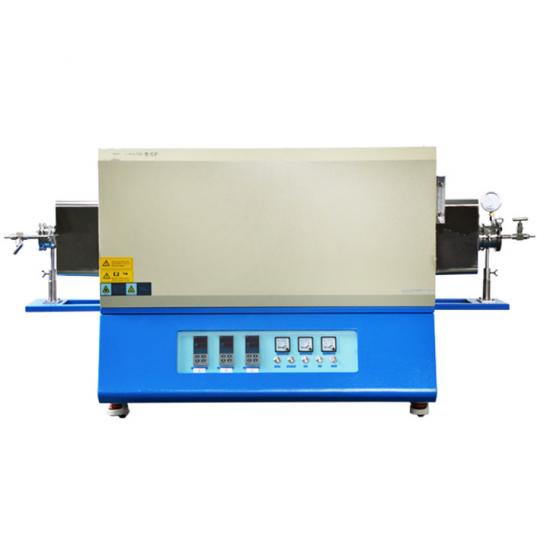

Lab High Temperature 1700-1700-1700C Three Zone Tube Furnace for Atmosphere Sintering

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-1700-1700-1700t
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Lab High Temperature 1700-1700-1700C Three Zone Tube Furnace for Atmosphere Sintering

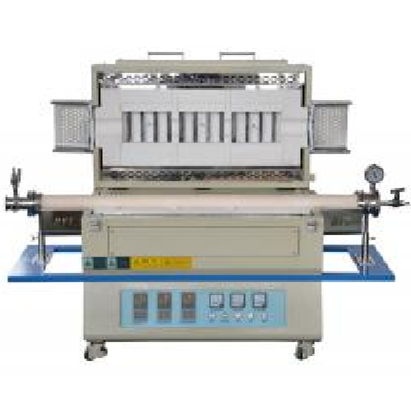

This tube furnace has three heating zones, adopts a double-layer shell structure and an electronic temperature control instrument. Each heating zone can carry out 50 sections of program temperature control. Phase shift trigger, SCR control. The furnace is made of alumina polycrystalline fiber material. Both ends of the furnace tube are equipped with stainless steel flanges. The stainless steel flange is equipped with gas nozzles, valves and pressure gauges, and the vacuum degree can reach 10-3 Pa when vacuuming. The furnace is horizontal, and the three temperature zones can be independently controlled and set to different temperatures. It is convenient to use and simple to operate. The furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall, and energy saving. It is an ideal product for high-temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing in universities, scientific research institutes, and industrial and mining enterprises.

Detailed technical parameters

Model	TL1700-1700-1700-I	TL1700-1700-1700-II
Power	10.5KW	10.5KW
Tube size（mm）	High purity corundum tube: 60/80*1500mm (tube diameter is optional) Two furnace plugs are placed on each side. The furnace plug can block the heat radiation in the center of the furnace tube and must be placed in the correct position of the furnace before heating.
supply voltage	380V
phase	Three Phase
heating element	Model 1800 silicon molybdenum bar
control mode	Use Yudian program temperature control instrument (standard) 1. 30-segment program temperature control intelligent PID adjustment. 2. With over-temperature protection, the electric furnace heating circuit will be automatically cut off when the temperature is over-temperature or when the couple is broken. ON, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected). 3. With 485 communication interface (standard with optional software) 4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the furnace temperature when the power is off. 5.The meter has the function of temperature self-tuning (you need to pay extra for the replacement of imported instruments, optional) FP93 instrument EUROTHERM instrument Touch screen instrument (shimaden, Japan)
Chamber material	1. High-quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration. 2. It is formed by Japanese technology, does not drop slag, and has good heat preservation.
control precision	+/- 1℃
trigger	Phase-shifted trigger
electric appliance	Zhejiang chint
silicon controlled	106/16E SEMIKRON
Max.temp in 1,2,3 zones	1700℃
Rated temp in 1,2,3 zones	1650℃
heating rate	≤20℃/ Min(Can be modified as required)
Recommended rate of heating	≤10℃/ Min
Thermocouple Type	B type
Length of heating section in 1,2,3 zones	210mm+210mm+210mm
Length of constant temperature section in 1,2,3 zones	500mm
