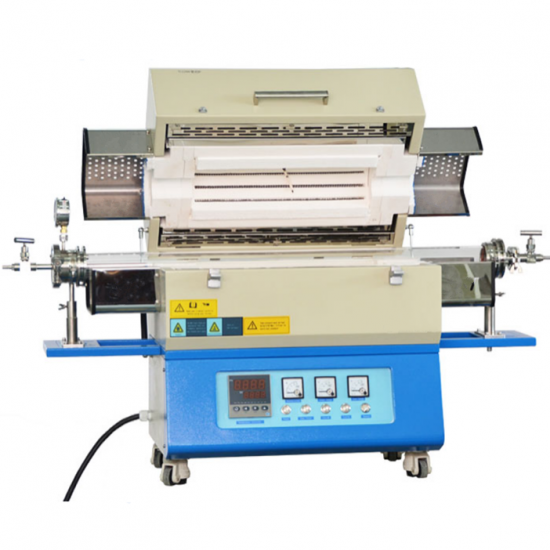

Model

TL1600-I

TL1600-II

TL1600-III

Power

5KW

   5KW

6kw

 Tube size（OD）(mm)

High-purity corundum tube: 60/80/100*1000mm (optional tube diameter)

Two furnace plugs are placed on each side. The furnace plug can block the heat radiation in the center of the furnace tube and must be placed in the correct position in the furnace before heating.

Dimension

1120X490X855

1120X490X855

1120X520X945

supply voltage

                                               220V

phase

                                          single phase

heating element

                     1800 model silicon molybdenum bar

Temperature control type

Use Yudian program temperature control instrument (standard)

1. 30-segment program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit will be automatically cut off when the temperature is over-temperature or when the couple is broken. ON, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected).

3. With 485 communication interface (standard with optional software)

4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the furnace temperature when the power is off.

5.The meter has the function of temperature self-tuning

(you need to pay extra for the replacement of imported instruments, optional)

FP93 instrument                         EUROTHERM instrument                         Touch screen instrument

(shimaden, Japan)

Chamber material

 1. The hearth material is made of high quality alumina polycrystalline fiber.

2. The surface of the inner furnace is coated with imported 1800 degree high temperature alumina coating, which can increase the emissivity and make the temperature field more balanced.

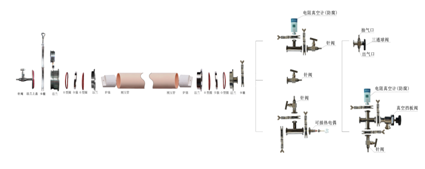

Valves and flanges

control precision

                                                      +/- 1℃

trigger

                                            Phase-shifted trigger

electric appliance

                                                 Zhejiang chint

silicon controlled

                                              106/16E SEMIKRON

Max. temp

                                                    1600℃

Rated temp

                                                    1550℃

heating rate

                   ≤20℃/ Min(Can be modified as required)

Recommended rate of heating

                                           ≤10  ℃/ Min

Thermocouple model

                                                 B Type

Length of heating section

                                                   300mm

Temperature calibration (optional)

Regular temperature calibration of the tube furnace can maintain the accuracy and uniformity of the furnace temperature. You can buy a simple calibration tool from our company to assist you in this task. The complete calibration kit includes standard thermocouples, temperature calibrators, and compensation leads.

Ambient surface temperature

                                                     ≤45℃
