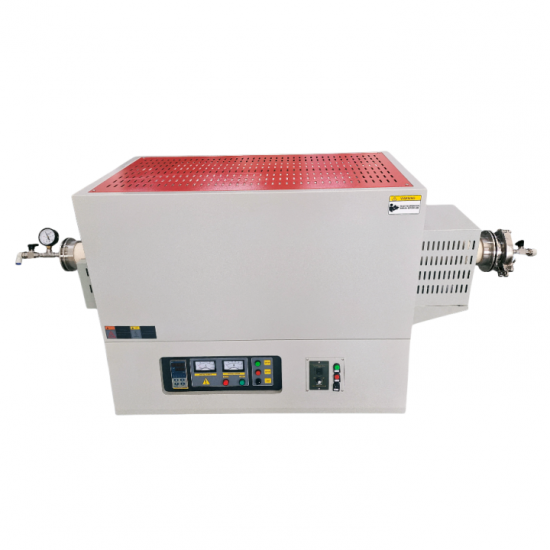

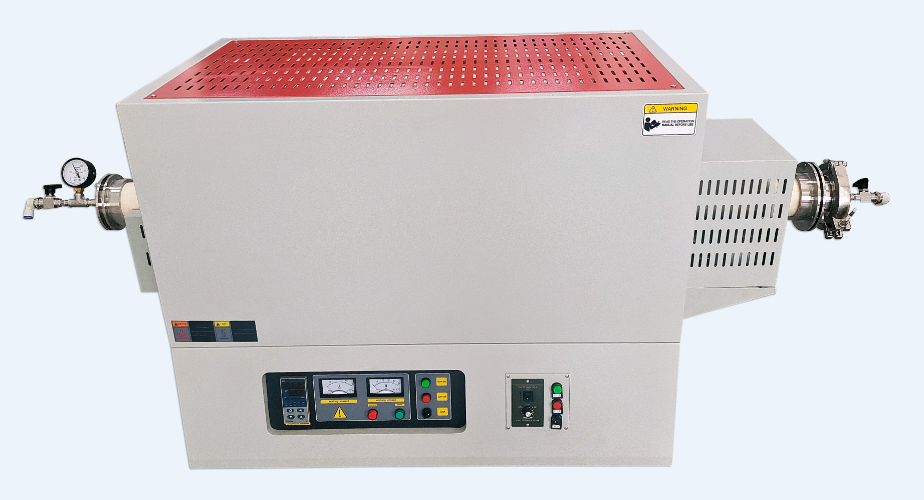

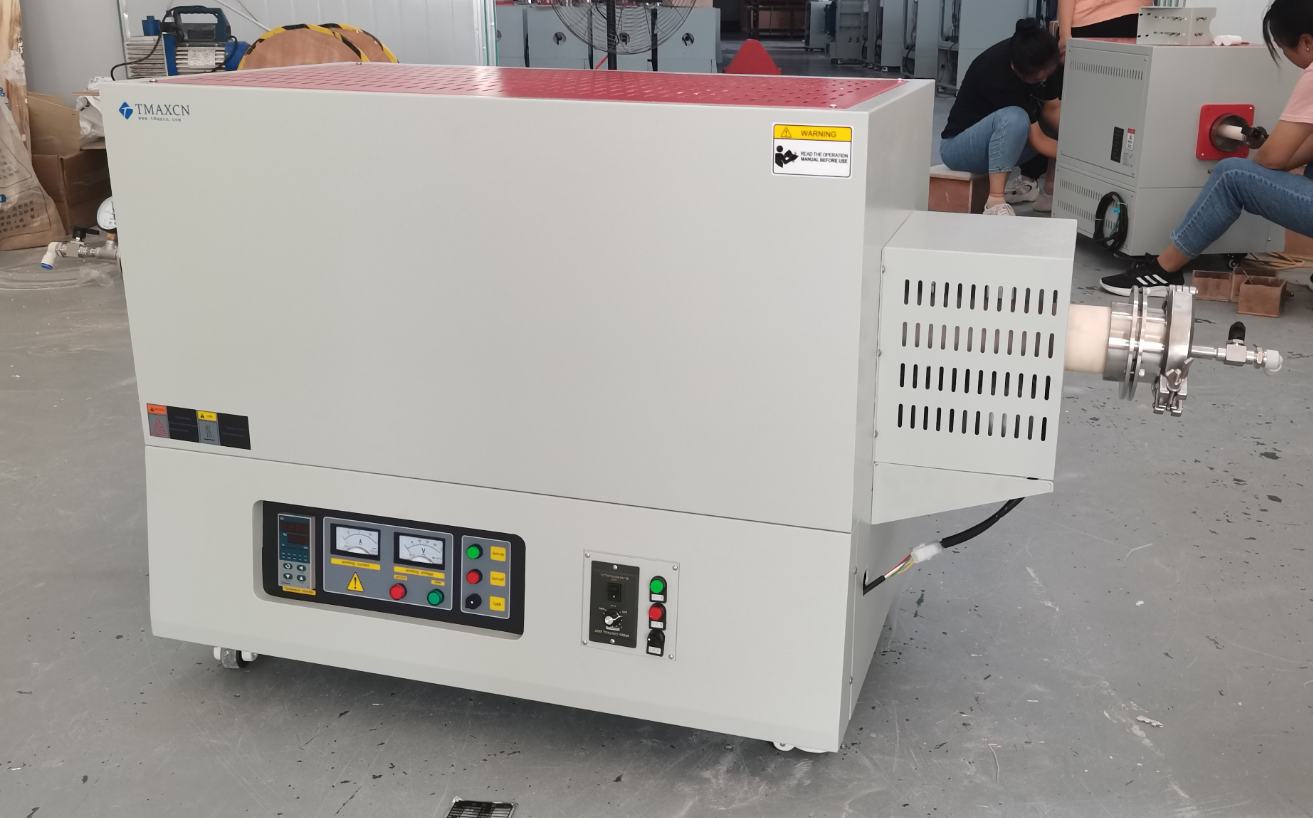

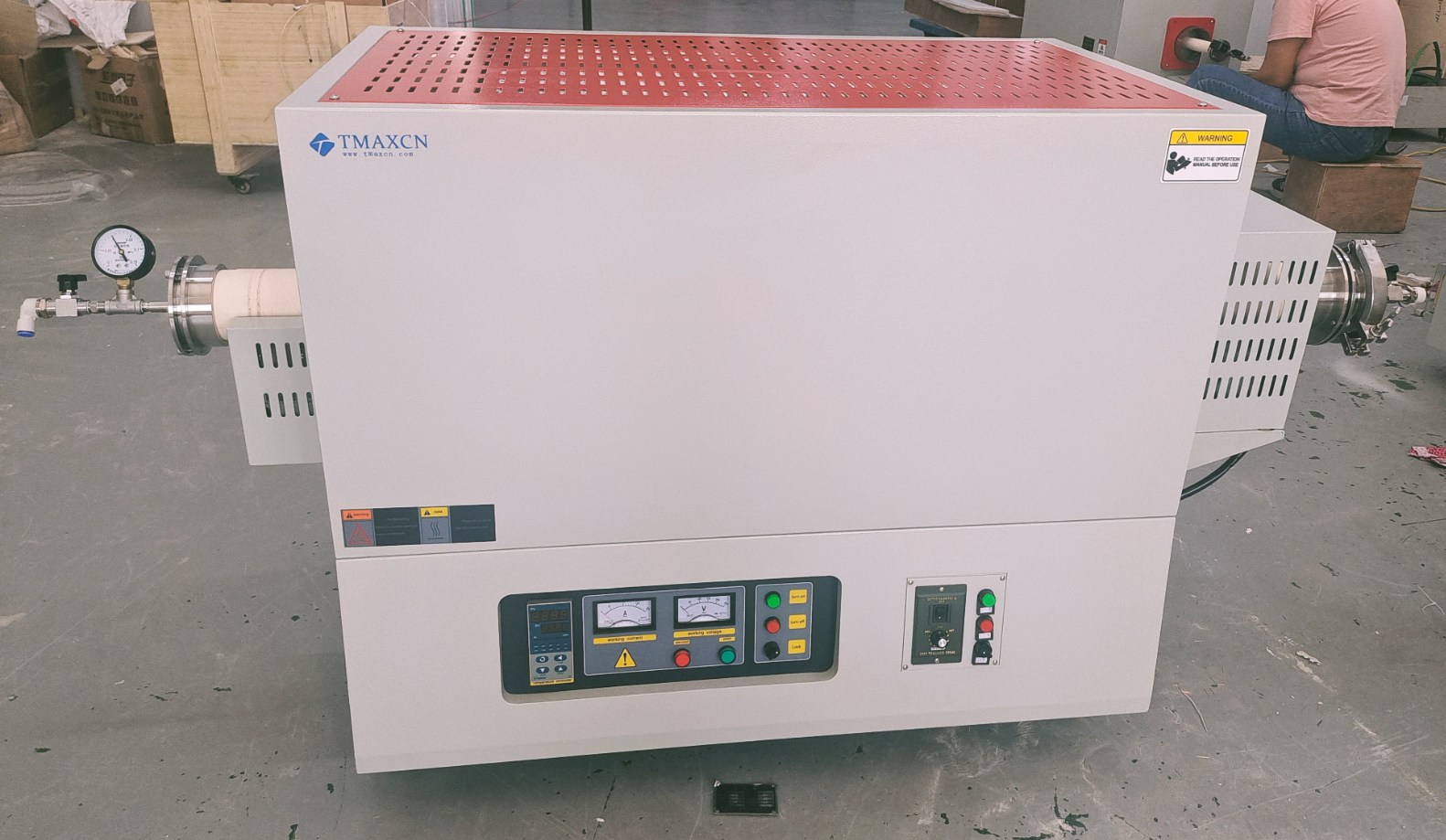

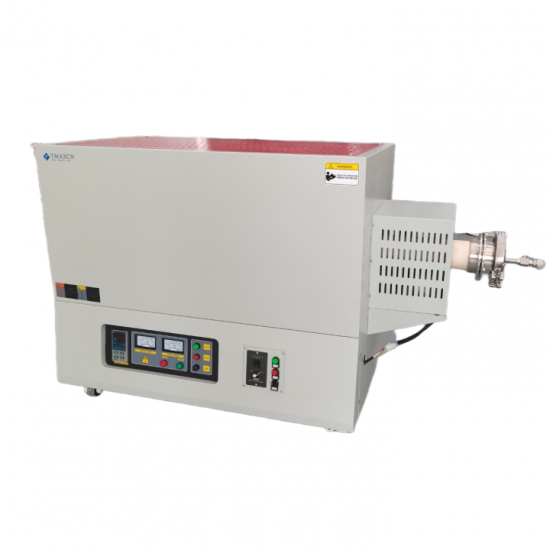

Main parameter

PN: SK2-7-14TPD2

Max.Temp: 1400C

Working temperature:0-1300C

The tube diameter:100mm

Two heating zone,The heating zone length:440mm

Tube material:Alumina tube

Power:7.15kw

Heating rate:0~10 Degree/Min

Voltage:220V,single phase 50/60HZ

Heating element:Sic heater

Thermocouple:S type

Temperature accuracy: ±1℃

Max.vacuum: -0.1Mpa

Rotary system

Tube rotate speed:0-20 RPM

The tube can rotate 360 degrees,electric gear drive

Push button control switch

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump.

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance , no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

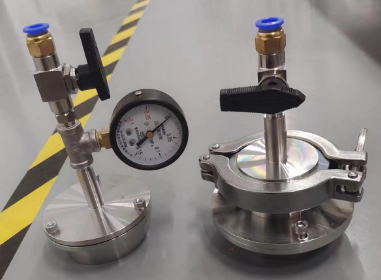

Sealing way

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

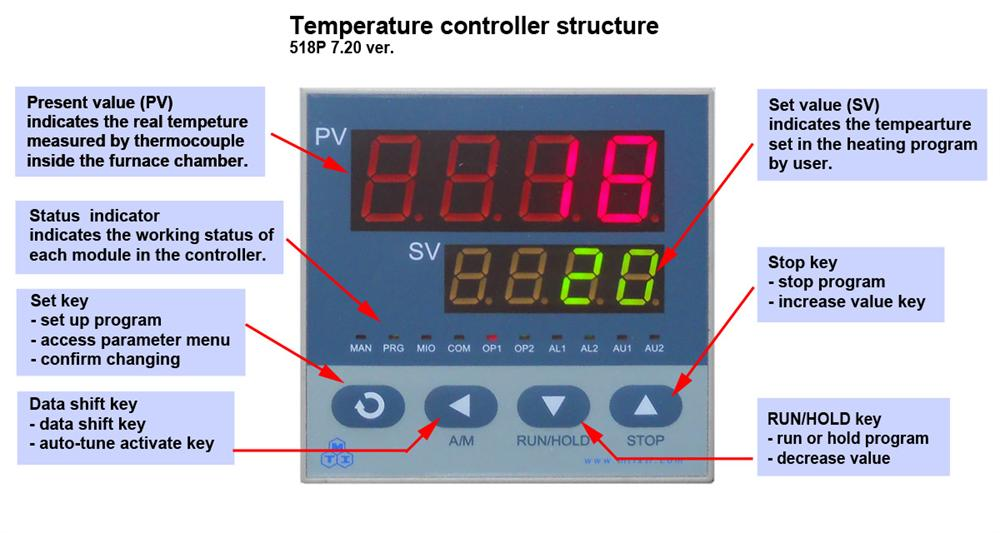

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

Quartz tube

1 pcs

Stainless steel flange

1 set

Rotating gear

1 set

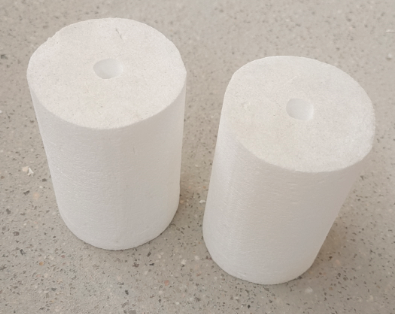

Tube stopper

2pcs

10mm Air tube

1pcs

Spare heating element

2pcs

User manual

1 book
