Lab 40T Automatic Fluorescent Tablet Press

Lab 40T Automatic Fluorescent Tablet Press

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-PP-40X
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

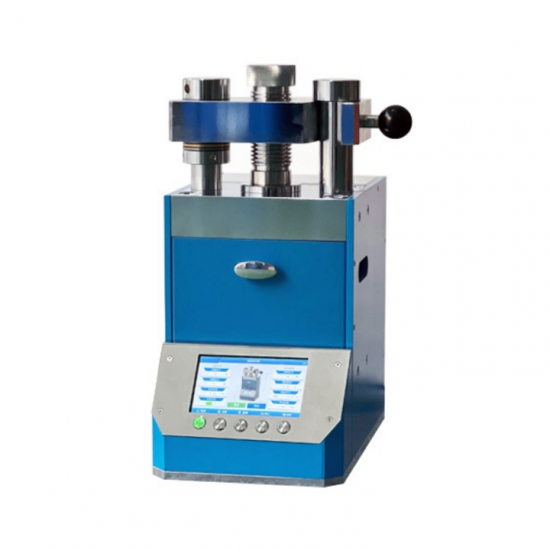

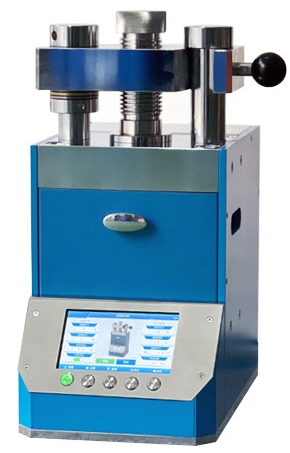

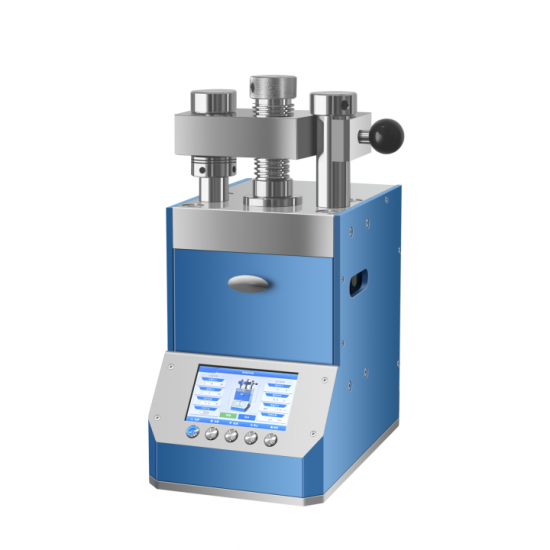

Lab 40T Automatic Fluorescent Tablet Press

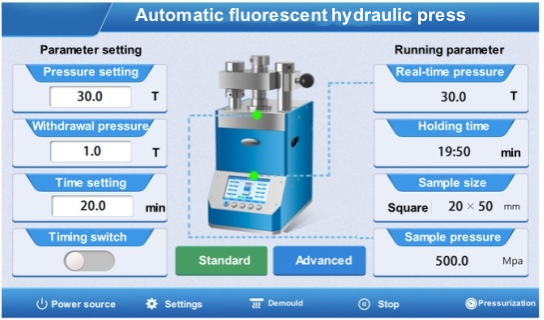

Operation interface (Manual mode)



Standard interface: Various parameters such as pressure, demoulding, time, sample size, etc. can be set in this interface alone.

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.

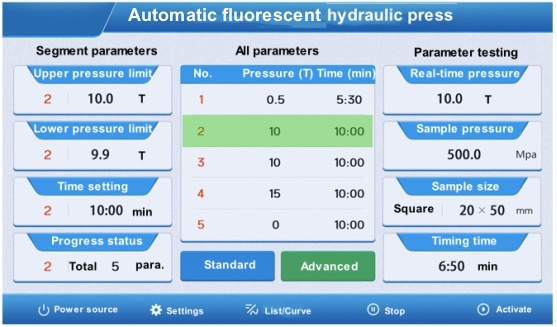

Operation interface (Automatic mode)



Activate button: It can be pressurized according to a multi-stage pressurization program.

Stop button: During the pressurization process, you can stop the pressurization process.

List/Curve: The current display state can be switched between list and curve

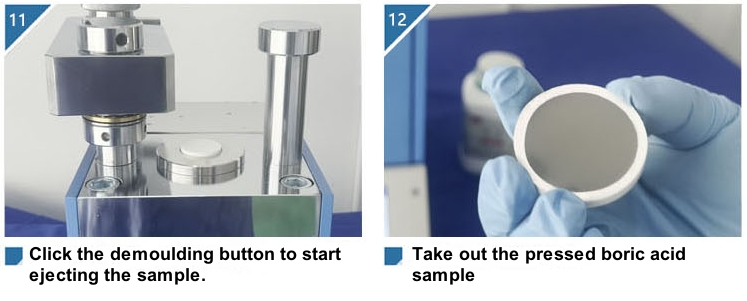

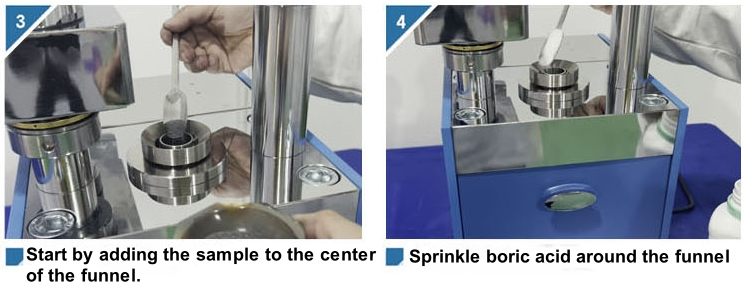

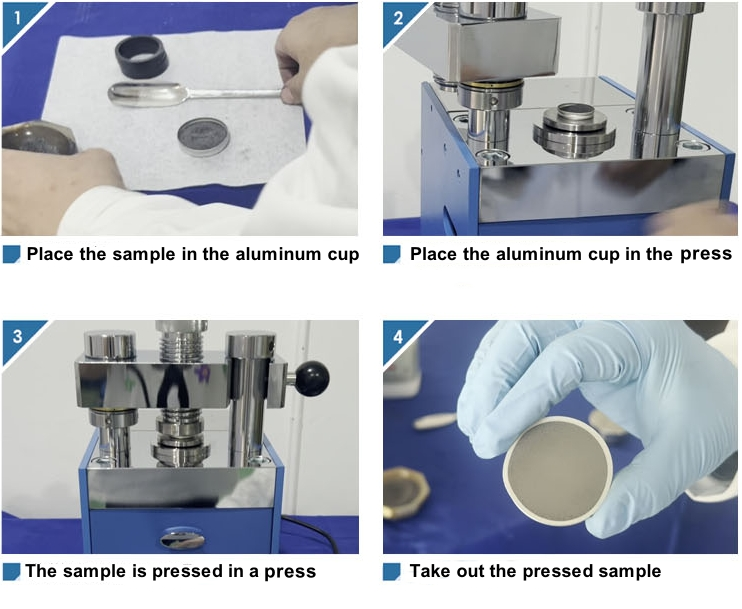

Operation steps (Boric acid mold)

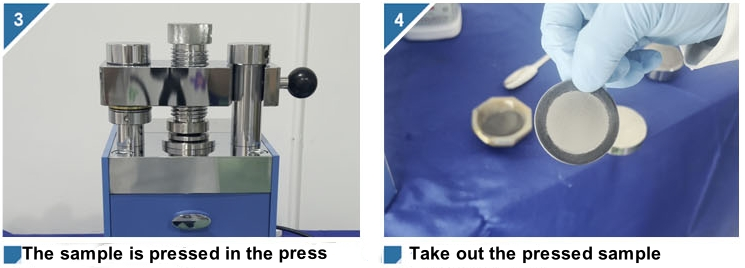

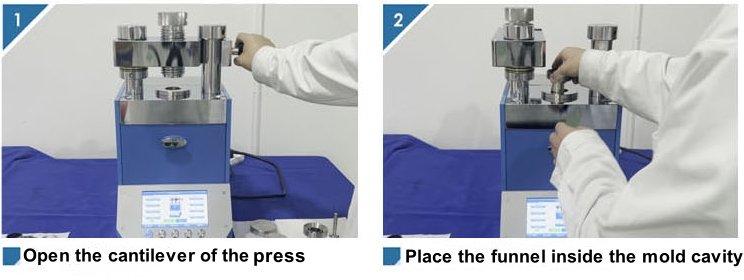

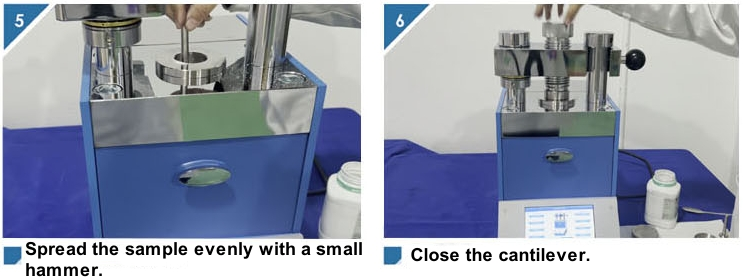

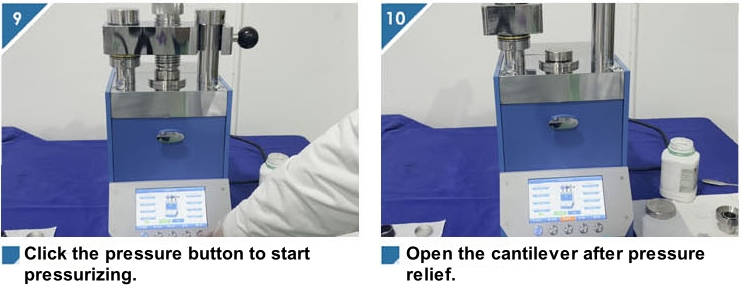

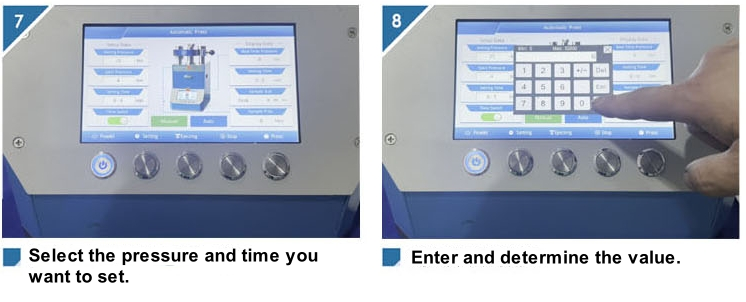

Operation Procedure (Steel ring mold)

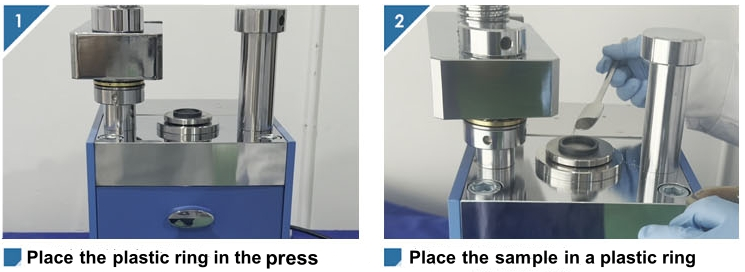

Operation procedure(Plastic ring mold)







Technical parameter

Instrument type

PP-40X

Pressure range

0-40.0 tons

Pressurization process

Common or connected multi-section pressure and can display pressure curves

Holding time

1 s to ∞ s

Pressure conversion

Program automatically converts mold pressure

Liquid crystal display

7 inch (IPS HD) touch screen

Metal keying

Silver-plated contact, service life > 100,000 times

Built-in mold

Boric acid/steel ring/plastic ring mold (built-in 1 set of mold)

Sample size

Standard φ40mm

Mold material

440C mold steel

Demoulding mode

Automatic release

Overall dimension

280X460X550mm(LxWXH)

Equipment power supply

550W(220V/110 can be customized)

Equipment weight

150Kg

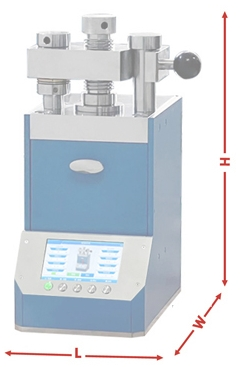

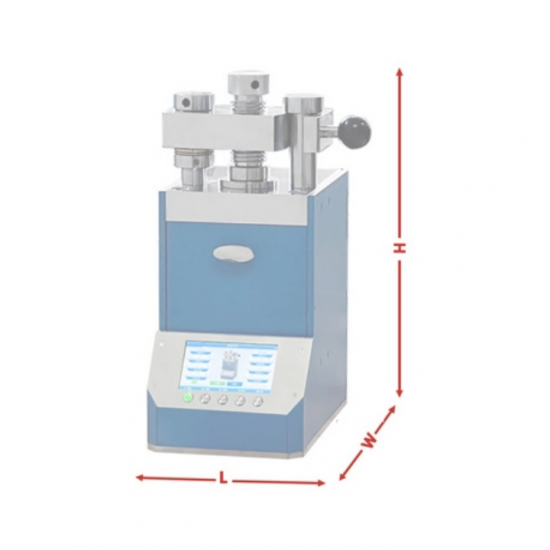

Powder tablet press size diagram



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
