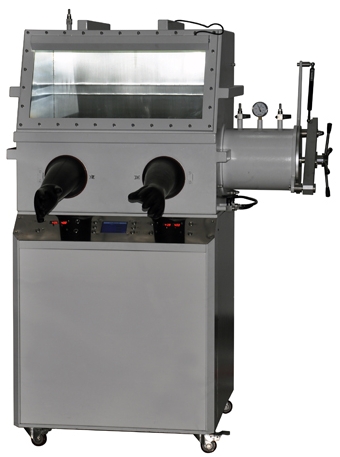

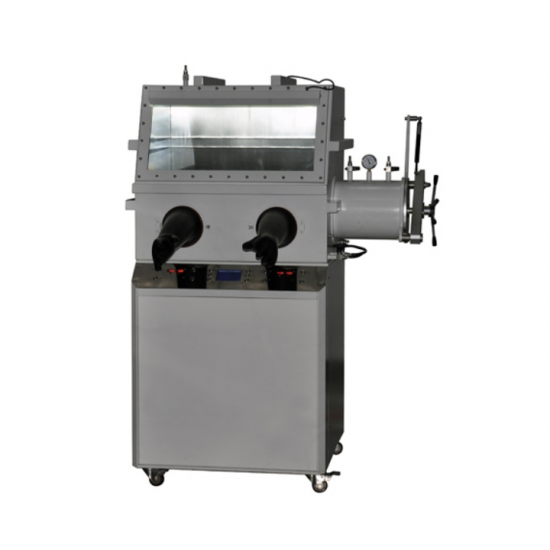

Lab 25T Integrated Type Programmable Vacuum Tablet Press for Glove Box

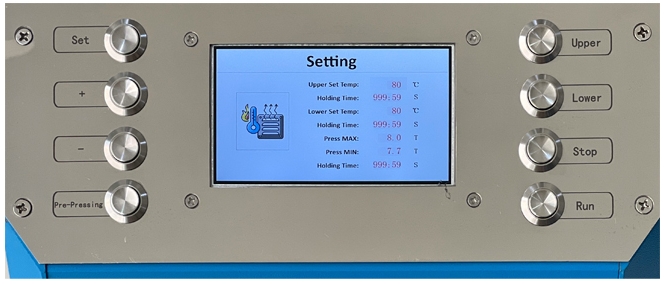

Setting interface

Settings

Under the operation interface, press the setting button to enter the setting interface, press the setting button again, move the setting content, move to the mold diameter, press the setting button again to return to the operation interface. Note: When the time is set to "0", the setting time is infinite.

+

On the operation screen, press the + key to add the number.

-

On the operation screen, press - to reduce the number of Settings.

Pre-pressure

Press the pre-pressure button to close the upper and lower heating plates together

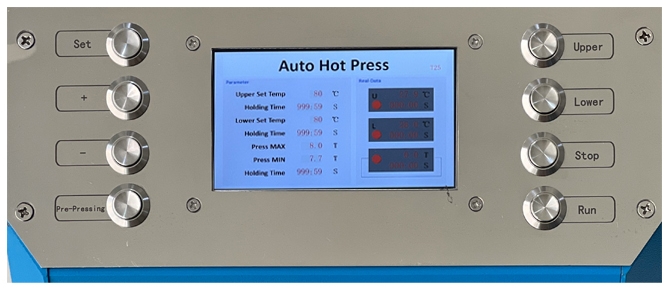

Operating interface

Upper plate

Press the "Upper plate" button in the operation interface, and when the upper heating plate starts to heat to the set temperature, the timer starts to record the time and starts to maintain the constant temperature. When the timer is over, stop the heat. Or press the "Upper plate" button again to stop heating the upper heating plate.  During the heating process, all setting buttons are invalid.

Lower plate

Press the "Lower plate" button in the operation interface, and after the lower heating plate starts to heat to the set temperature, the timer starts to record the time and starts to maintain the constant temperature. When the timer is over, stop the heat. Or press the "Lower plate" button again to stop heating the Lower heating plate.  During the heating process, all setting buttons are invalid.

Stop

When the equipment is running, press the "Stop" button, the equipment will stop the motor operation, and open the pressure relief valve to release the pressure.

Pressure/Run

Press the "Pressure/Run" button, the device will start, when the pressure reaches the set pressure, the press will stop the pressure and time to maintain the pressure, lower than the lower limit of the pressure will automatically fill the pressure, the press will automatically relieve pressure after the end of the timing.

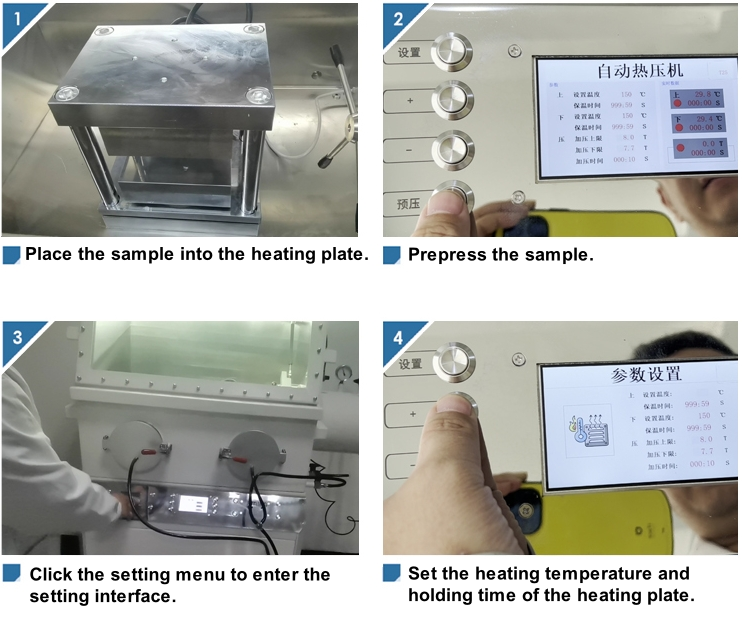

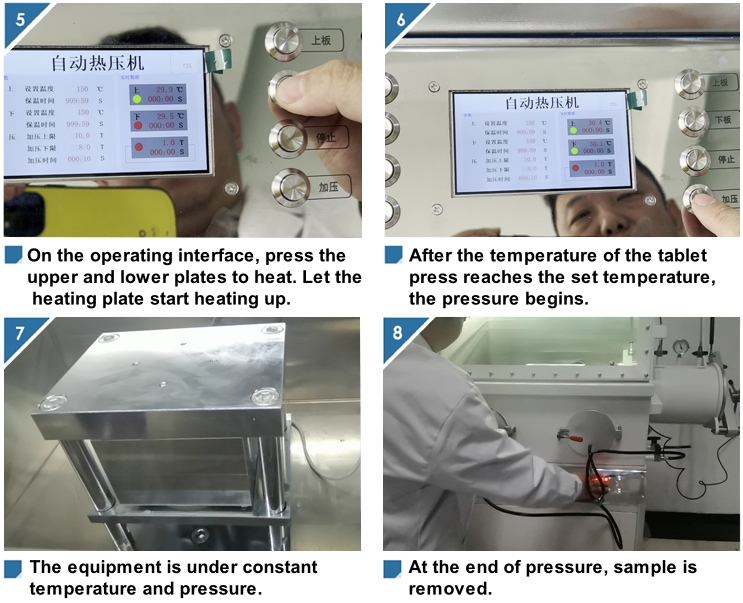

Operation procedure

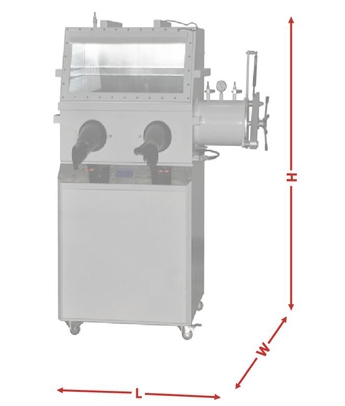

Technical parameter

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
