Perovskite Solar Cell Research Equipment Line

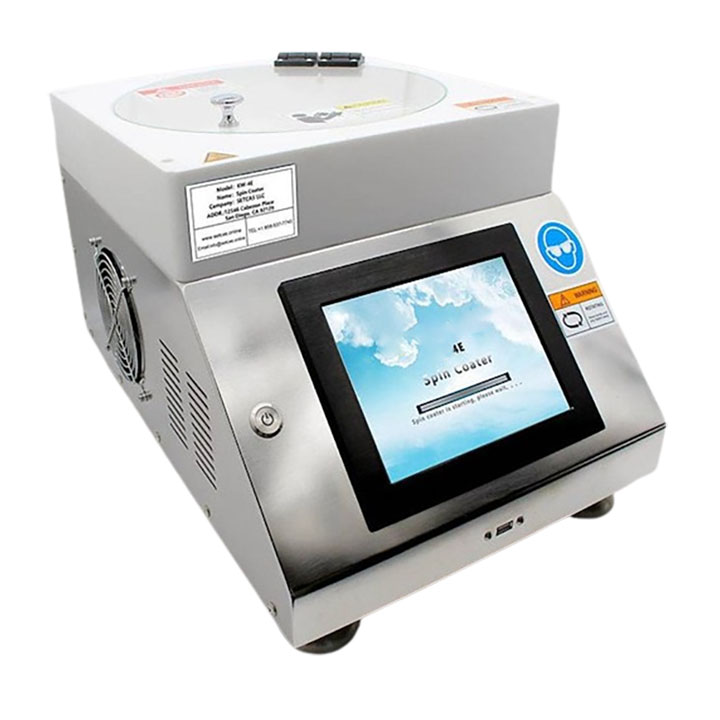

Lab 200C Vacuum Spin Coater with Heating Function

Lab 200C Vacuum Spin Coater with Heating Function

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

  • Item No.:

    TMAX-4E
  • Certificate:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
Product Details

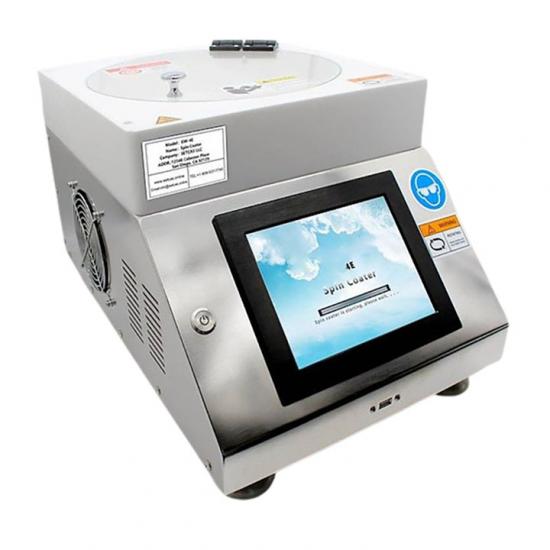

Lab 200C Vacuum Spin Coater with Heating Function


Spin Coater


Key Features:

1. With heating function: room temperature -200℃

2. With Bluetooth communication function and supporting remote communication  software (only supported by KW-4E-I and above models)

3. Can be equipped with 2-4 channels of automatic glue dispensing and developing function (only supported by KW-4E-II and above models)

4. The adsorption force is adjustable, the adsorption force is displayed in real time, and it has leakage recovery function (only supported by KW-4E-III model)

5. The chamber is made of PTFE material

6. Spin coating can be reversed and forwarded

7. Motor imported from Germany


Spin Coater Specifications

Substrate size

5-200mmStandard/5-600mm Optional

Speed range

10-12000RPM(Standard),11-10-20000RPM(Optional)

Acceleration range

10-30000RPM/S,Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Heating range

Room temperature -200℃

Heating Speed

to 100℃ (1S) to 200℃(2S)

Cooling rate to room temperature

2 second

Human machine interface

8-inch touch screen

Communication interface

USB (standard) / RS485 (standard) /Bluetooth (Optional)

Turn around

Support forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Vacuum Pump

SC-550V

Set data

Unlimited groups data,10 speeds per group (standard)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

default with power-down protection

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

650W

Pump power

350W

Dimensions(Spin Coater)

340mm(W)X500mm(D)X250mm(H)

Chamber material

Overall PTFE material

Weight(Spin Coater)

18KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year
