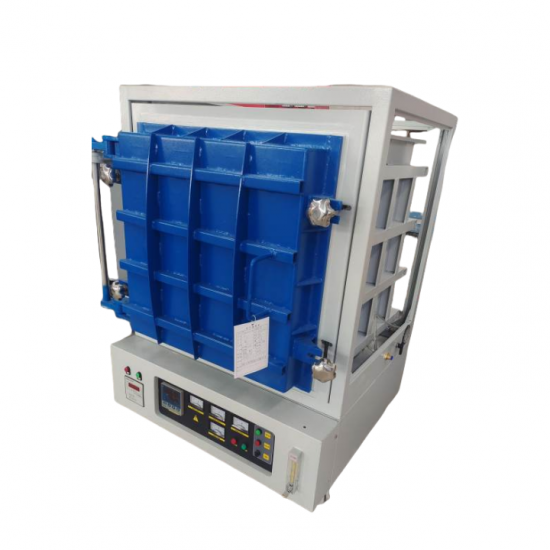

Main parameter

PN: SV2-9-18TP100P, SV2-4-18TP100P

Max.Temp:1800C

Working temperature:0-1600C

Chamber size:

D300*W200*H200mm(SV2-9-18TP100P)

D200*W150*H150mm(SV2-4-18TP100P)

Heating rate:0~10 Degree/Min

Power:9kw(SV2-9-18TP100P), 4kw(SV2-4-18TP100P)

Voltage:

380V,2 phase 50/60HZ(SV2-9-18TP100P)

220V,singlephase 50/60HZ(SV2-4-18TP100P)

Heating element:Regular Mosi2 heating element

Thermocouple:B type

Temperature accuracy: ±1℃

Max.vacuum:100pa

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with ball valves. Equipped with a vacuum pump.

Vacuum system

2X-30 Mechanical pump(SV2-9-18TP100P)

2X-15 Mechanical pump(SV2-4-18TP100P)

The ultimate vacuum of the pump is 10-1Pa

Max.vacuum of furnace chamber:100Pa

KF 40 fitting connection with Digital display vacuum gauge

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts Reinforced double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.The outer temperature is less than 60 degrees

Sealing way

Furnace door adopts integral plane milling, silica gel strip embedded seal, with strong sealing, easy to open and close furnace door

Temperature controlling

Adopt international advanced Yudian temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection,and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible clip

1 pc

User manual

1 book

Door block

1 pc

Vacuum pump

1set
