Lab 1200C Well Type High Vacuum Furnace with Water Chiller

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-1200C
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Lab 1200C Well Type High Vacuum Furnace with Water Chiller

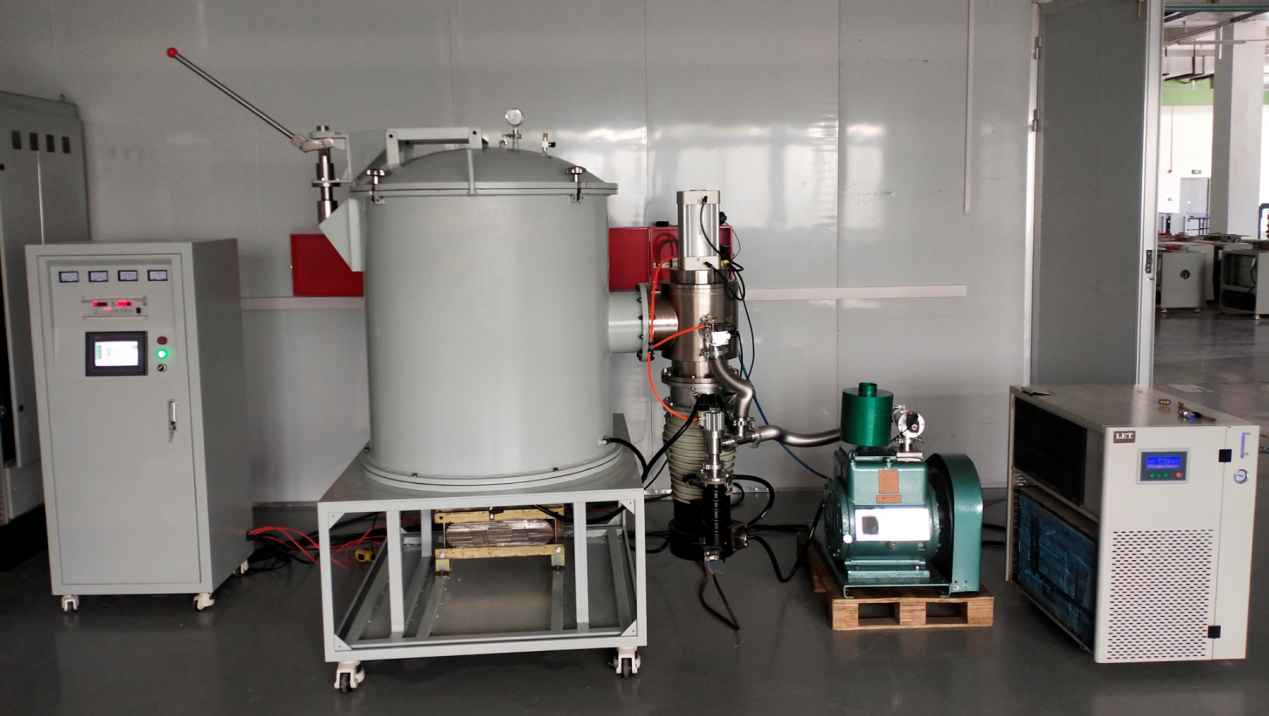

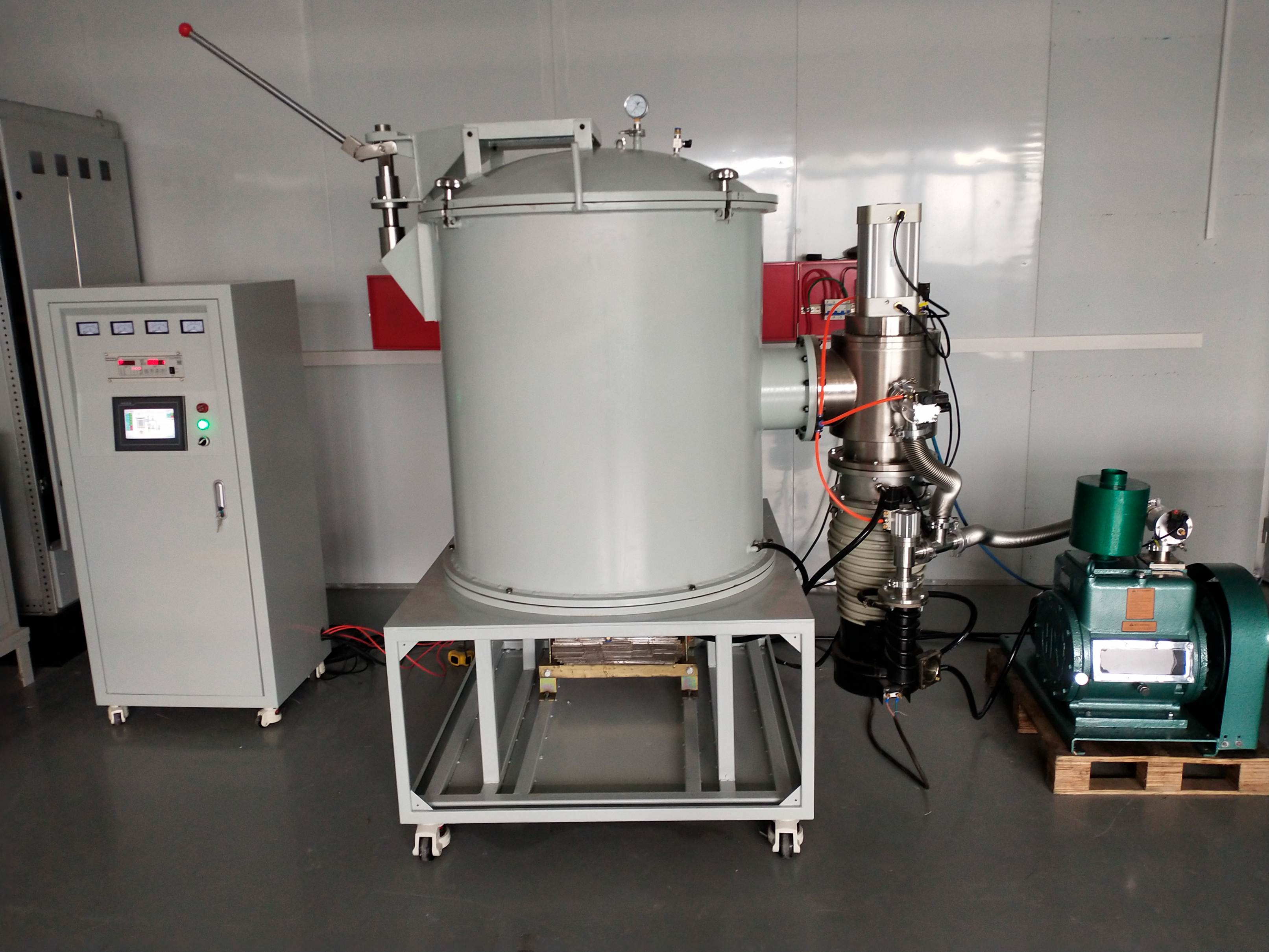

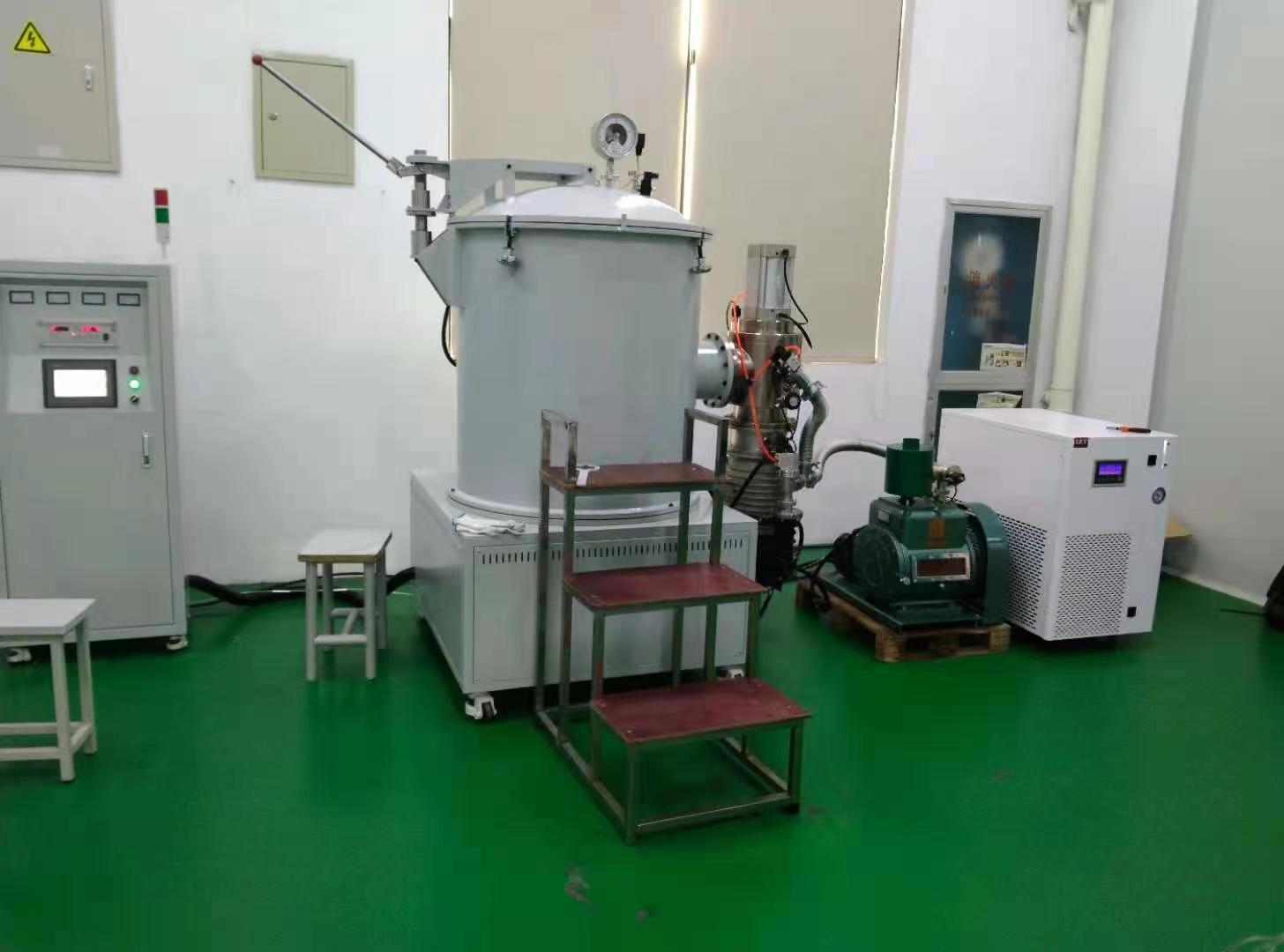

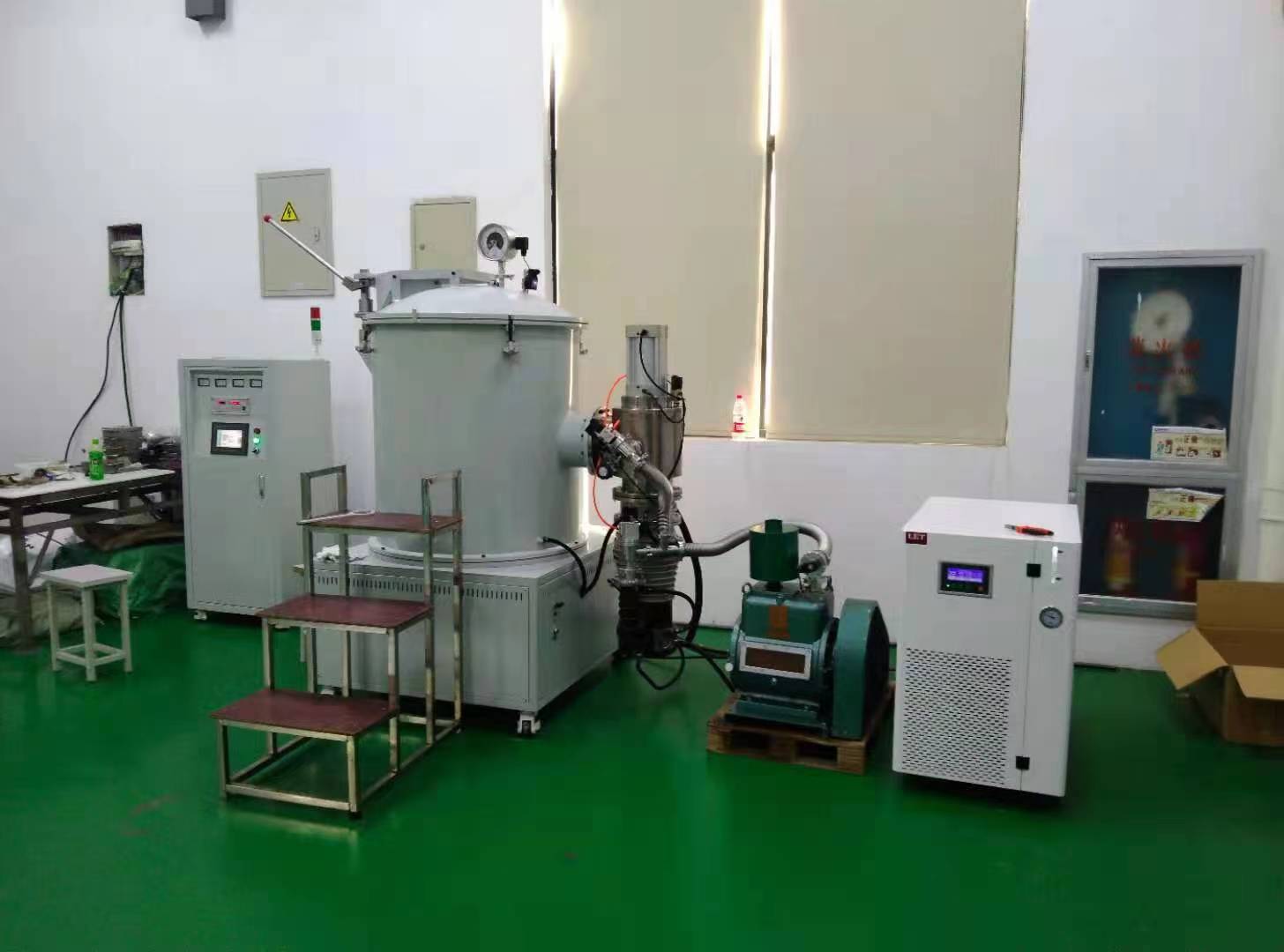

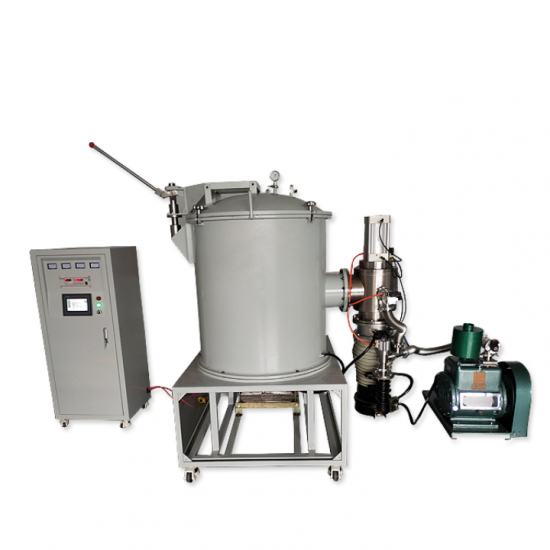

The picture is just for reference

The equipment introduction: The high vacuum furnace is widely used for heating treatment of metal materials in low vacuum,recursive,protective atmosphere,also can used for heating treatment of special materials,such as carbonization process of carbon products.The furnace chamber is ceramic fiber with excellent thermal insulation;Vacuum reservoir with water cooling system.

Technical Parameters
	Max.design temperature：	1200C
	Working temperature：	≤1100C
	Inner chamber size：	D200W200H760
	Power	14kw（subject to design）
	Thermocouple	K type
	Max.vacuum	6.65*10-3 Pa
	Furnace chamber material：	Chamber material is light alumina ceramic fiber,module, reasonable design, good heat preservation performance, saving energy. (Fireproof layer adopts vacuum forming ceramic fiber insulation layer adopts ceramic fiber )
	Furnace shell	Internal stainless steel, external high strength carbon steel, external electrostatic spray, beautiful and generous
	Surface temperature	ouble layer water cooling structure, surface temperature ≤50℃.
	Voltage：	380V 3 phase 50HZ
	Heating element：	Resistance wire
	Temperature accuracy：	±1℃
	Heating rate：	≤20℃/min
	Door type	Top loading
	Heating medium	In vacuum, direct thermal radiation heating
	Advantage	Low heat absorption, fast heating, energy saving
	Temperature control	Adopt Intelligent touch screen temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe.
Vacuum system	Double layer water-cooled inner stainless steel outer carbon steel vacuum tank, front and rear semicircle head. Built-in silicone ring seal, hand wheel lock.
	Max.vacuum: 6.65*10-3 Pa(cold state)
	The vacuum system consists of front-stage rotary vane pump and diffusion pump.
	The vacuum display uses a Compound vacuum gauge, which is accurately measured by a resistance gauge and Ionization gauge .
	Vacuum tank and vacuum pump connected with bellows, manual flapper valve control ect.
Water chiller (Specific specifications subject to design)	Cooling capacity:8.5KW Water temperature control range 5~35℃ adjustable Temperature control mode constant temperature/start and stop adjustable Temperature control accuracy ±0.5℃/±3℃ adjustable Water tank capacity 50L Inlet and outlet size DN25 Power supply 380V 50Hz Total power 3KW
Warranty	One-year warranty period, lifetime maintenance, (excluding related consumables, such as furnace heater, seals, etc.)
Standard Package Accessories:
Vacuum furnace			1 set
High temperature gloves			1 pair
Crucible clip			1 pc
User manual			1 book

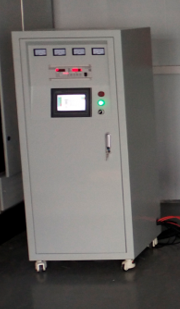

Control cabinet			1 set
Cooling system			1 set
Vacuum system			1 set
Small tools			1 set
