Main parameter

PN: SK2V-7-14TPD4

Max.Temp: 1400C

Working temperature:0-1300C

Tube diameter:100mm inner diameter:90mm

The heating zone length:400mm

Tube material:Alumina tube

Heating rate:0~10 Degree/Min

Heating element:Sic heater

Thermocouple:S type

Temperature accuracy: ±1℃

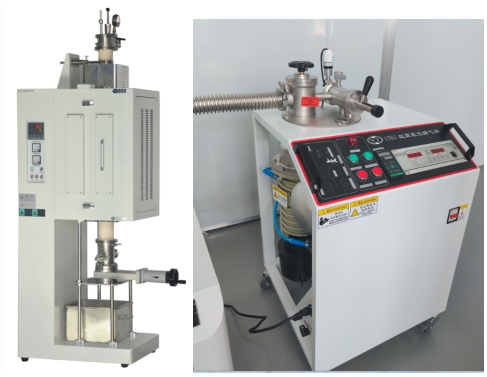

Sample hanging design

The top flange is installed with an electromagnet sample hanging device. Click the control button of the electromagnetic hanging device to release the sample into the quenching box. The sample and the suspension wire fall into the quenching box together;

The bottom flange is connected to a cartridge valve (manual operation).

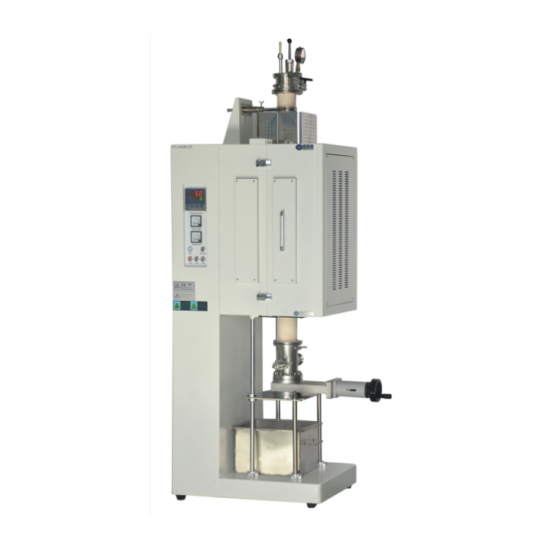

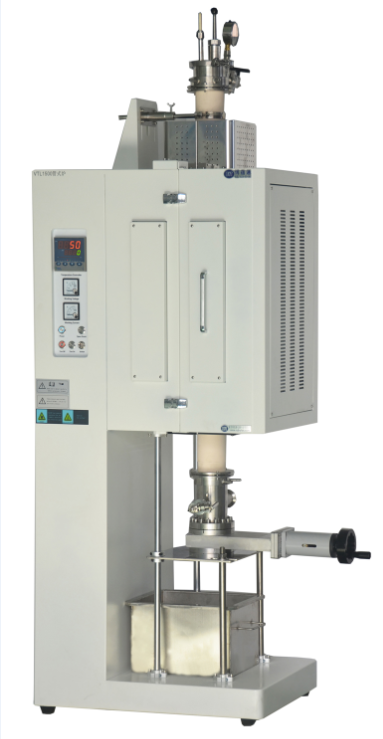

Quenching tank

Water quenching, the tank is placed under the furnace, no need to seal, the top sample is released and falls into the quenching tank

Sealing way

Adopt 304 water cooling stainless steel , Prevent excessive temperature,with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with ball valves.

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

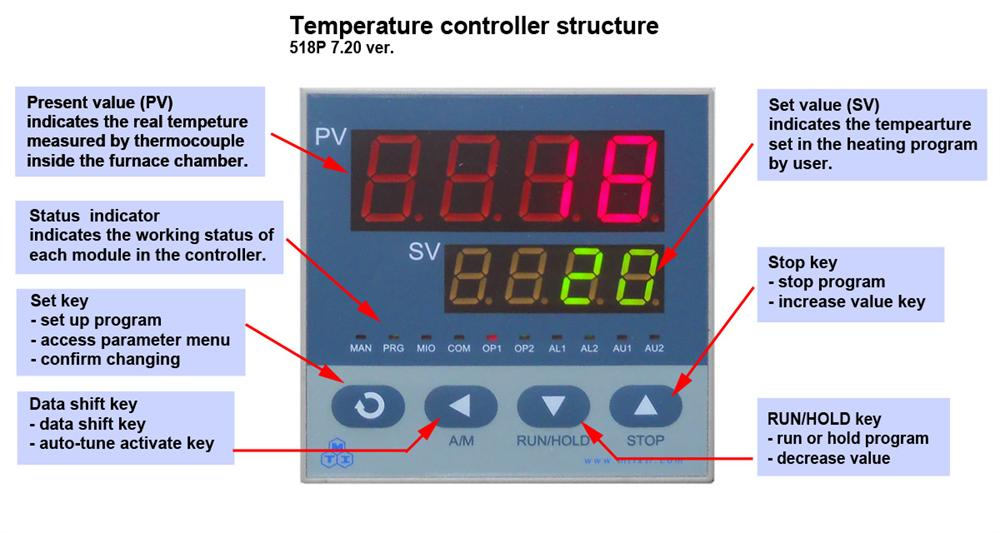

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

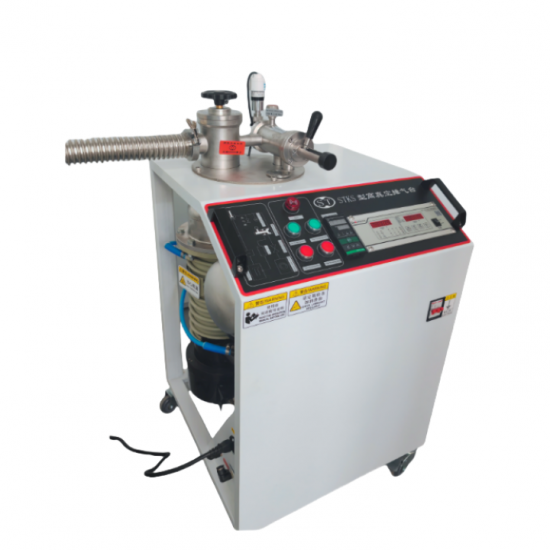

Vacuum pump

High vacuum molecular pump set: Diffusion pump unit

Vacuum degree : 6*10-2Pa

KF25 quick connect, stainless steel bellows, manual flapper valve and flange, vacuum pump

Water Chiller connect vacuum pump

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and Alumina tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

(Not including alumina tube holder,tank)

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

Alumina tube

1 pcs

Stainless steel water cooled flange

1 set

10mm Air pipe

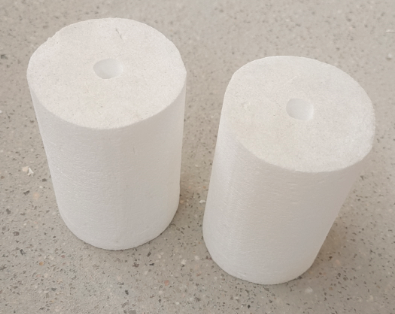

Tube stopper

2pcs

User manual

1 book

Vacuum pump set

1 set
