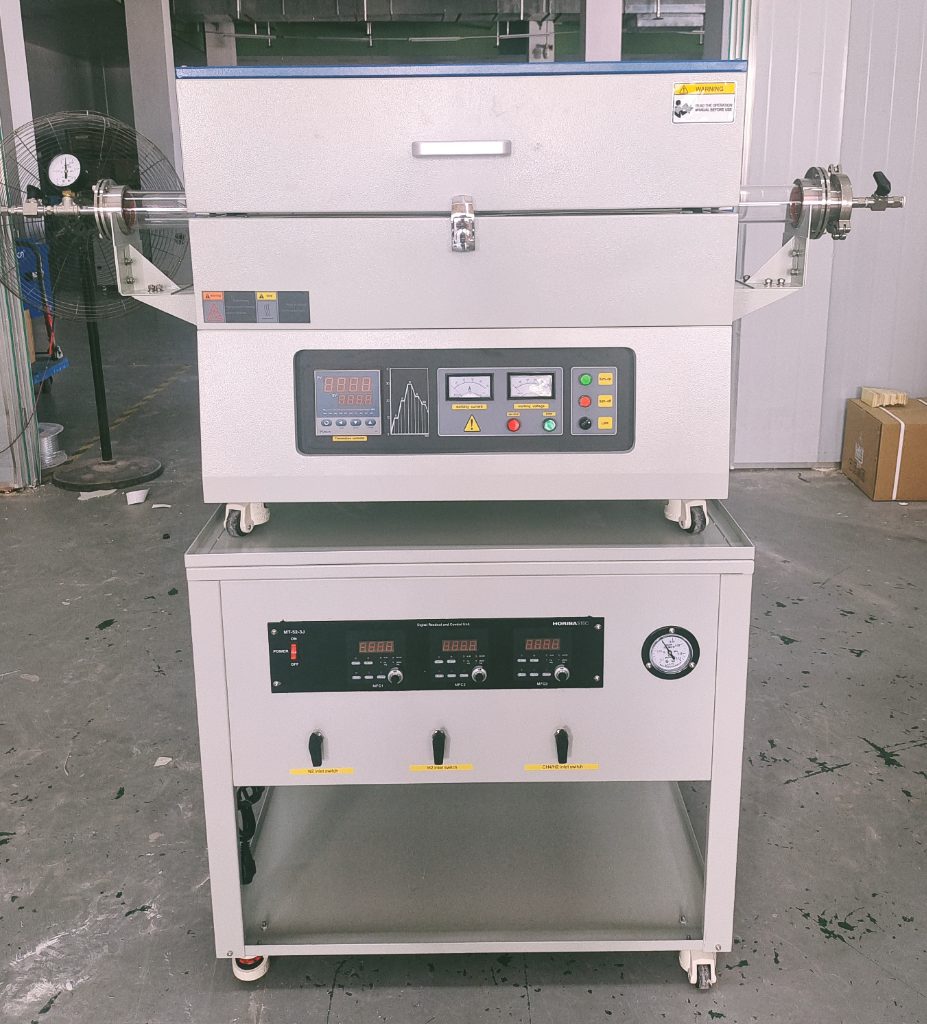

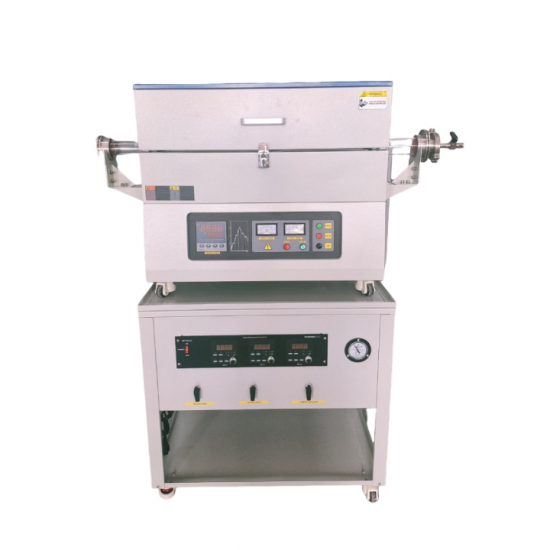

Main parameter

PN: SK2-12TPCVD

Max.Temp: 1200C

Working temperature:0-1100C

Tube diameter: 150mm

The heating zone length: 350+500+350MM

Length of constant temperature zone:450mm(±5C)

Tube material:Quartz tube

Voltage:220V 50hz

Heating rate:0~20 Degree/Min

Furnace Max.vacuum:10Pa

Temperature accuracy: ±1℃

Heater:Resistance wire

Thermocouple:K type

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

1.MFC gas system:

2.Internally equipped with high-precision digital display mass flow meter for accurate control of gas flow

3. Gas flow range is 0-500SCCm with an error of 0.02%

4.Outlet vacuum pressure gauge, built-in gas mixing system,

5. Stainless steel needle valve meter, standard double ferrule joint

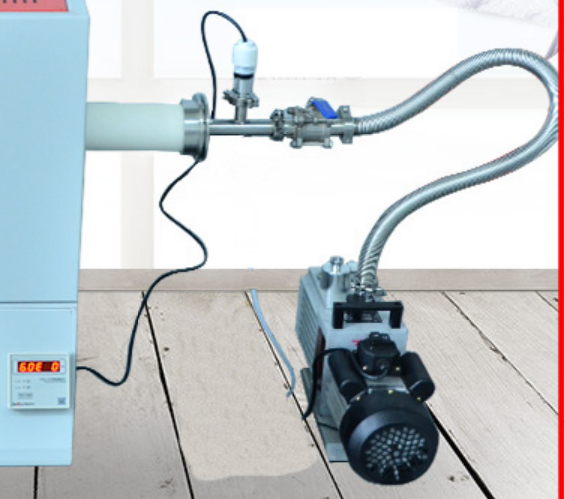

Vacuum system

Vacuum pump: Two-stage rotary vane pump

Vacuum pump ultimate vacuum:10-1Pa

Furnace vacuum:10Pa

KF25 quick connect, vacuum bellows, vacuum gauge ect

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

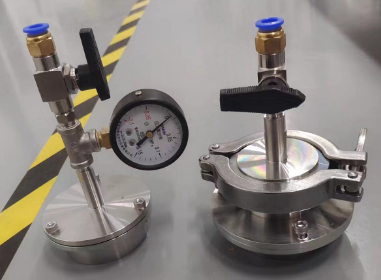

Sealing way

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

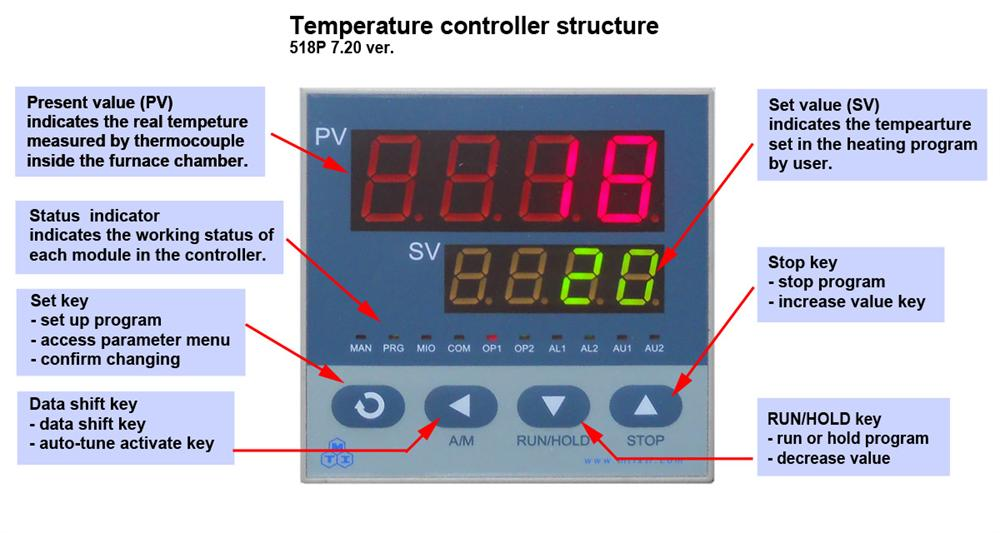

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

Quartz tube

1pc

Stainless steel flange

1 set

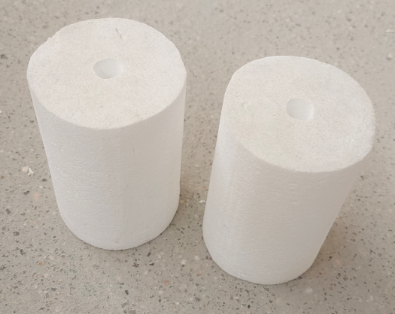

Tube stopper

2pcs

10mm Air pipe

User manual

1 book

Vacuum pump unit

1 set
