Item No.:
TMAX-4E-IIICertificate:
CE CertifiedWarranty:

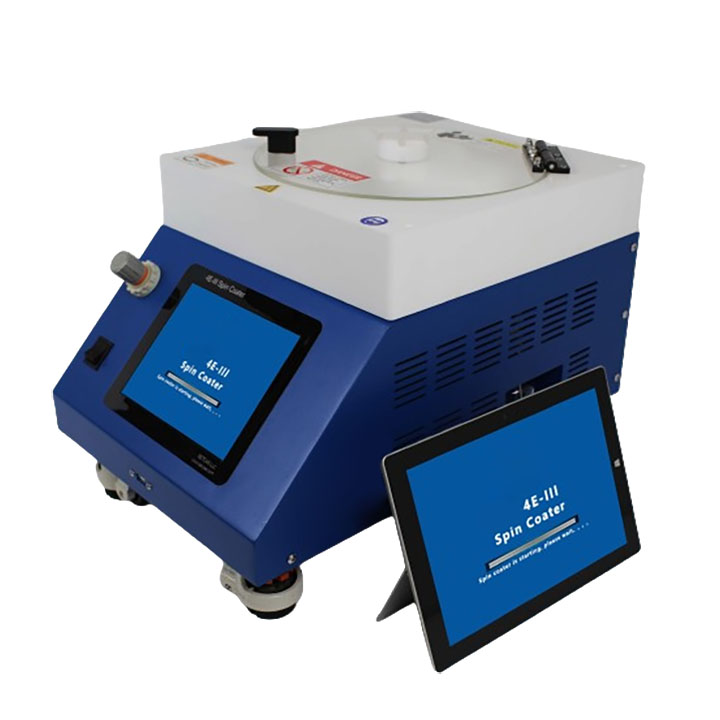

1 yearEconomic 200C Vacuum Spin Coating Machine with 1 Second Heating to 100℃
Key Features:
1. With heating function: room temperature -200℃
2. With Bluetooth communication function and supporting remote communication software (only supported by KW-4E-I and above models)
3. Can be equipped with 4 channels of automatic glue dispensing and developing function
4. The adsorption force is adjustable, the adsorption force is displayed in real time, and it has leakage recovery function (only supported by KW-4E-III model)
5. The chamber is made of polytetrafluoroethylene PTFE material
6. Spin coating can be reversed and forwarded
7. Motor imported from Germany
Spin Coater Specifications
Glue coating and developing function |
4-way glue development (standard) |
Substrate size |
5-200mm( Standard)/5-600mm (Optional) |
Speed range |
10- 12000RPM( Standard) 11- 10-20000RPM( Optional) |
Acceleration range |
10-30000RPM/S, Adjustable |
Motor speed stability |
±1RPM |
Spin coating uniformity |
±1% |
Heating range |
Room temperature -200℃ |
Heating Speed |
to 100℃ (1S) to 200℃(2S) |
Cooling rate to room temperature |
2 second |
Human machine interface |
8-inch touch screen |
Communication interface |
USB (standard) / RS485 (standard) /Bluetooth (Optional) With Bluetooth communication, free PC communication software, which can remotely control the glue leveling machine |
Turn around |
Support forward and reverse |
Stylus |
Stylus BAMBOO resistance pen (standard) |
Vacuum Pump |
SC-550V |
Set data |
Unlimited groups data,, 10 speeds per group (standard) |
Seconds per period |
0- 10000s |
Storage data |
Unlimited data |
Data protection |
default with power-down protection |
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
Pumping speed |
≥60L/MIN |
Max vacuum |
-85KPA |
Sound Level |
≤55db |
Spin coater power |
650W |
Pump power |
350W |
Dimensions(Spin Coater) |
340mm(W)X500mm(D)X250mm(H) |
Chamber material |
Overall PTFE material |
Weight(Spin Coater) |
18KG |
Weight(Pump) |
9KG |
Relative humidity |
< 85% |
Ambient temperature |
0-40℃ |
Warranty |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
