Laboratory Acceleration Spin Coating Machine for Experimental Research

Contact Person：Gilia Ding

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna

Product Details

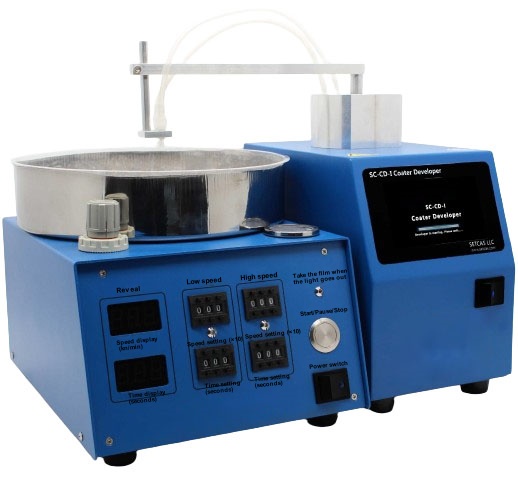

Laboratory Acceleration Spin Coating Machine for Experimental Research

Spin Coater

Key Features：

1. Prevent the process chemicals and solvents contact with the motor.

2. Support two user-defined program steps for each recipe.

3. Set speed and time with the keypad, convenient and accurate.

4. Single button control spin start/ pause/ reset and vacuum pump on/off.

5. Adjustable adsorption force, real-time display of suction force, suitable for flexible substrates

Spin Coater Specifications

Substrate size	5mm to 120mm（ 5 inches）
Plate holder type	Specially designed plate holder to prevent glue from entering
Speed range	50rpm to 10000rpm
Spin time	0s to 999s
Dual LED digital display	1. Speed display,2. Countdown time display.
Control method	Set speed and time with the keypad
Adjustable vacuum adsorption force	Adjustable adsorption force, real-time display of suction force, suitable for flexible substrates.
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	200W
Pump power	180W
Dimensions(Spin Coater)	210mm(W)X220mm(D)X160mm(H)
Dimensions (Pump)	185 x 100 x 210 mm (L x W x H)
Weight(Spin Coater)	10KG
Weight(Pump)	4.5KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year

Spin Coater

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
